Blower and A/C Controls (Automatic)

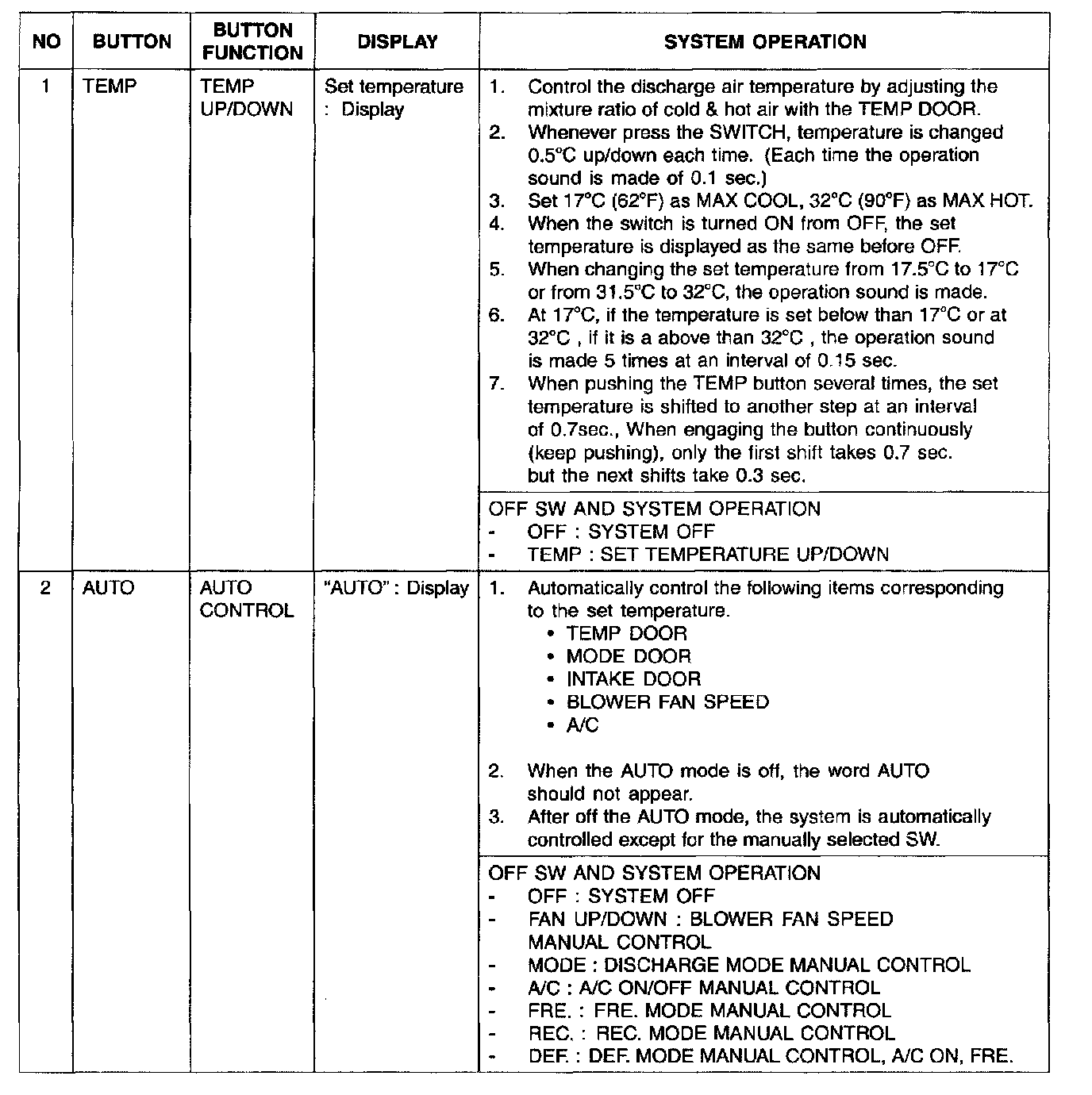

Buttion Control And Operation Logic Part 1:

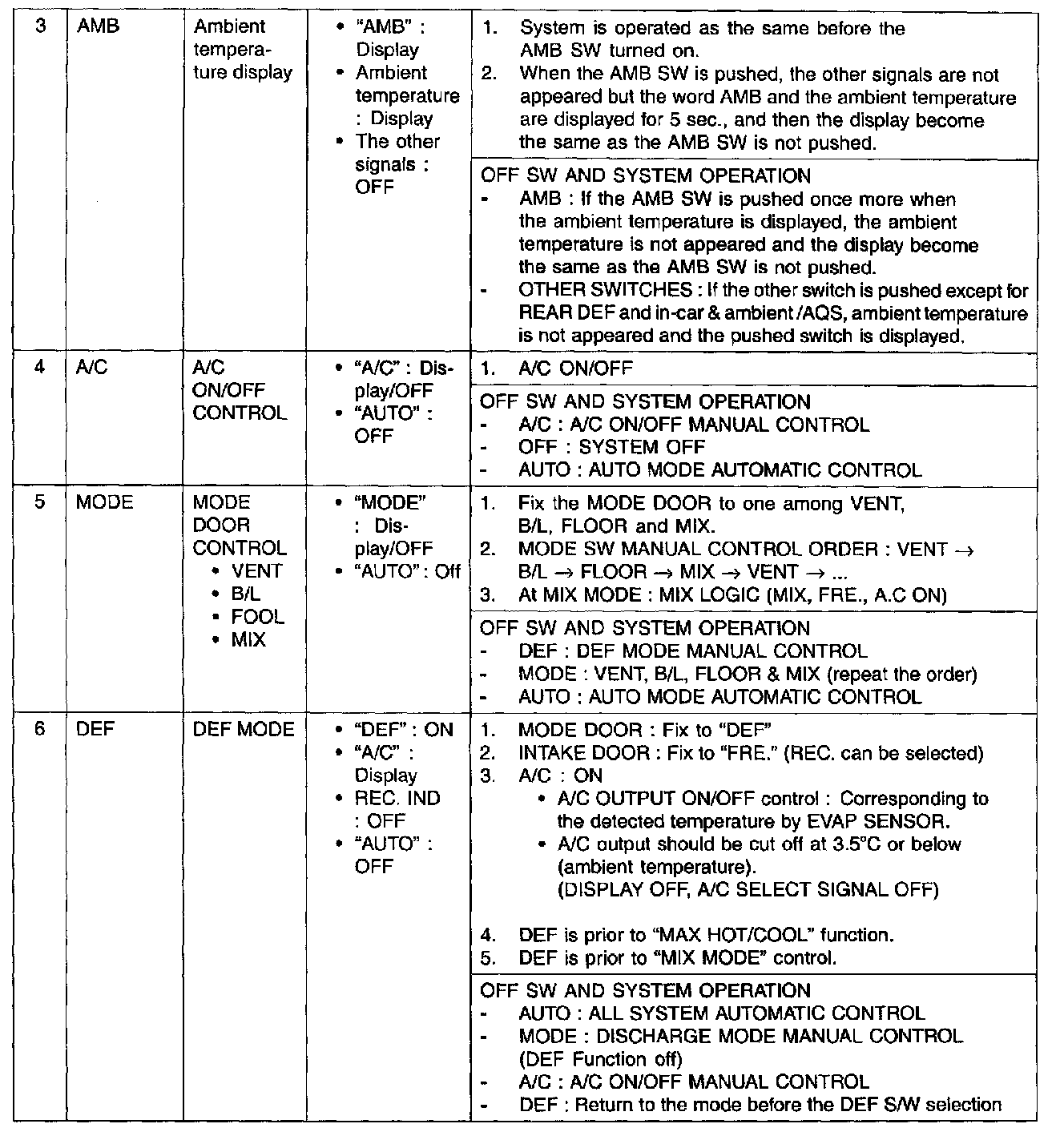

Buttion Control And Operation Logic Part 2:

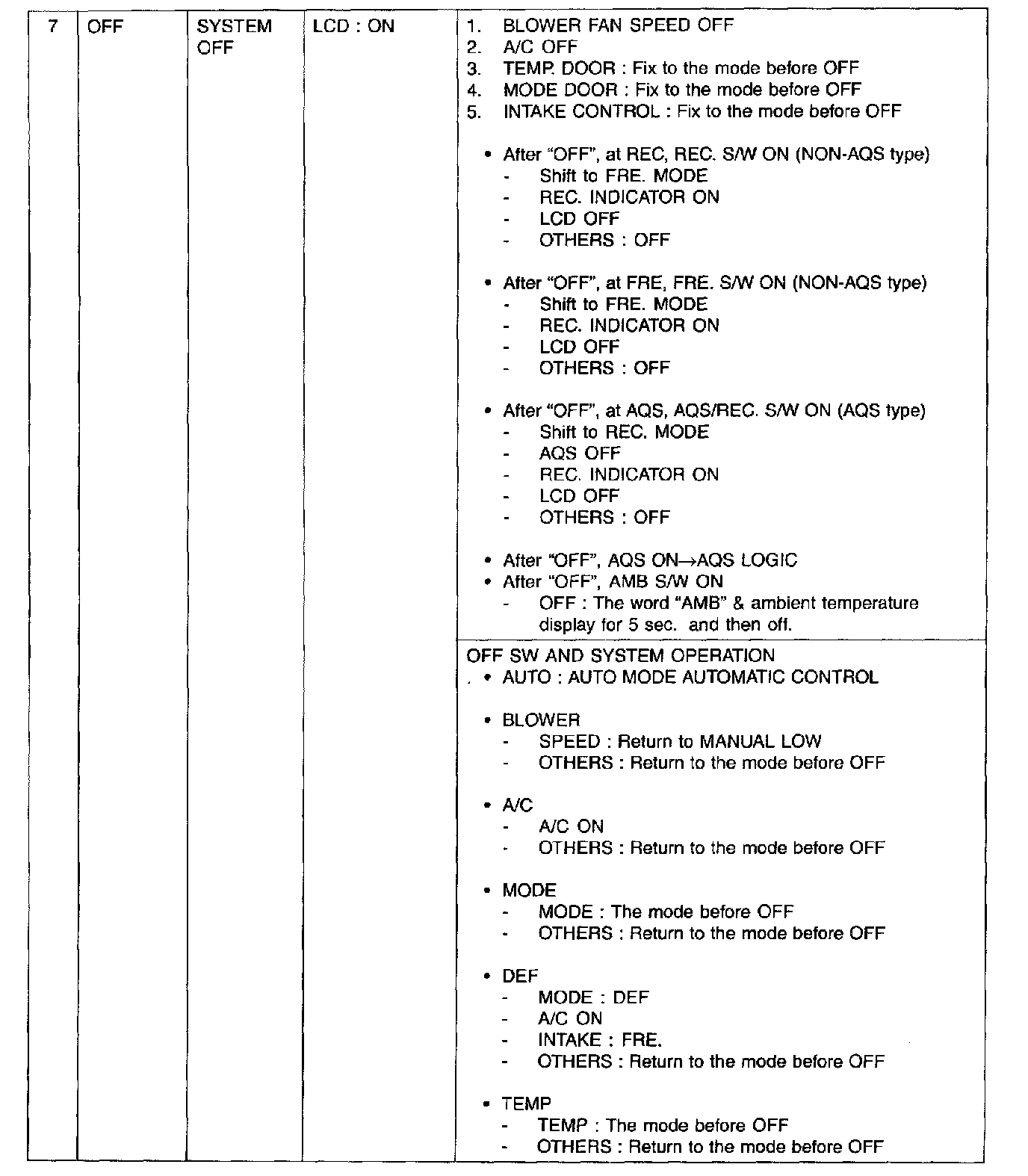

Buttion Control And Operation Logic Part 3:

Buttion Control And Operation Logic Part 4:

1. All buttons should be back-up.
2. Push the button, then the operation sound is made for 0.1 sec. (When a SAW is selected, and operation sound is made as well).

SYSTEM CONTROL FEATURES

SIGNAL I/0 FOR EACH CONTROL FEATURE

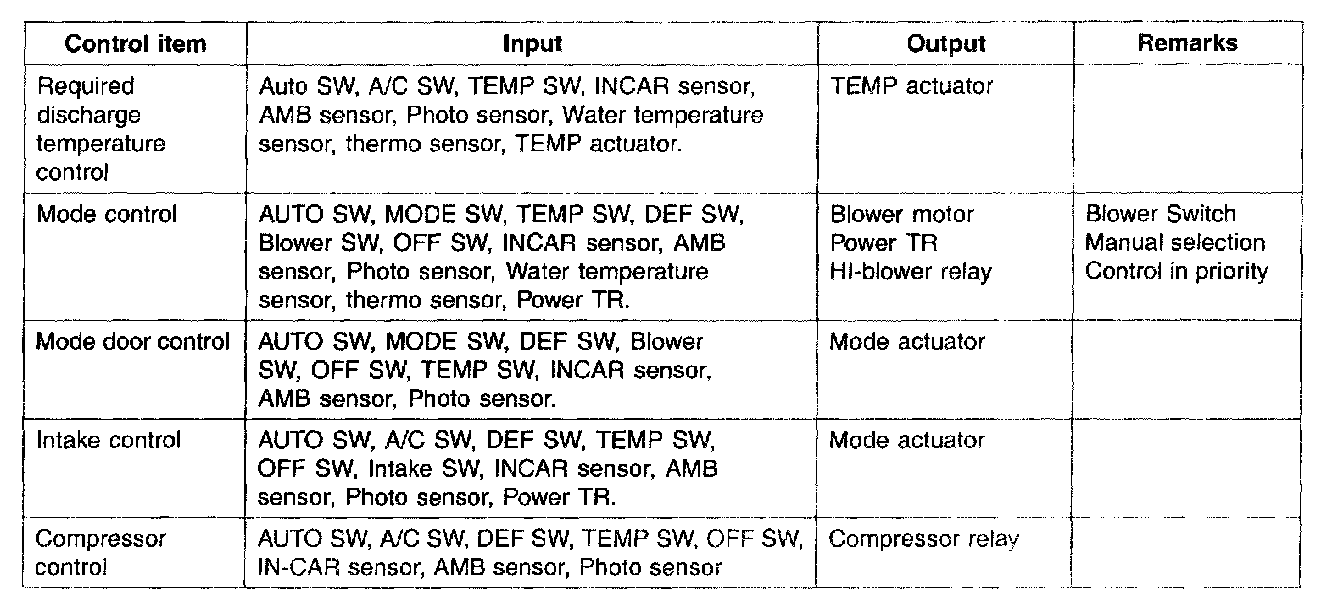

Signal I/O For Each Control Feature:

- During mode control the A/C may operate during DEF or MIX mode. In order to enable dehumidification, the driver may select A/C OFF during the A/C on condition.

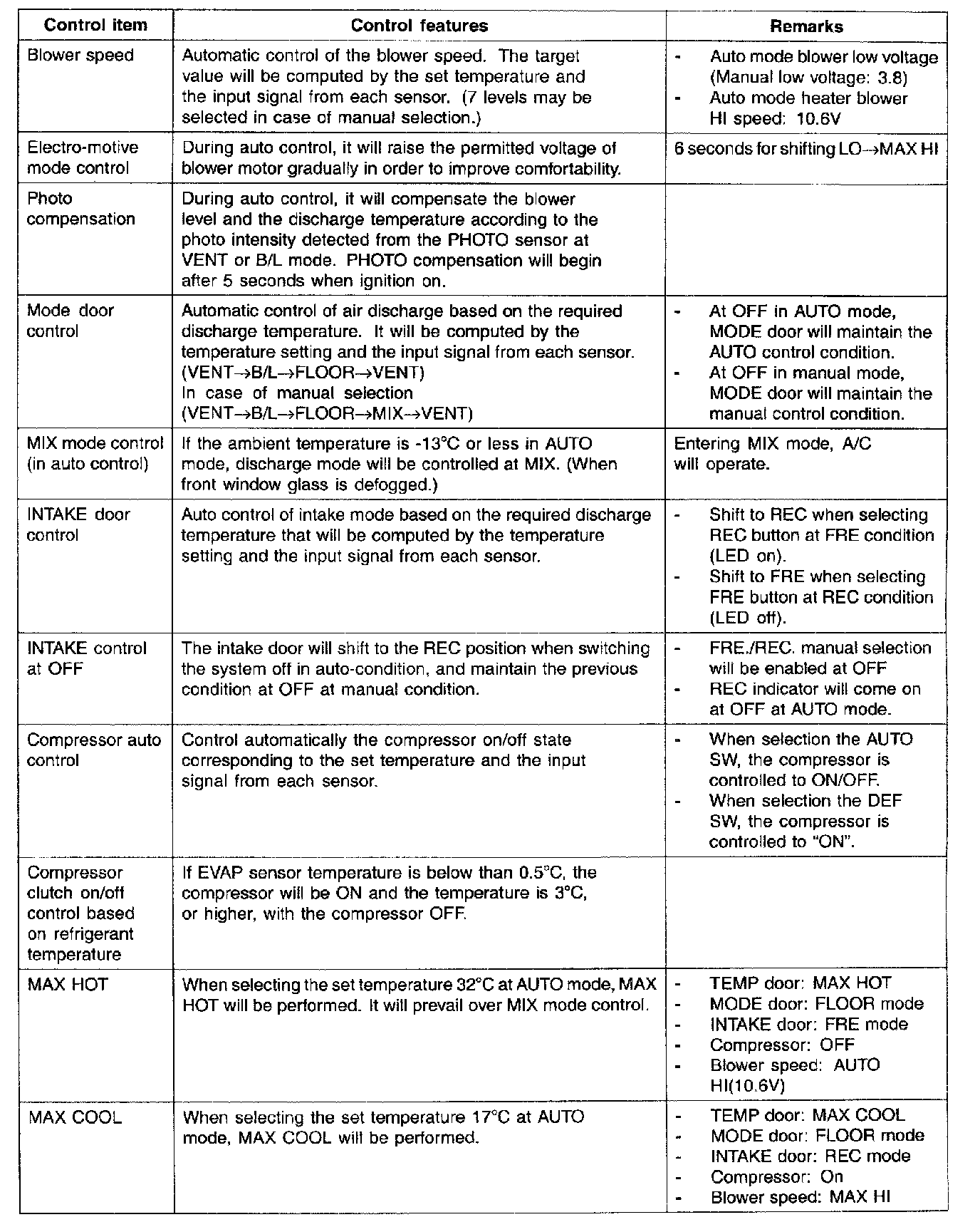

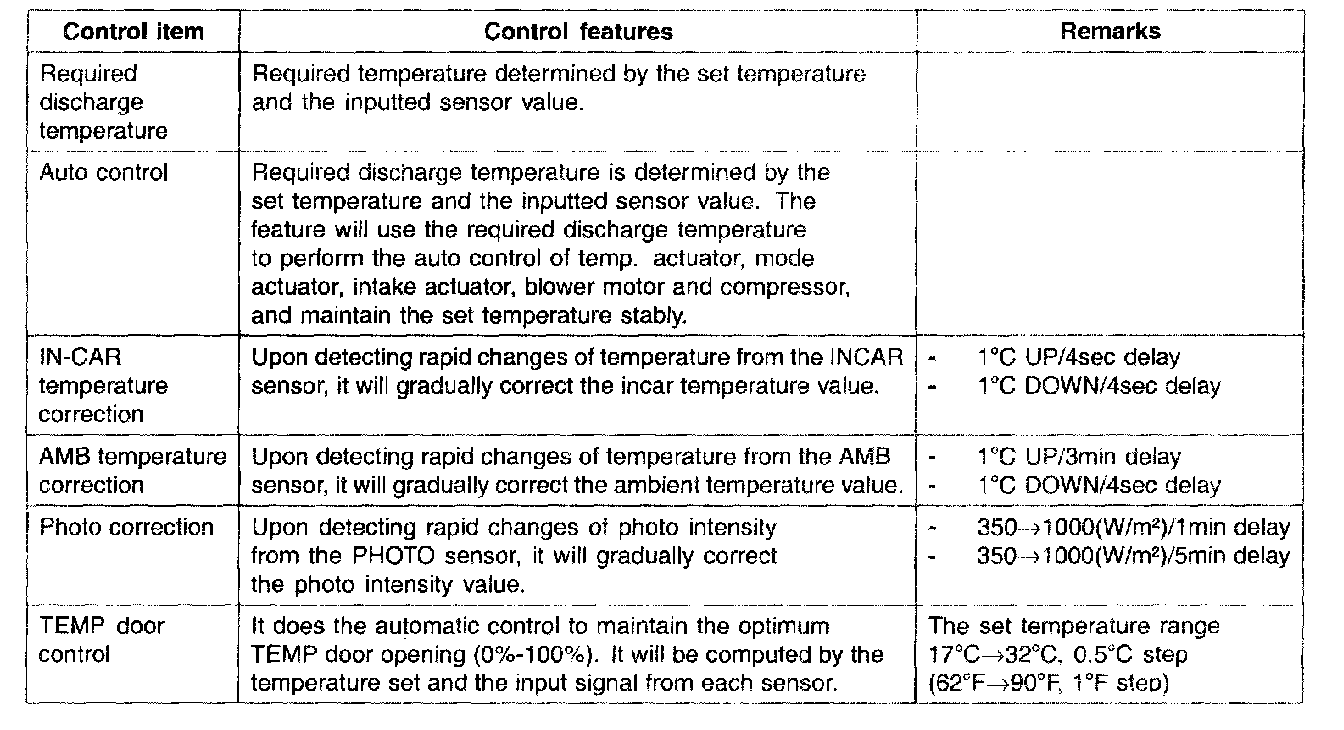

Control Specification Part 1:

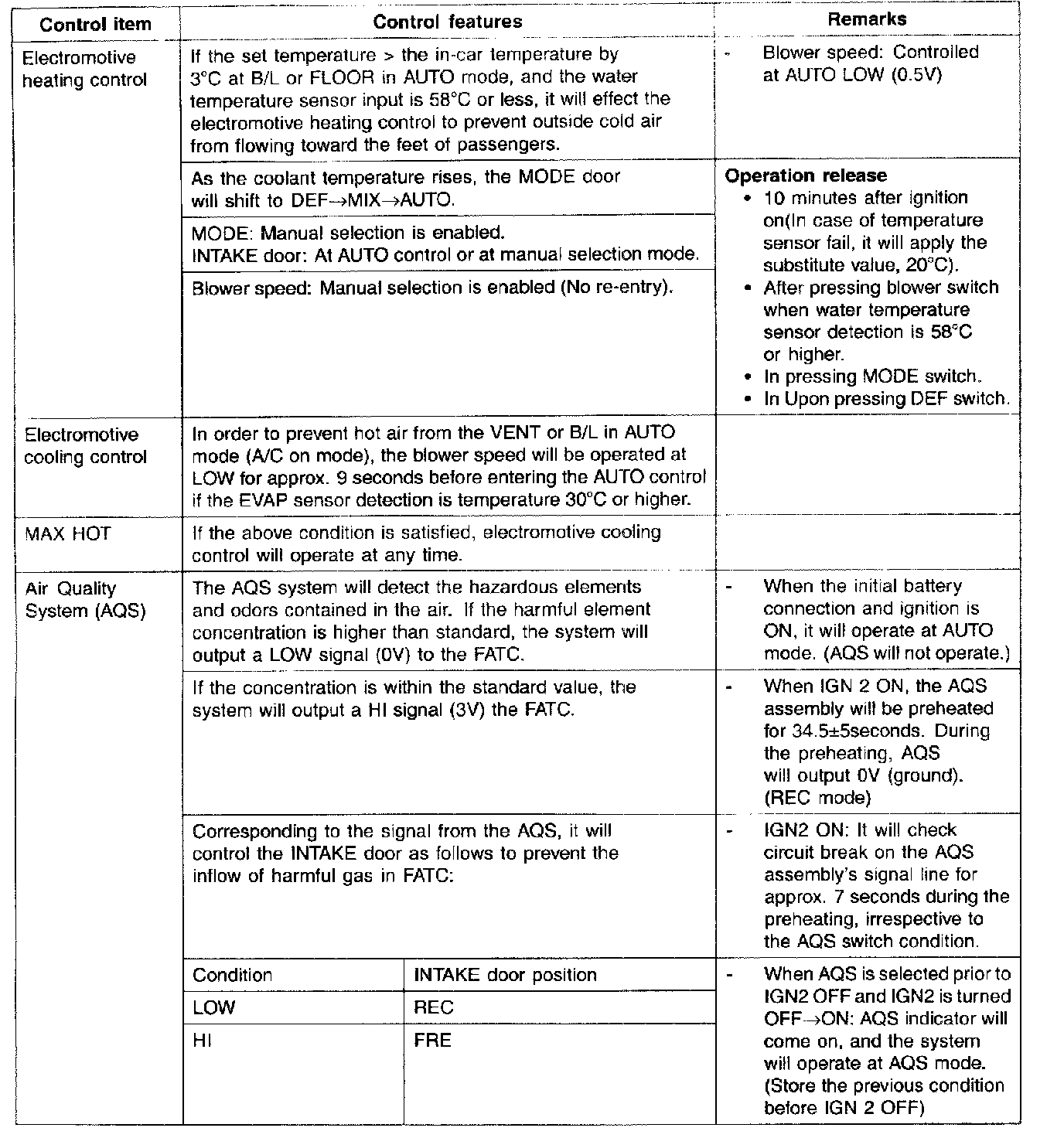

Control Specification Part 2:

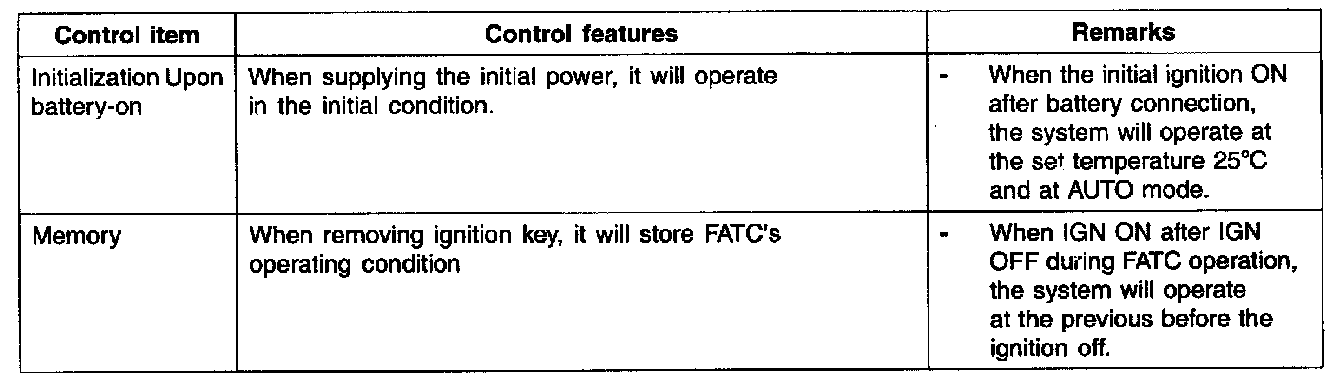

Control Specification Part 3:

Control Specification Part 4:

CONTROL SPECIFICATION
