Checking Clutch Air Gap

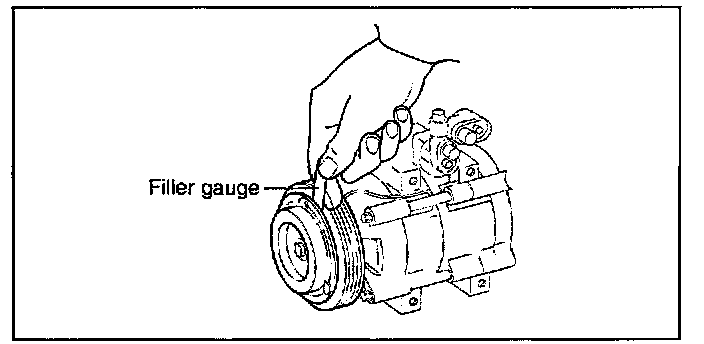

1. Check clutch air gap between the clutch hub and the pulley contact surface using a filler gauge.
Clutch air gap: 0.05-0.08mm

2. Check gaps around the pulley at 3 points.




3. If the clutch air gap is outside the normal range, correct the air gap into the normal range using a shim of the proper size.
