Engine - Camshaft Timing Chain Timing Correction

Group
20 - ENGINE
MECHANICAL

Number
02-20-006

Date
09-2002

Model
Elantra 2001-2002 and Tiburon 2003

Subject
CAMSHAFT TIMING CHAIN TIMING PROCEDURE
- SHOP MANUAL CORRECTION

DESCRIPTION:

This TSB provides shop manual corrections for the 2001-2002 Elantra and the 2003 Tiburon (2.0L) Shop Manuals. The following pages are affected:

^ Page EM-36 of the 2001 Elantra Shop Manual

^ Page EM-44 of the 2002 Elantra Shop Manual

^ Page EM-45 of the 2003 Tiburon Shop Manual

SYMPTOMS/CONDITIONS of a mistimed camshaft system (all must apply):

1. Camshafts have previously been removed from the engine.

2. Engine runs rough.

3. Vehicle sets P0340 (camshaft sensor code).

4. Camshaft sensor has been checked with a known, properly operating camshaft sensor.





CORRECT:

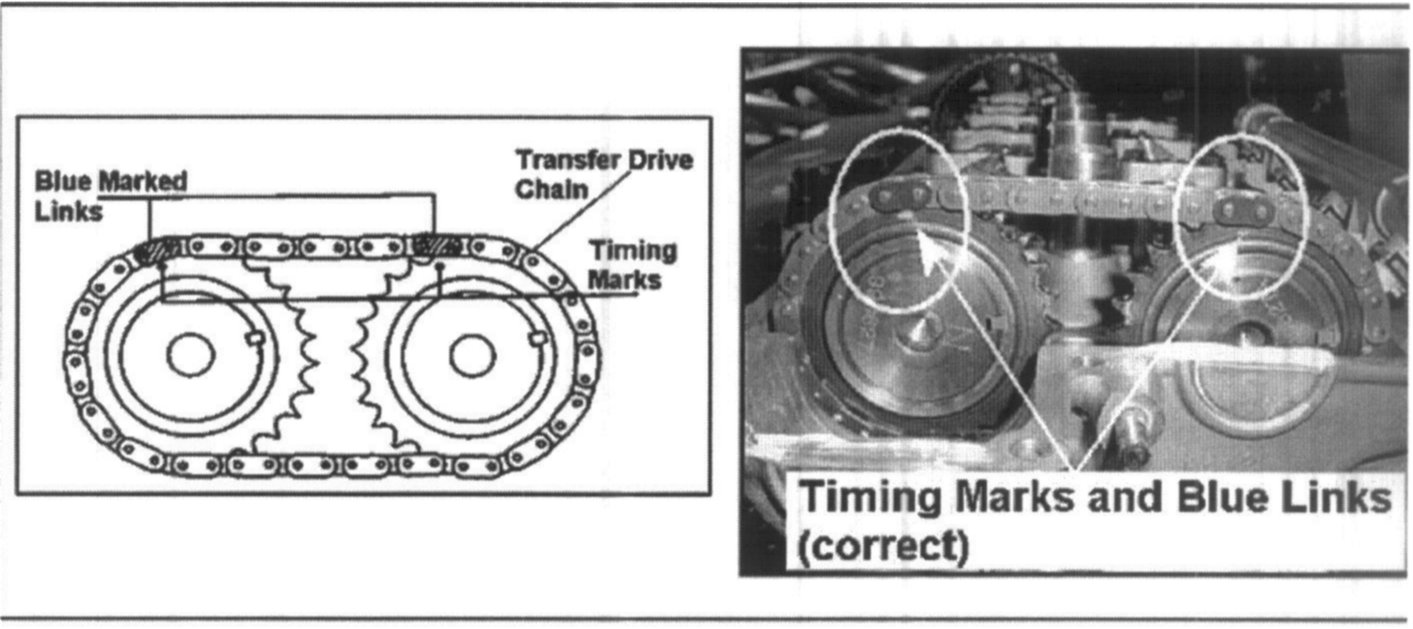

The diagram in the manuals should show the timing marks on both cam gears to be on the blue timing chain links.





INCORRECT:

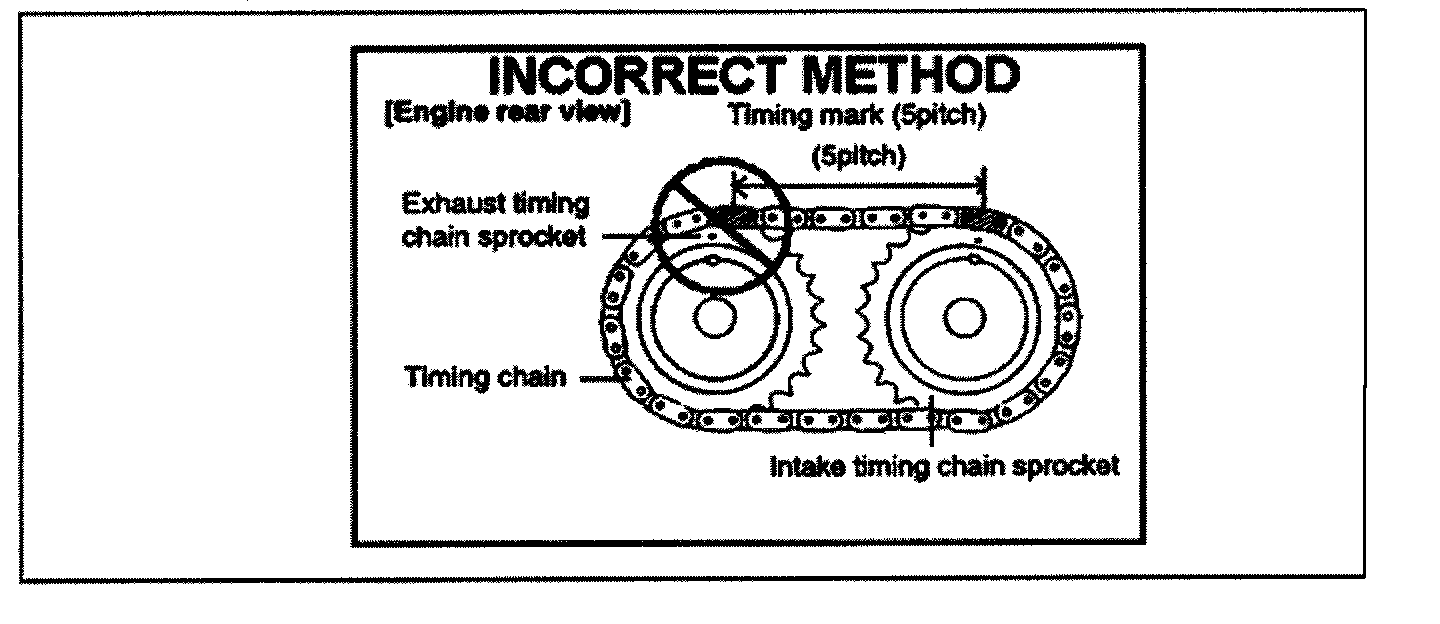

The incorrect diagram in the manuals (below) shows the left cam timing mark on the cam gear to be 1/2 link to the left of the blue timing link. This will cause the engine to run rough and set DTC P0340.
