Manual A/C

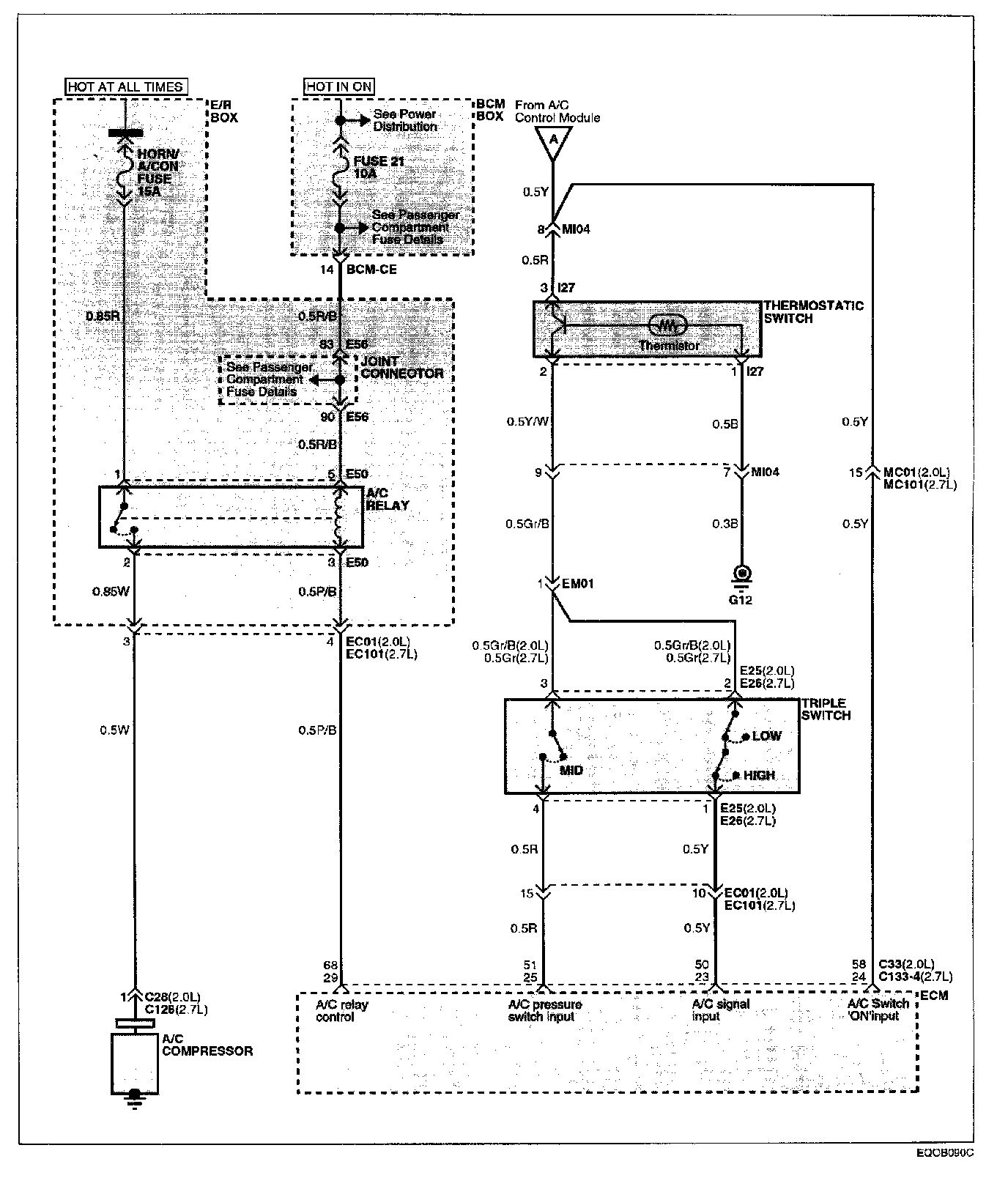

Schematic Diagram (Manual 1):

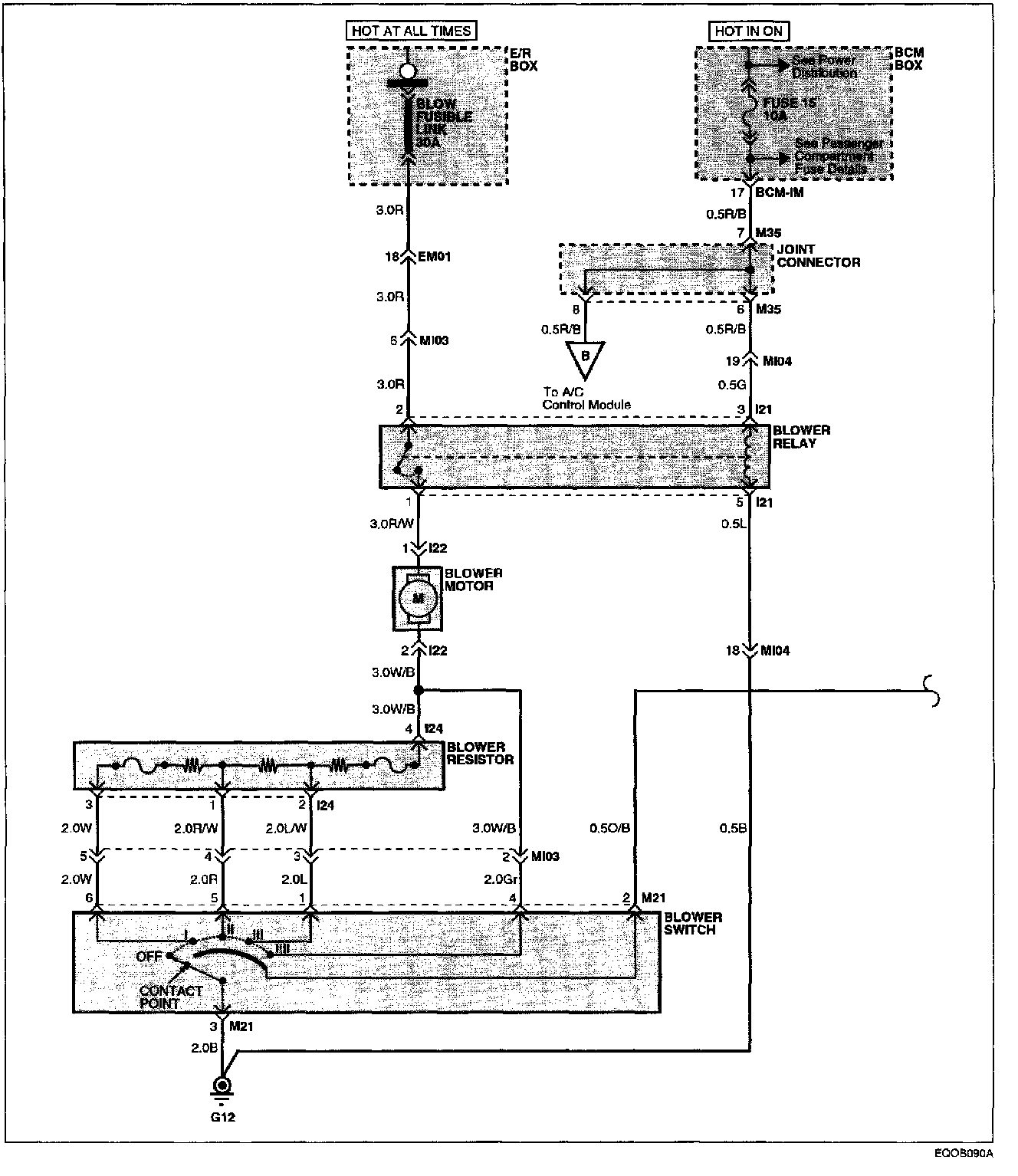

Schematic Diagram (Manual 2):



Schematic Diagram (Manual 3):
