Automatic A/C

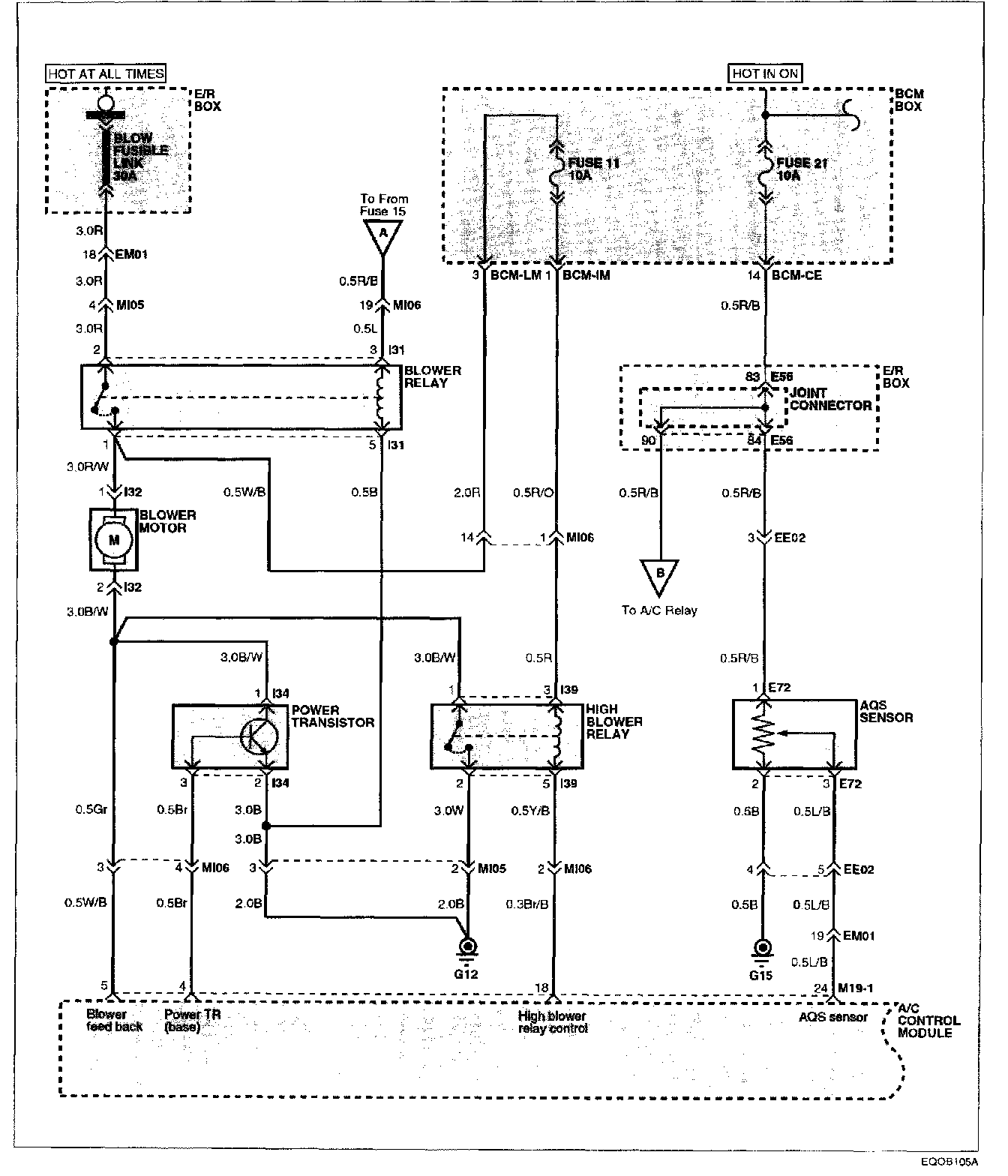

Schematic Diagram (Automatic 2):

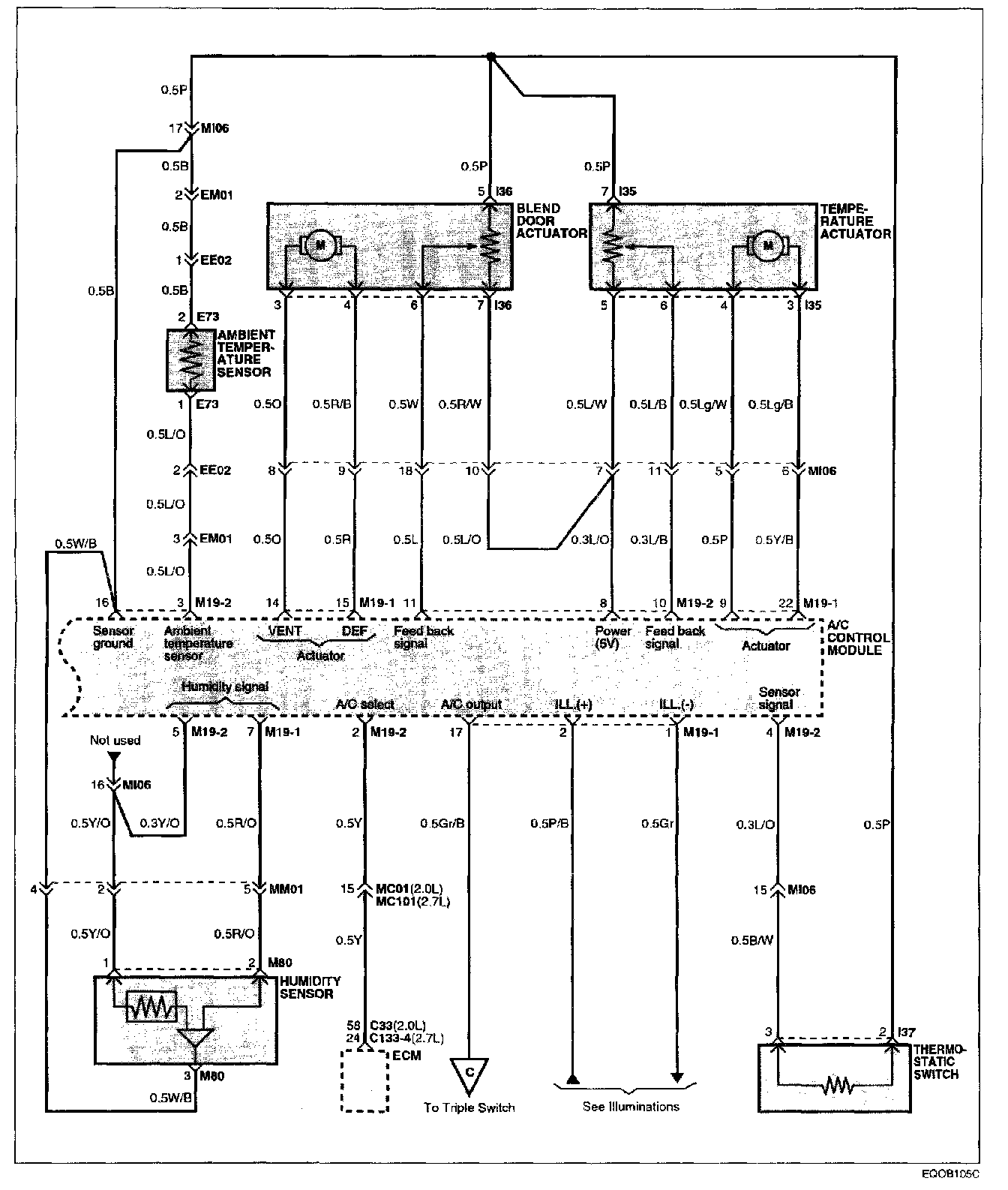

Schematic Diagram (Automatic 2):

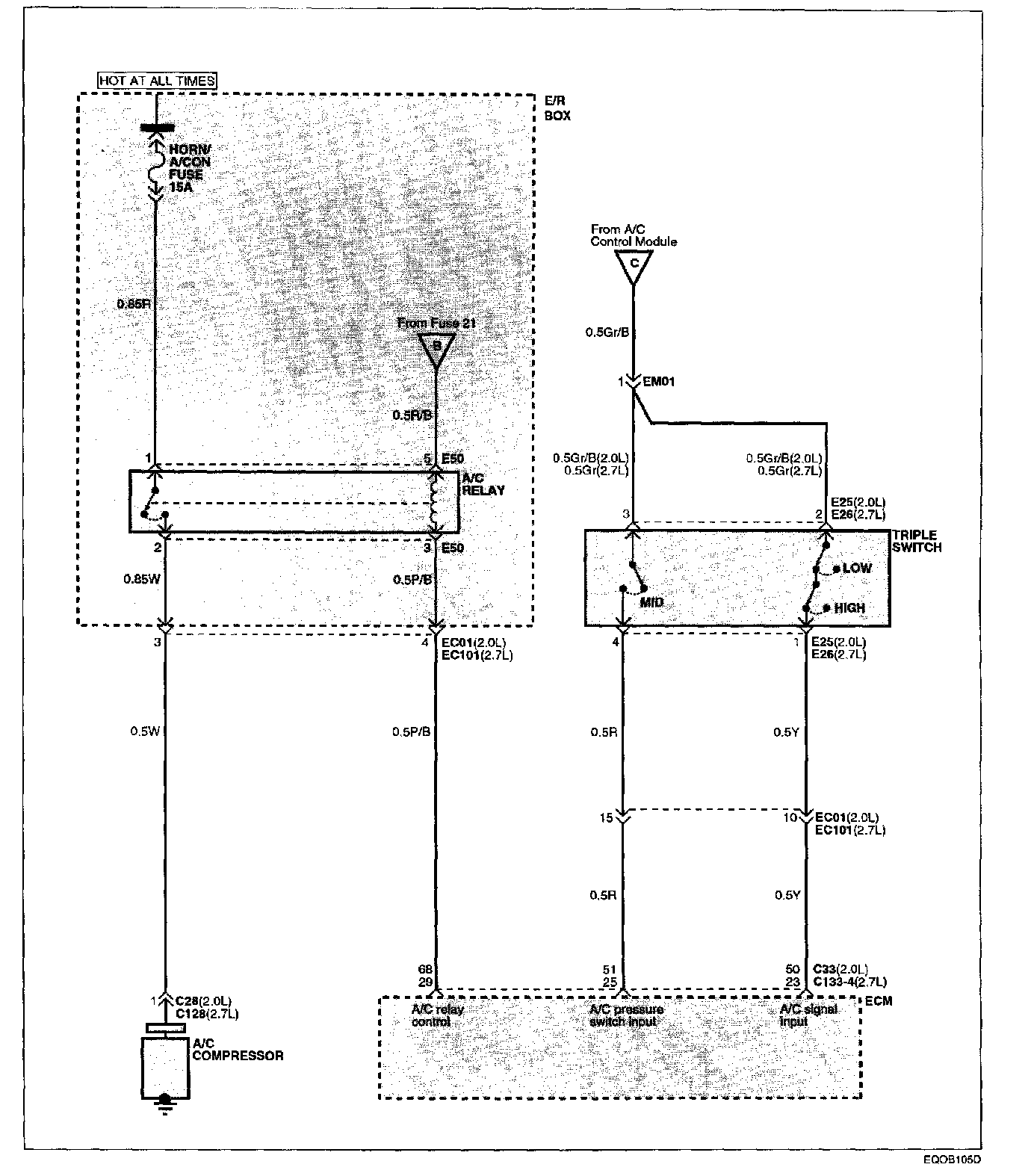

Schematic Diagram (Automatic 3):

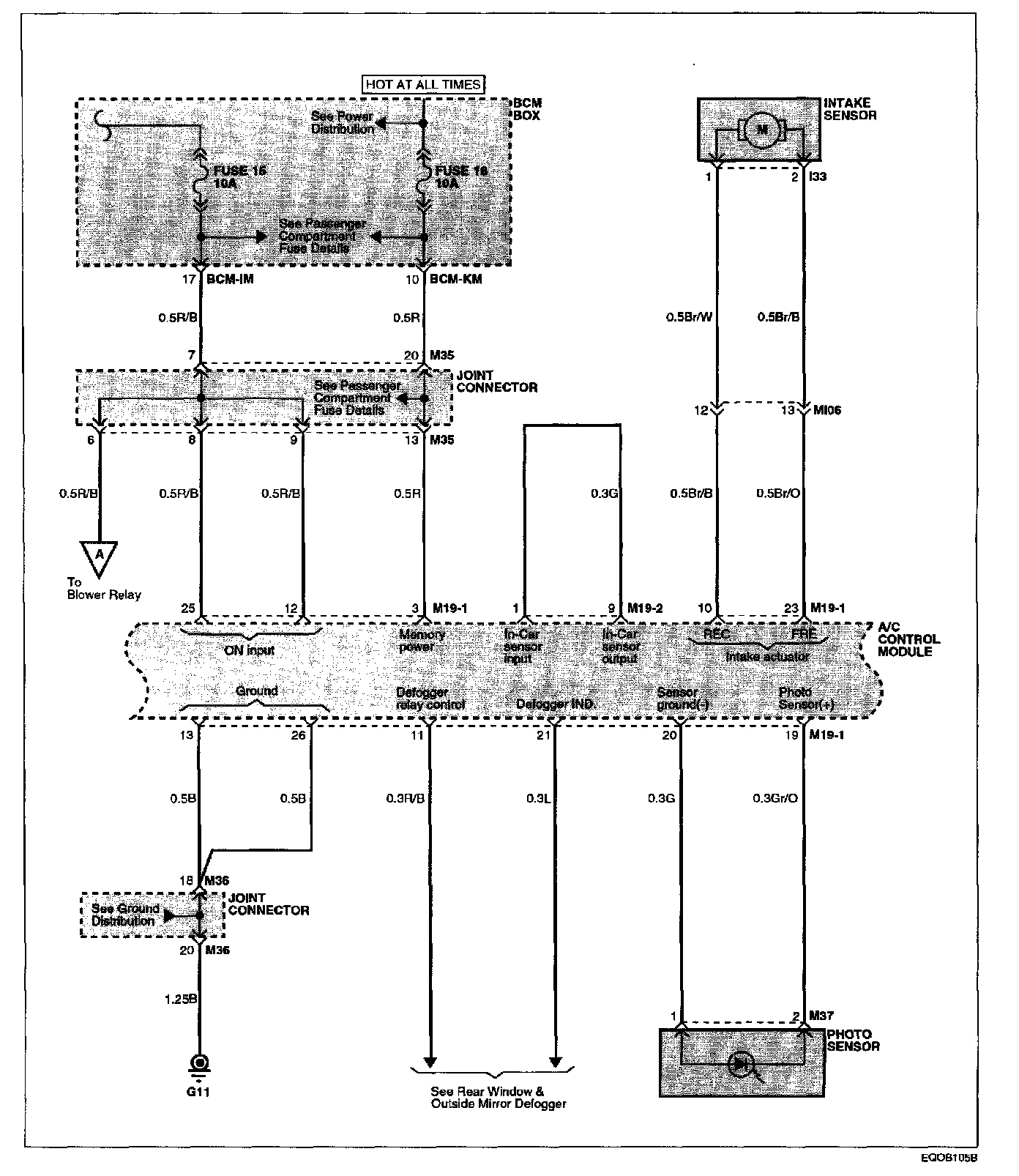

Schematic Diagram (Automatic 4):
