Schematic Diagrams

ANTI-LOCK BRAKE SYSTEM

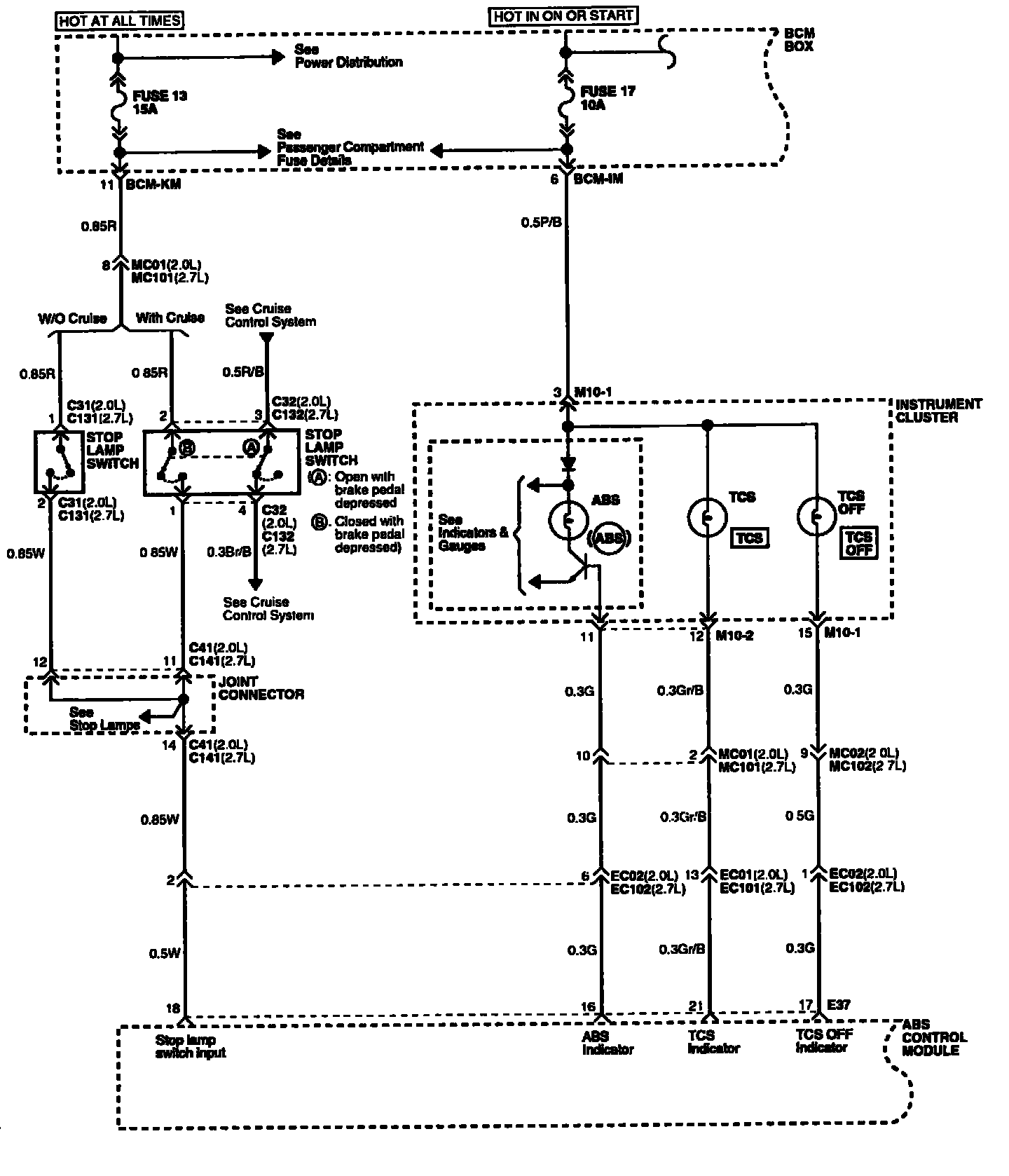

SCHEMATIC DIAGRAM (1)

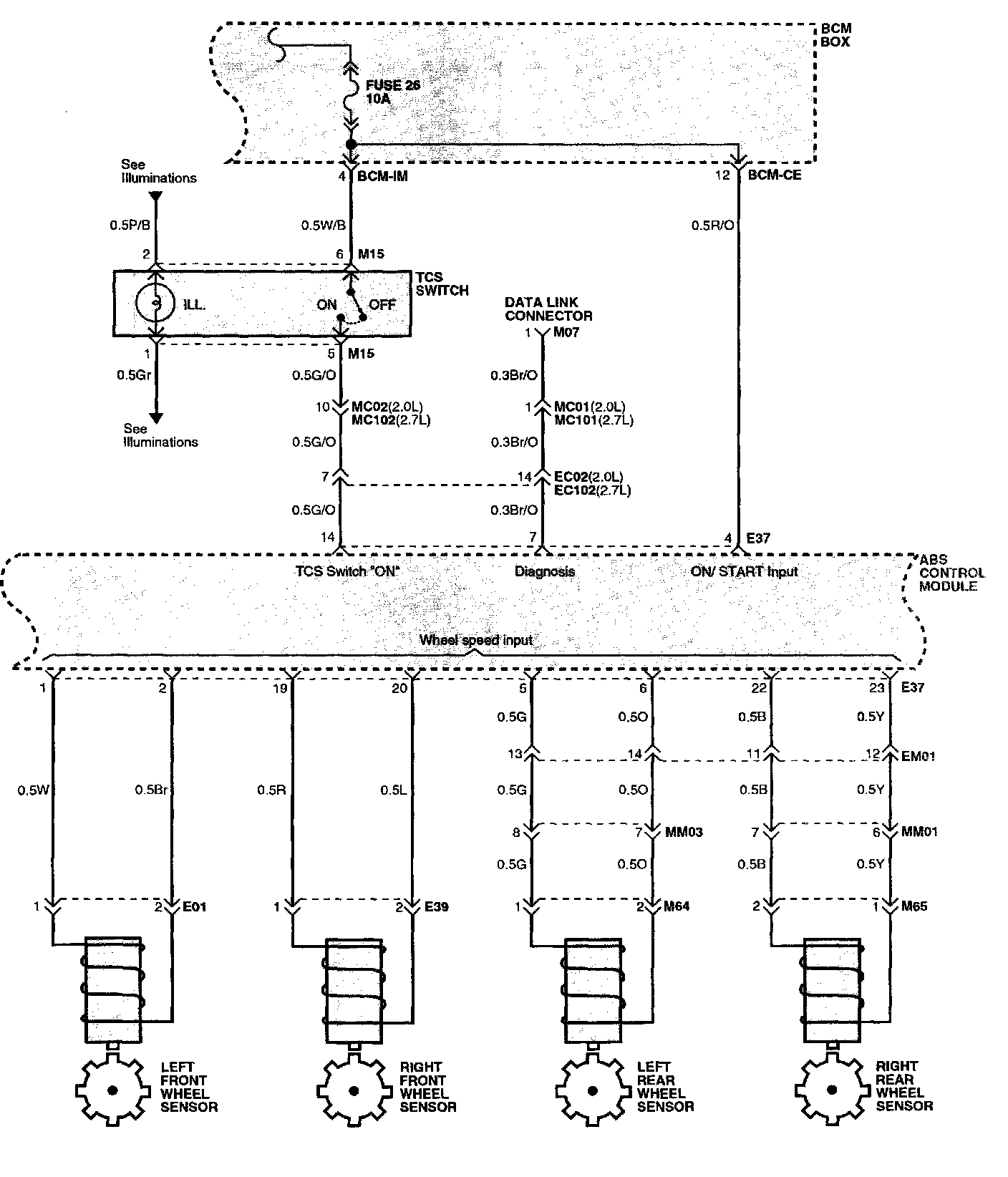

SCHEMATIC DIAGRAM (2)





SCHEMATIC DIAGRAM (3)
