Hyundai
>>
2003
>>
Tiburon L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

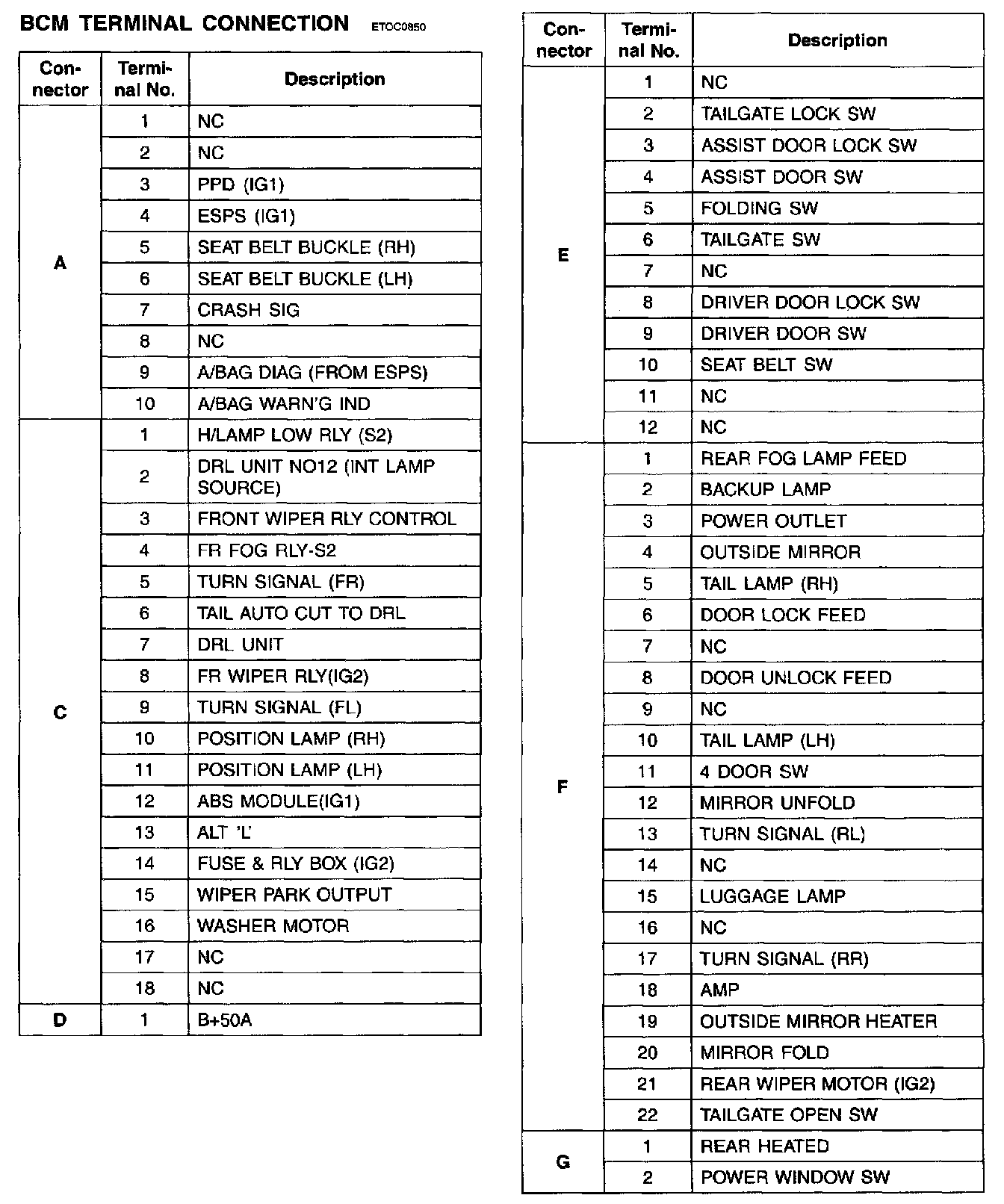

BCM Terminal Connection Part 1:

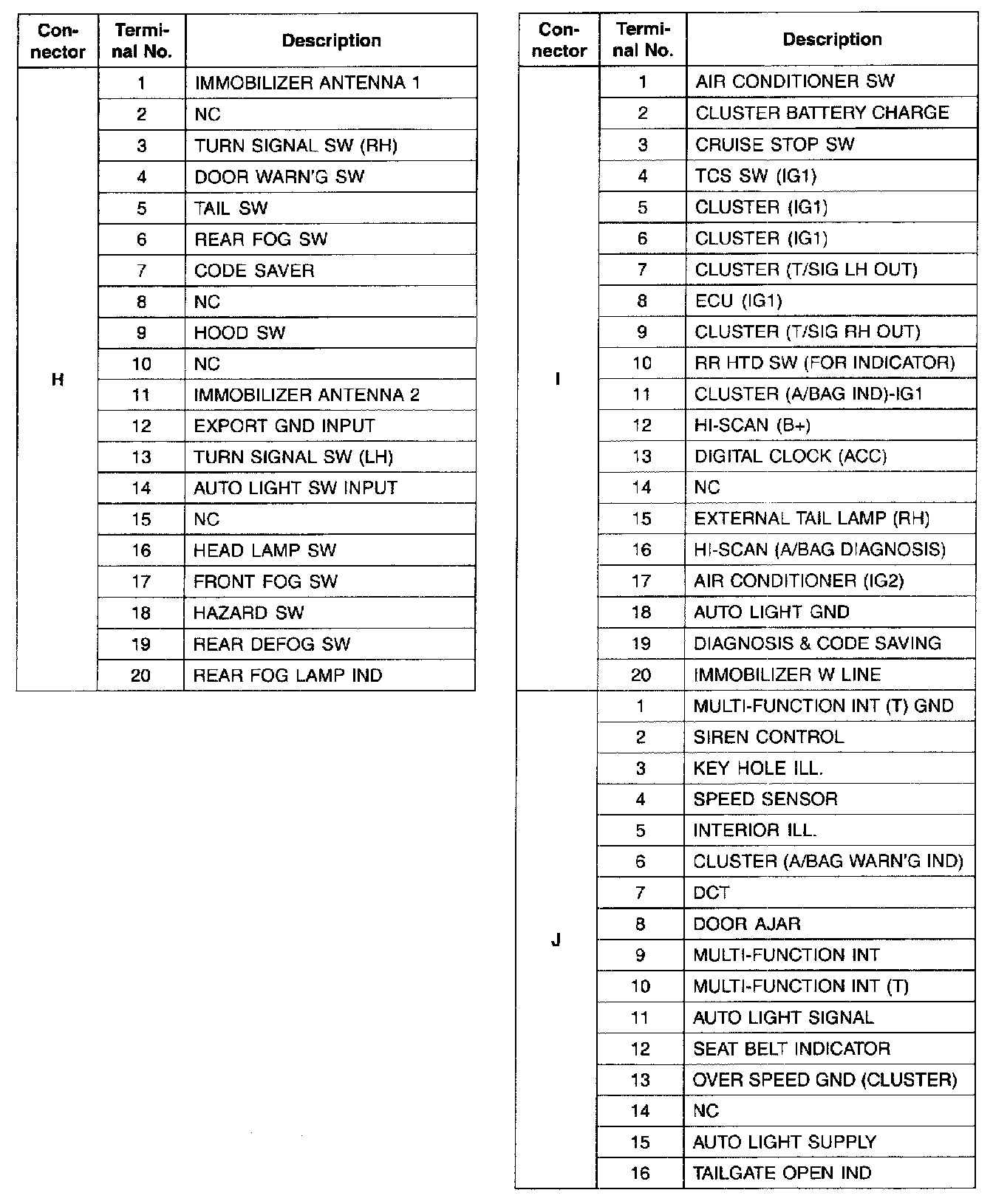

BCM Terminal Connection Part 2:
BCM Terminal Connection Part 3:

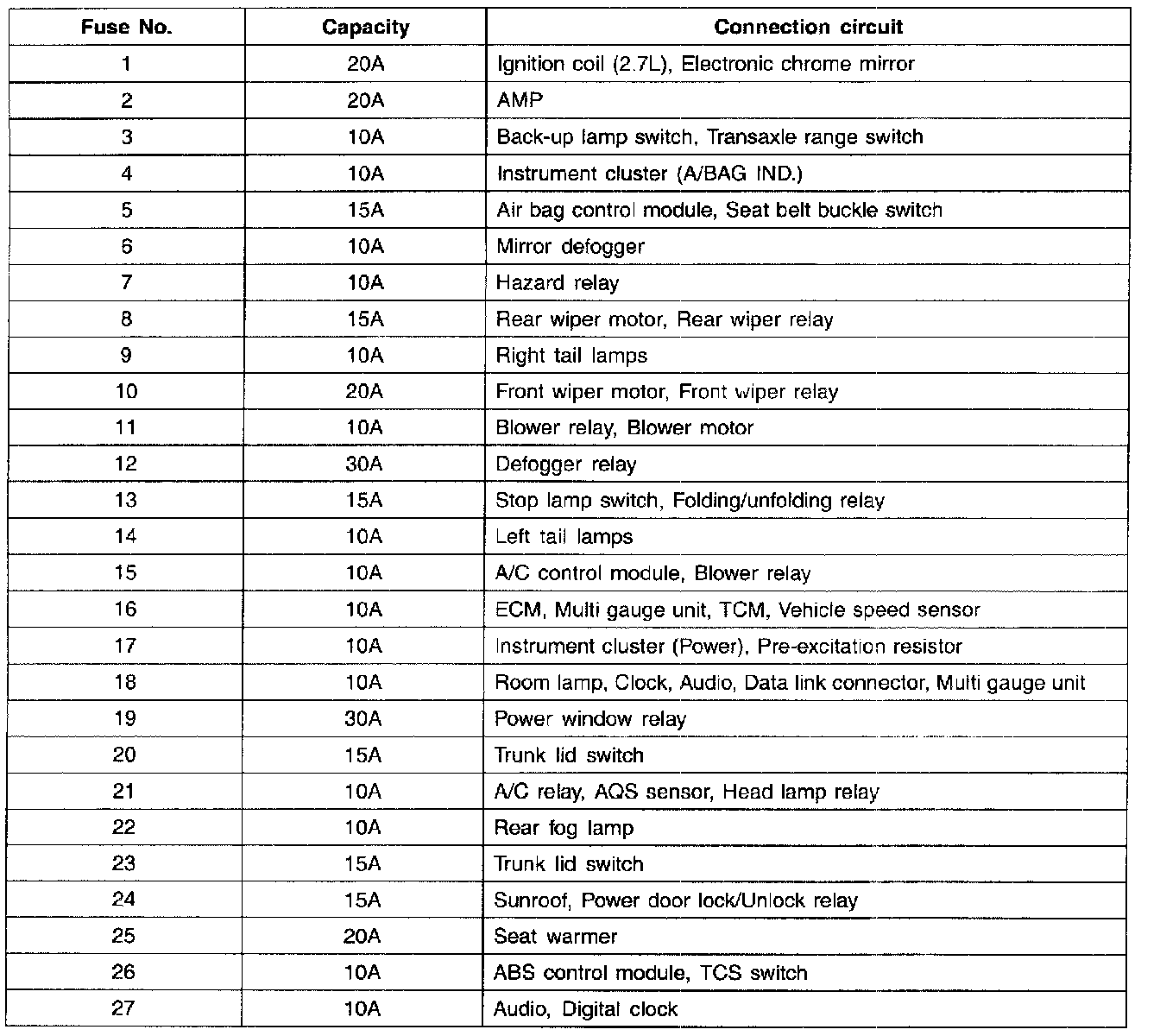

Fuse:
