Displaying & Reading Trouble Codes

HI-SCAN (PRO) CHECK
1. Turn the ignition OFF.

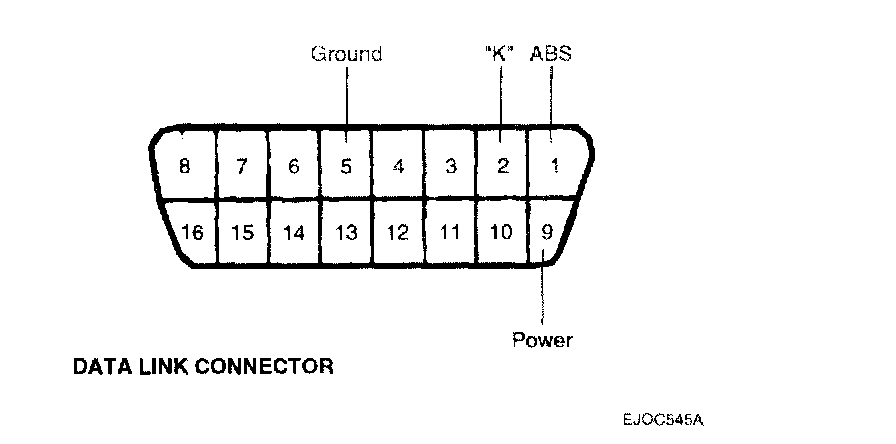

2. Connect the Hi-Scan (Pro) to the Data Link Connector located underneath the lower crash pad panel.
3. Turn the ignition ON.
4. Use the Hi-Scan (Pro) to check for diagnostic trouble codes.
5. After completion of the repair or correction of the problem, erase the stored fault codes using the clear key on the Hi-Scan (Pro).








6. Disconnect the Hi-Scan (Pro).

CONNECTOR CHECK
1. Remove the negative battery (-) terminal.
2. Disconnect the connectors and check terminals following the troubleshooting procedure.

NOTE: When you check the terminals, be sure to use a small enough pin so as to not damage the connector terminals.
