Sunroof / Moonroof Switch: Testing and Inspection

1. Disconnect the negative (-) battery terminal.

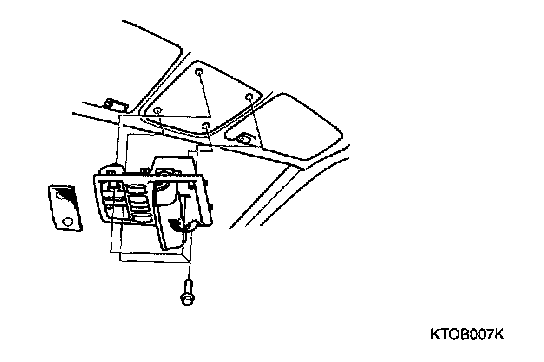

2. Detach the lamp lens then remove the mounting screws (2EA) and open the overhead console case cover then remove the mounting screws (2EA).

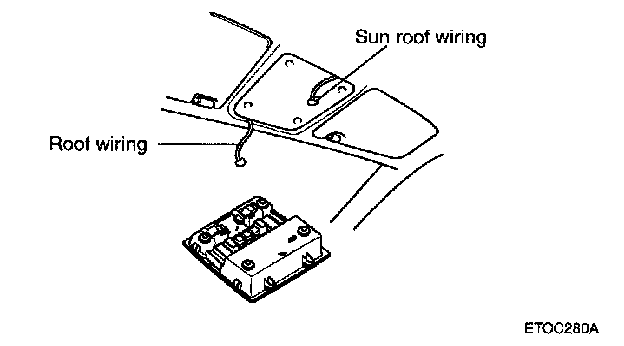

3. Carter disconnecting the roof wiring and sun root wiring connector then remove the overhead console lamp assembly from the headliner.

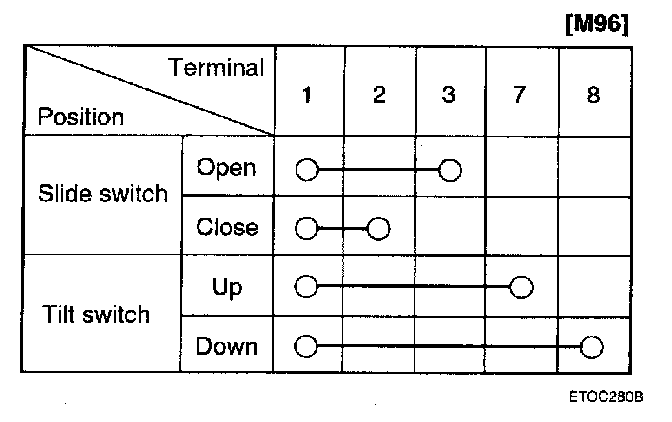

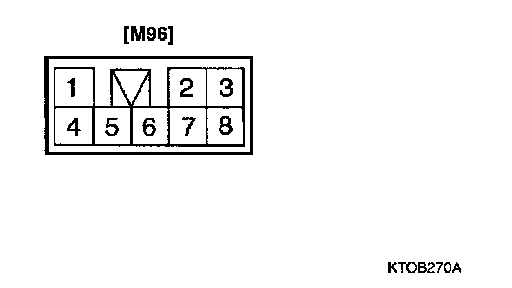

4. Using an ohmmeter, check for continuity between the terminals.
If the continuity is not as specified, replace the sun roof switch.
