Headliner: Service and Repair

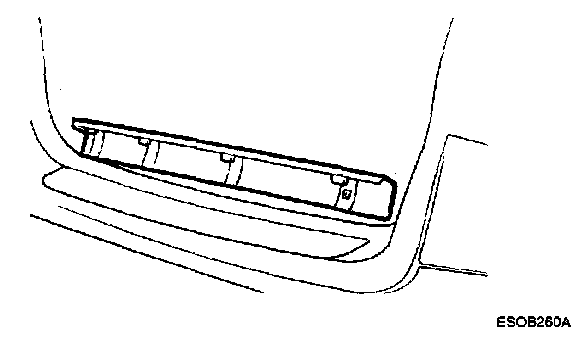

DOOR SCUFF TRIM AND STEP PLATE TRIM




1. Remove the door scuff trim.




2. Remove the step plate trim.

COWL SIDE TRIM




Remove the cowl side trim by loosening mounting screw.

COVERING SHELF CENTER TRIM AND SIDE TRIM




Remove the mounting screws from the covering shelf side trim.

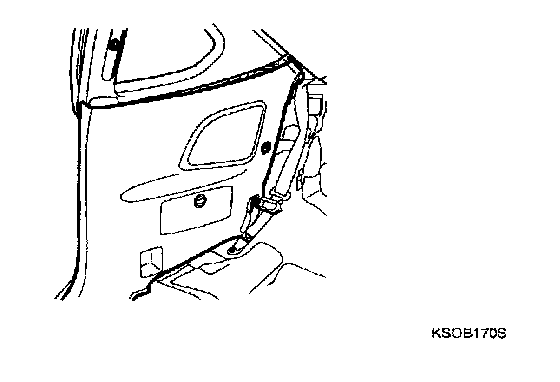

QUARTER INNER TRIM

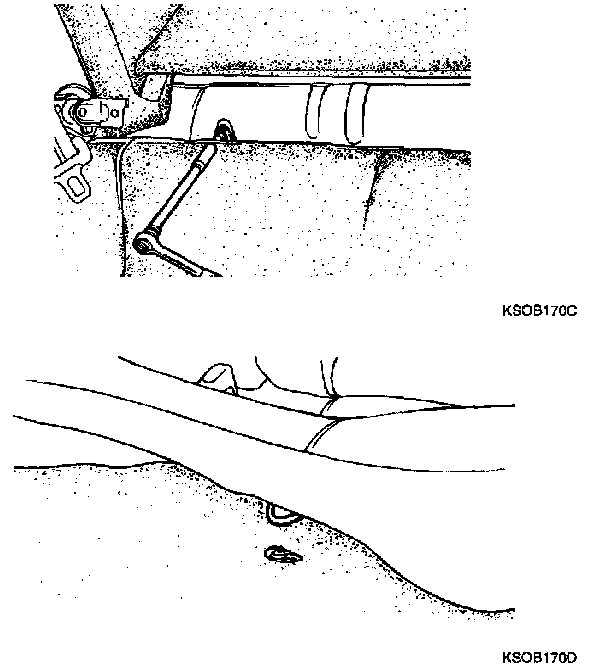

1. Remove the rear seat cushion mounting bolts from the rear seat cushion.

Tightening torque: 17-26 Nm (170-260 kg.cm, 12-19 lb.ft)




2. Remove the rear seat back mounting bolts from the rear seat back.

Tightening torque: 17-26 Nm (170-260 kg.cm, 12-19 lb.ft)

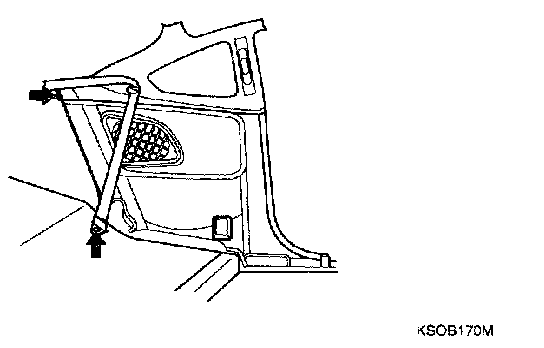

3. Remove the rear seat belt upper anchor mounting bolt.
4. Remove the rear sear back lower anchor mounting bolt and remove rear seat belt.

Tightening torque: 0-55 Nm (400-550 kg.cm, 29-40 lb.ft)

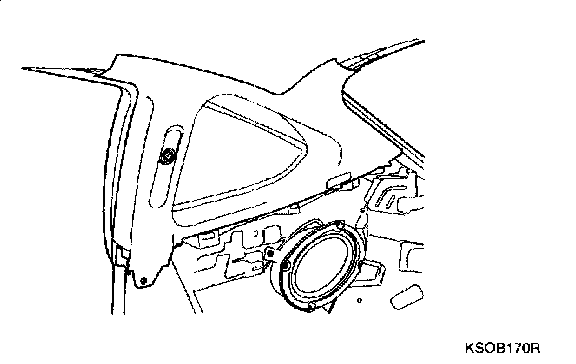

5. Remove the quarter inner trim mounting screws(4EA) from the quarter inner trim and remove the inner trim assembly.

CENTER PILLAR TRIM




1. Remove the front seat belt upper anchor mounting bolt.




2. Remove the center pillar upper trim mounting screws. Remove the seat belt webbing guide mounting screws and coat hook mounting screws from the center pillar upper trim.

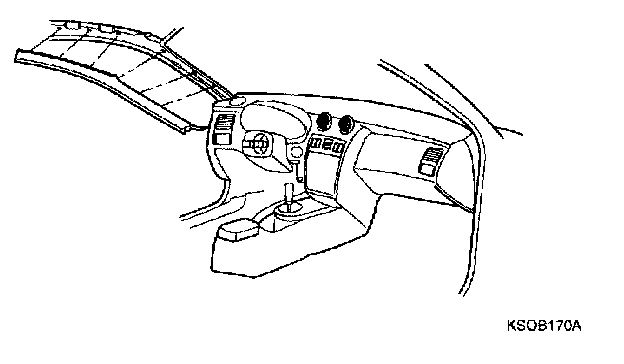

FRONT PILLAR TRIM




Remove the front pillar trim.

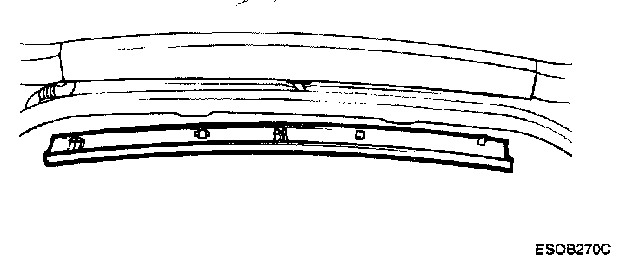

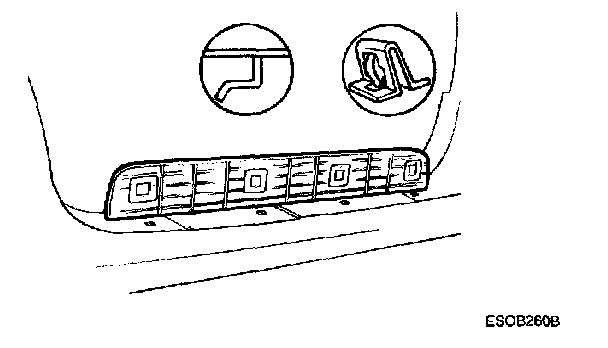

REAR TRANSVERSE TRIM




Remove the mounting clip from the rear transverse trim.

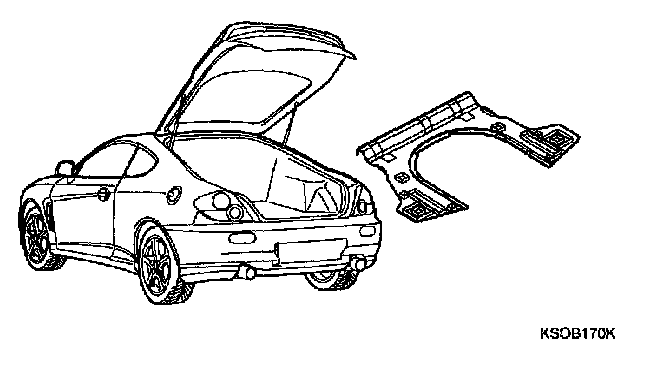

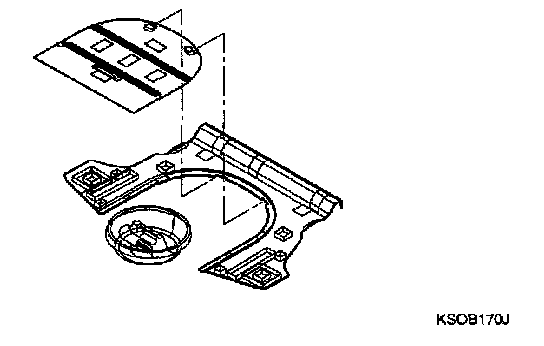

LUGGAGE BOARD CENTER TRIM




Grab the knob and remove the luggage board center trim.

LUGGAGE BOARD FRONT TRIM




Grab the both side folders and remove the luggage board front trim.

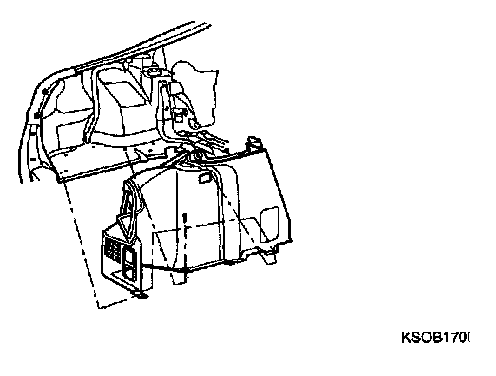

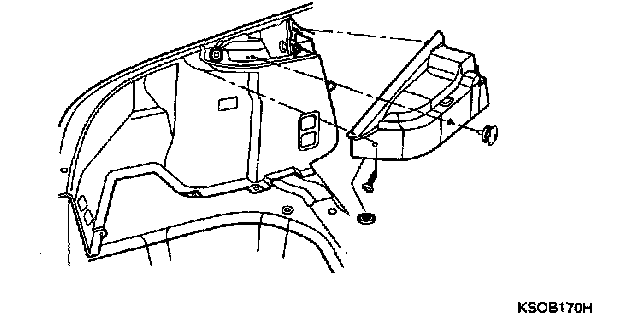

LUGGAGE SIDE TRIM




Remove the mounting screws from the luggage side trim Disconnect the trunk room lamp connector

HEAD LINING
1. To remove the headlining, first remove the following parts
1. Rear seat cushion.
2. Rear seat back.
3. Rear seat belt upper anchor mounting bolt.
4. Rear seat back lower side bracket.
5. Quarter inner trim.
6. Front seat belt upper anchor mounting bolt.
7. Center pillar upper trim.
8. Front pillar trim.

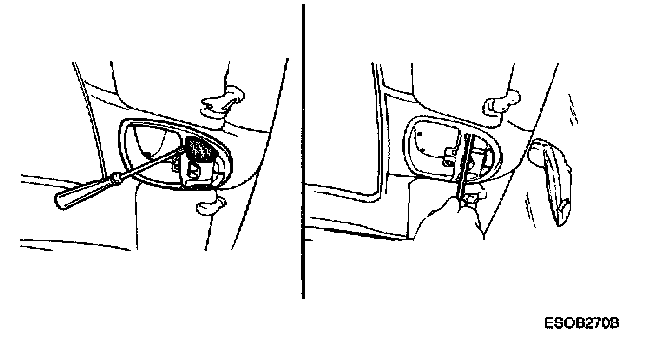

2. Remove the mounting screws from the over head console lamp.
Disconnect the over head console lamp.




3. Remove the mounting screws from the sunvisor.




4. Remove the mounting clips from the roof rear cover trim.

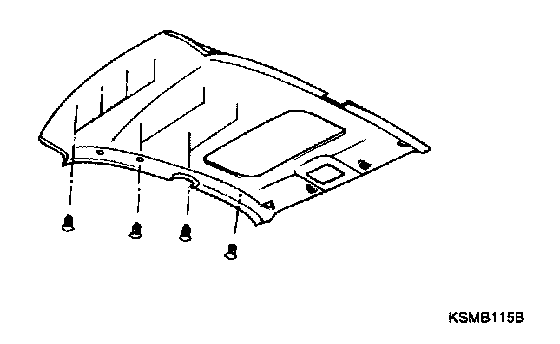

5. Remove the headlining mounting clips and remove the headlining.
6. Installation is the reverse of removal.
