Fender Garnish

REMOVAL AND INSTALLATION

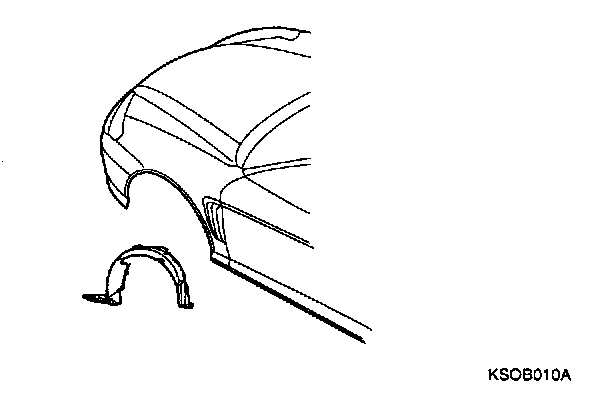

1. Remove the wheel guard.

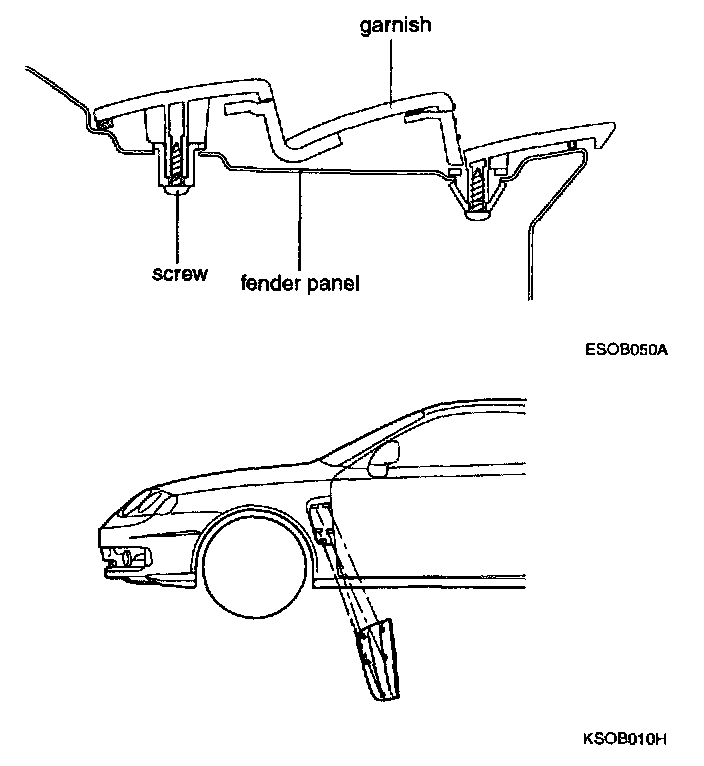

2. Loosen the fender garnish mounting screws and then remove the tender garnish.
3. Installation is the reverse of the removal.

CAUTION:
1. When installing garnish, be careful not to deform the tender panel.
2. Engage the clip part on the garnish into the tender panel securely until it makes check sound.
