Body - Window Regulator/Motor Replacement
Group: ELECTRICALNumber: 04-90-010
Date: JUNE, 2004
Model: 2001-2004 ELANTRA
Subject
ELANTRA FRONT DOOR
POWER WINDOW REGULATOR MOTOR
DESCRIPTION:
Some 2001-2004 model year Elantra front power window regulators have been produced with motors originally designed for 1996-2000 model year Elantras. On these vehicles, the LH labelled motor is installed in the RH regulator, and a RH labelled motor is installed in the LH regulator.
PROCEDURE:
When replacing a front window regulator motor, identify the removed motor part number and order that same part number as a replacement part.
NOTE:
This condition does not exist in the left rear and right rear doors.
PARTS INFORMATION:

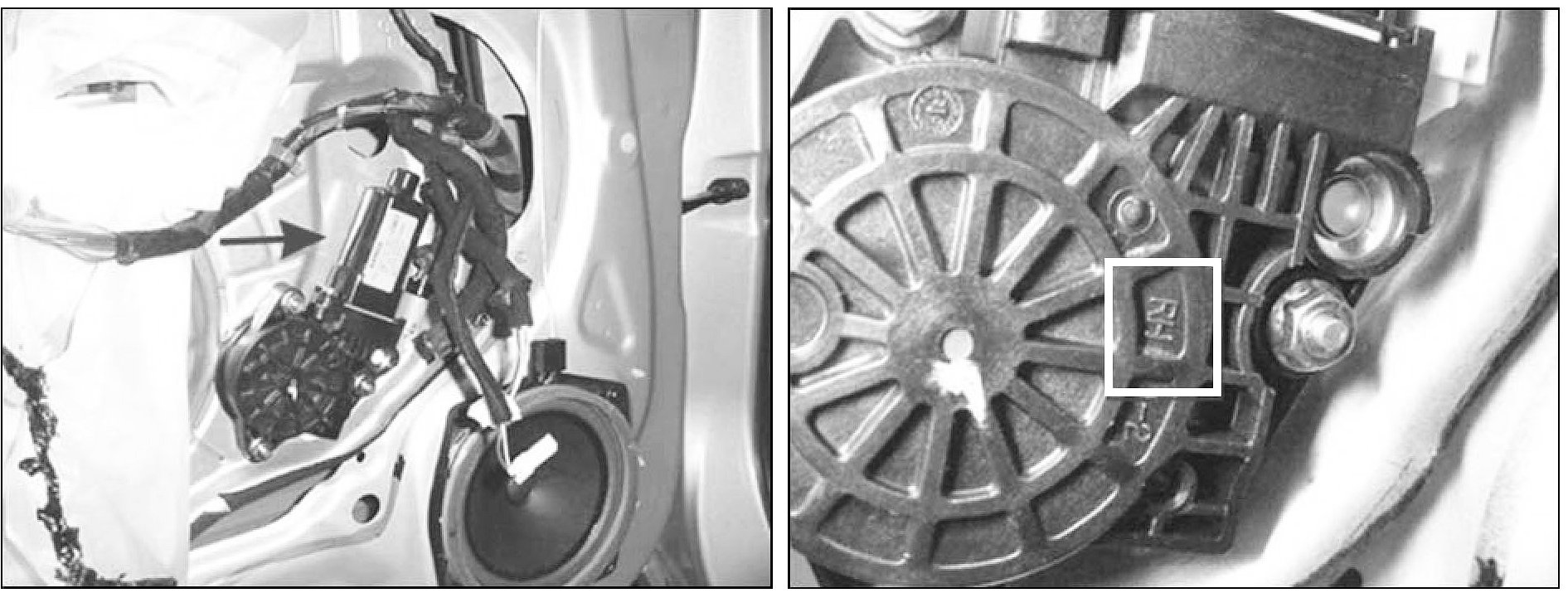

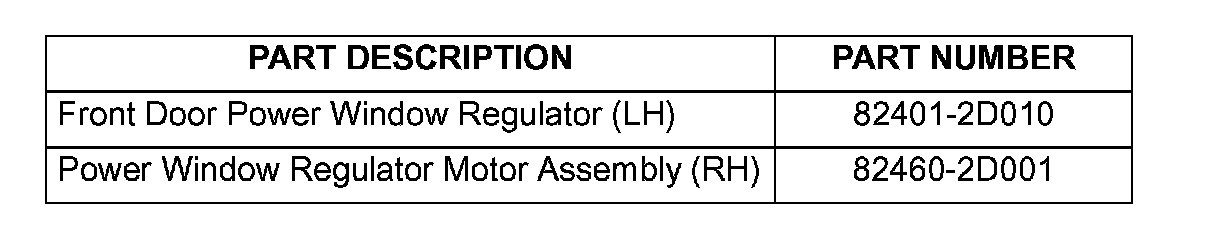

For the Left Front Door:

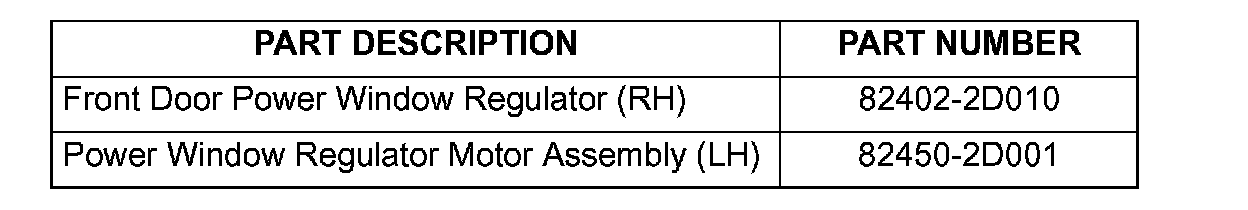

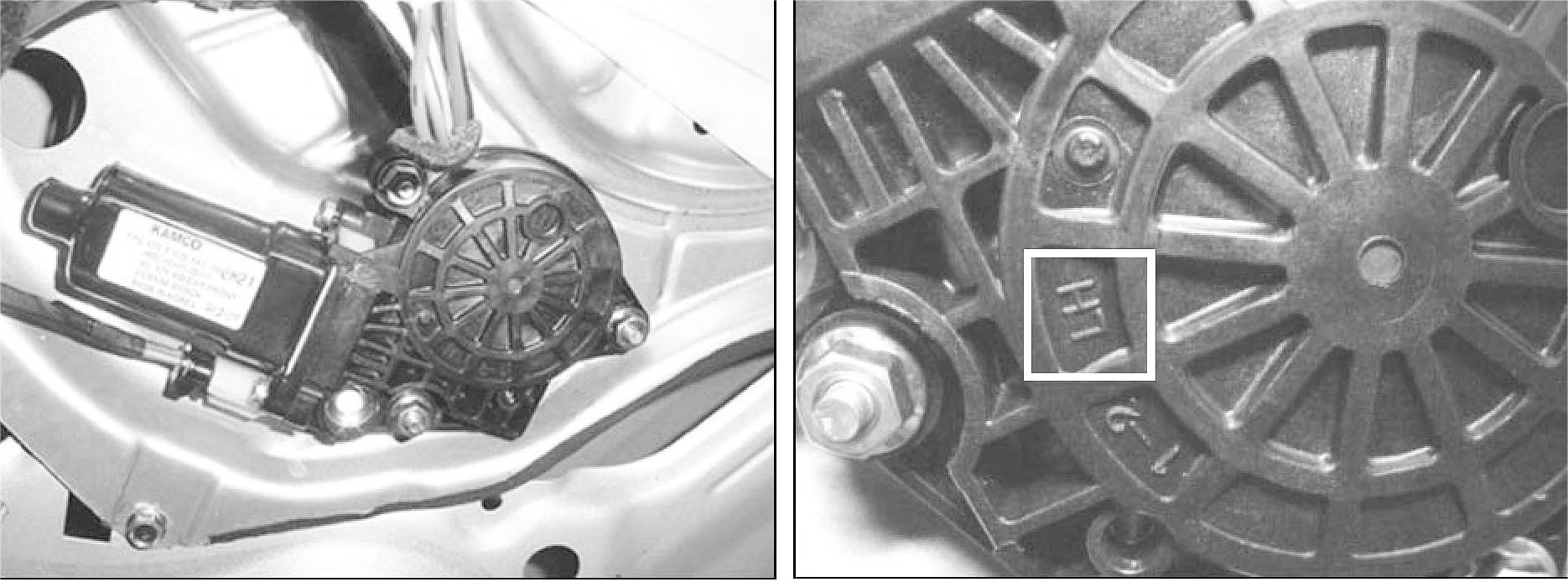

For the Right Front Door:

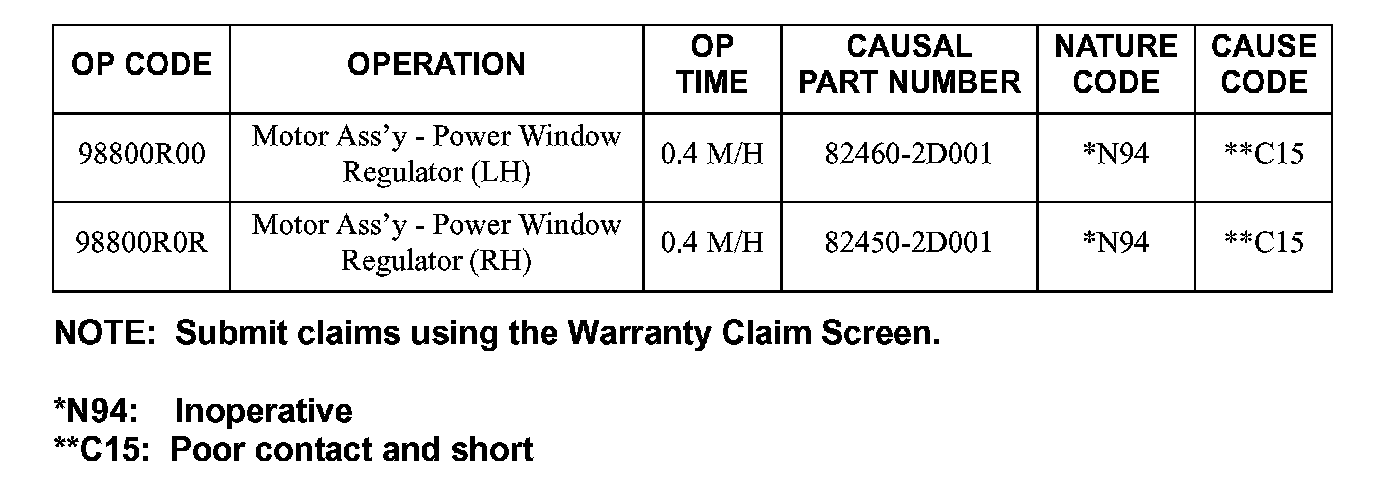

WARRANTY INFORMATION:
