Electrical Diagrams

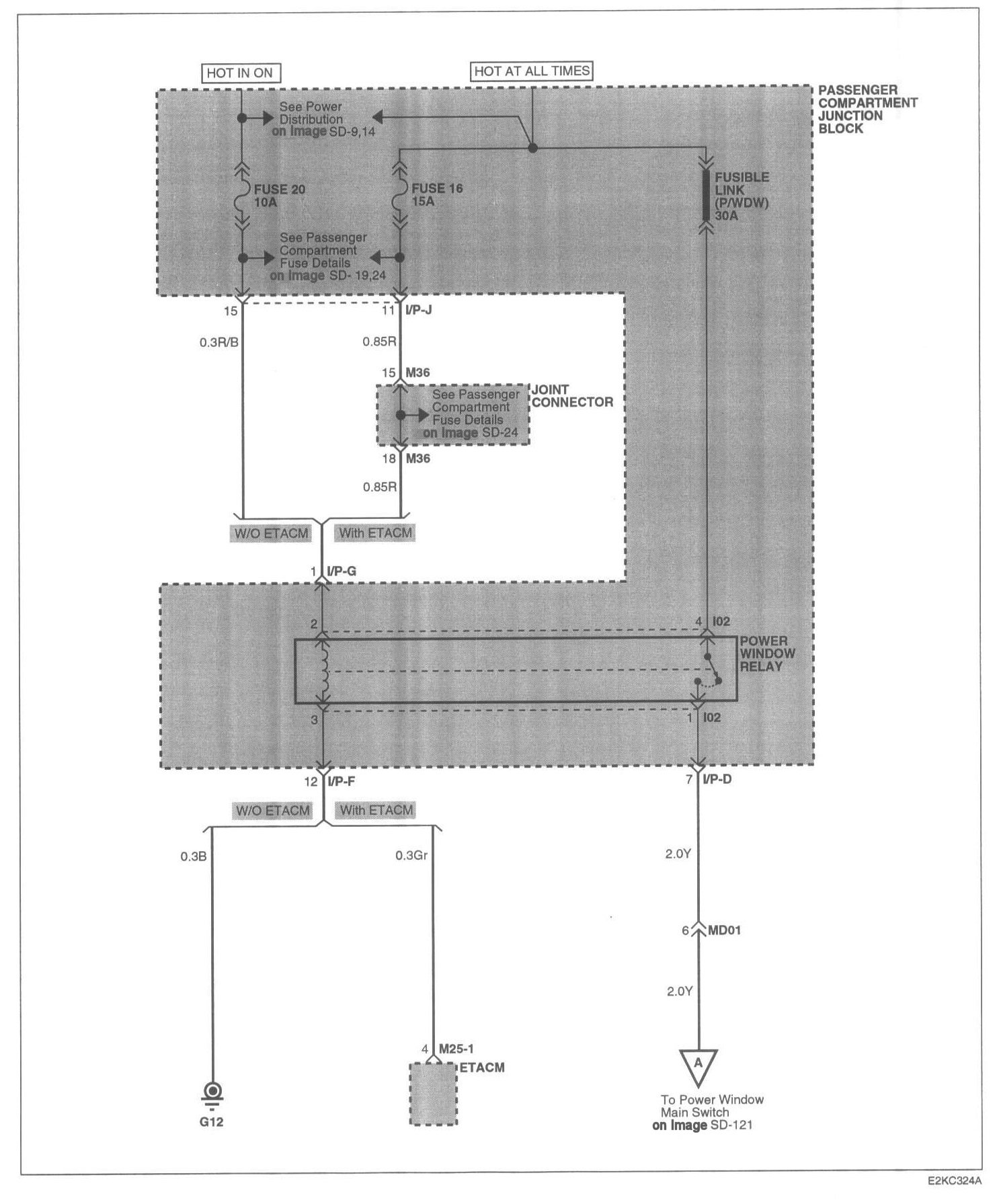

Image SD-120 Power Windows (1):
Image SD-121 Power Windows (2):

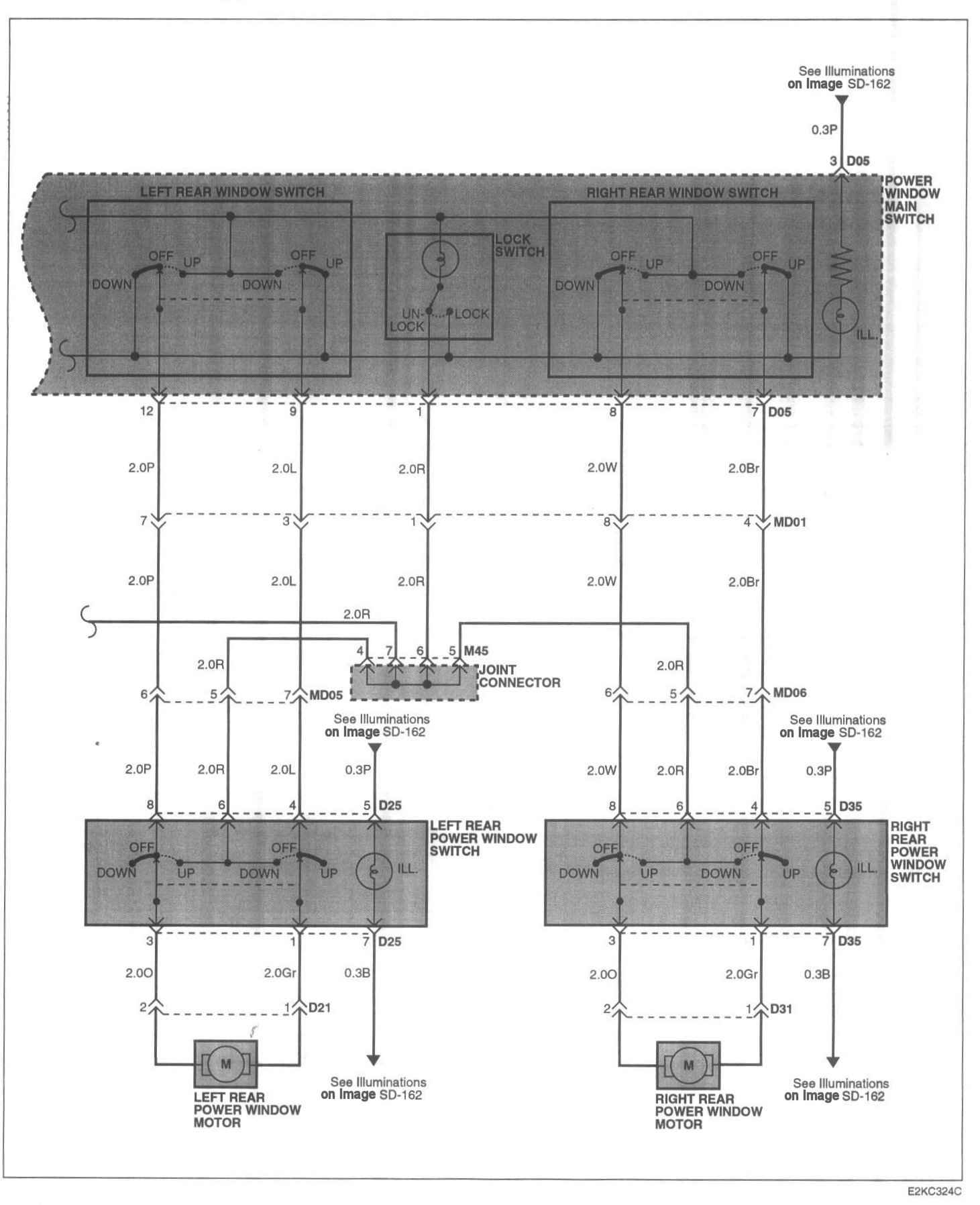

Image SD-122 Power Windows (3):
