Elantra GT Hatchback L4-2.0L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

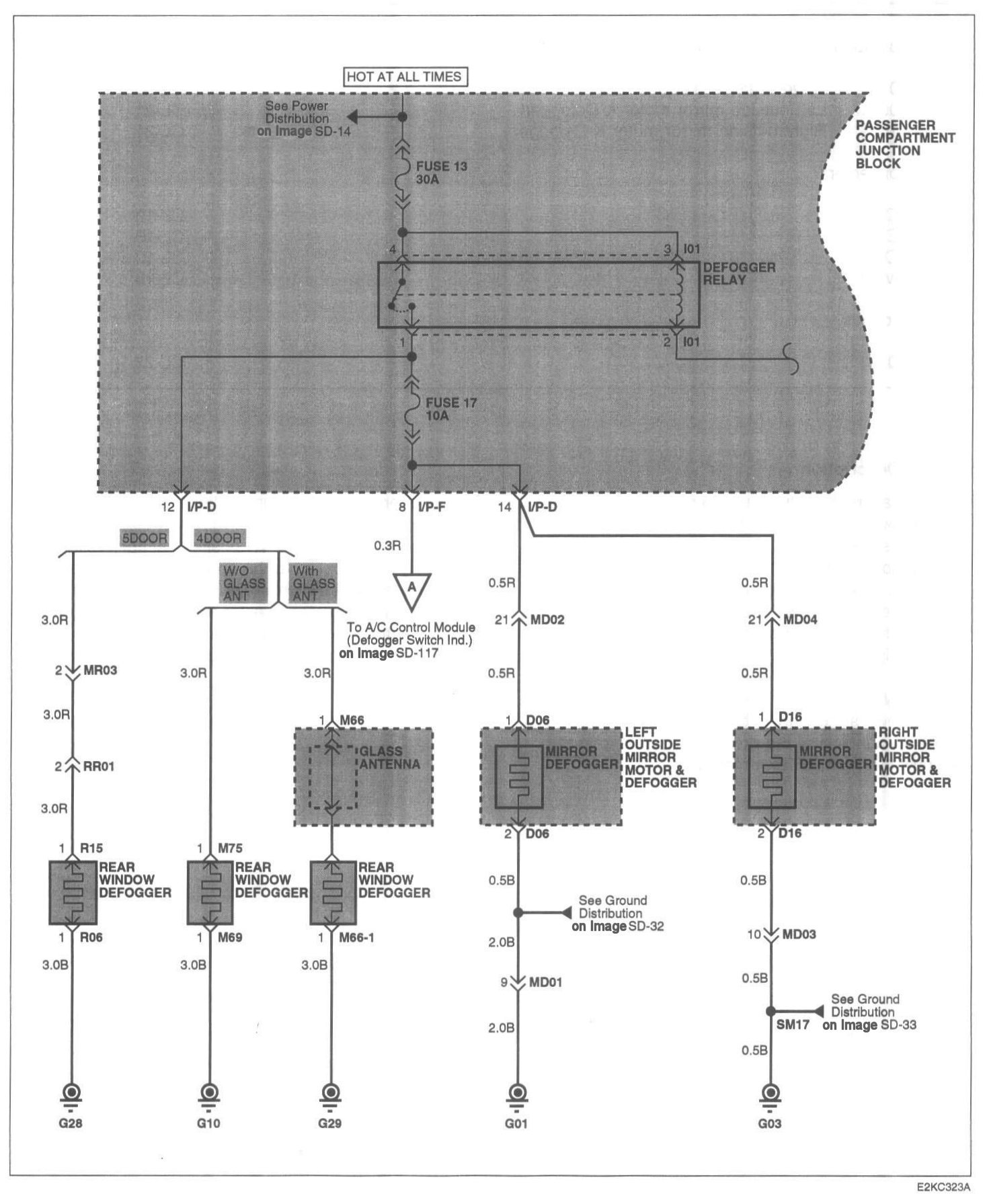

Image SD-116 Rear Window & Outside Mirror Defogger System (1):

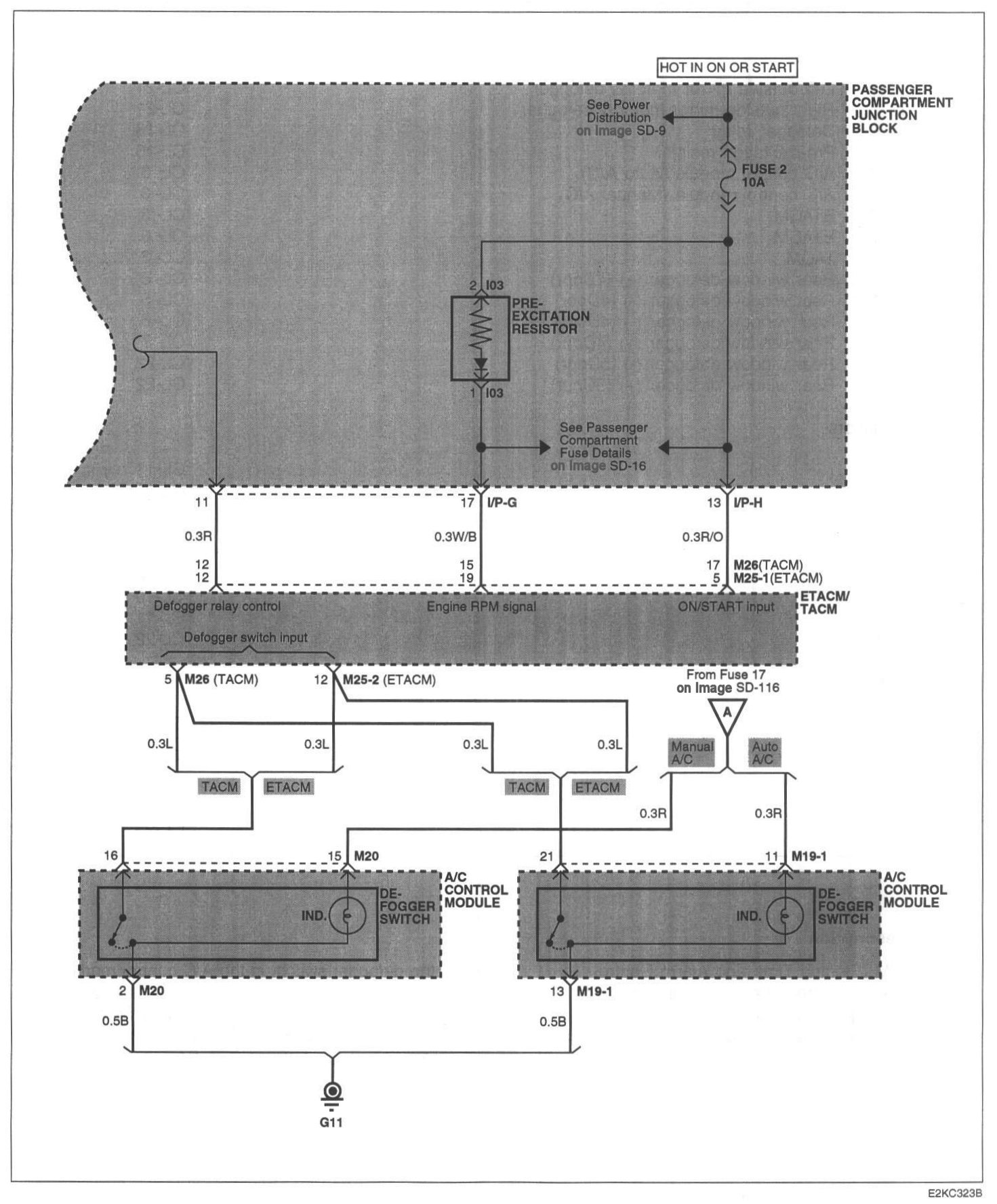

Image SD-117 Rear Window & Outside Mirror Defogger System (2):
