Inspection Chart For Trouble Symptoms
Inspection Chart For Trouble Symptoms

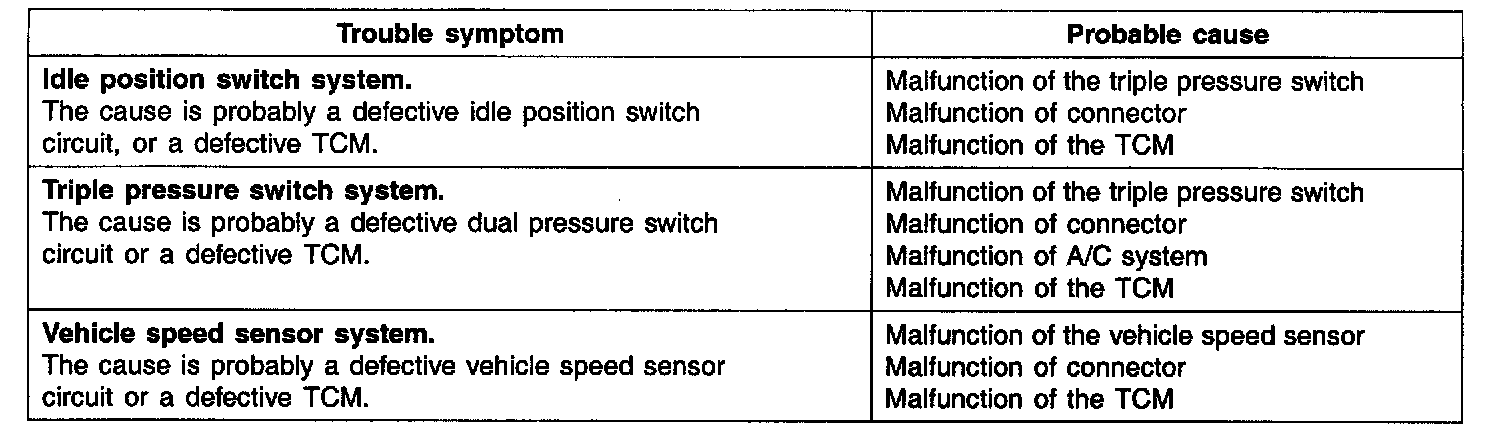

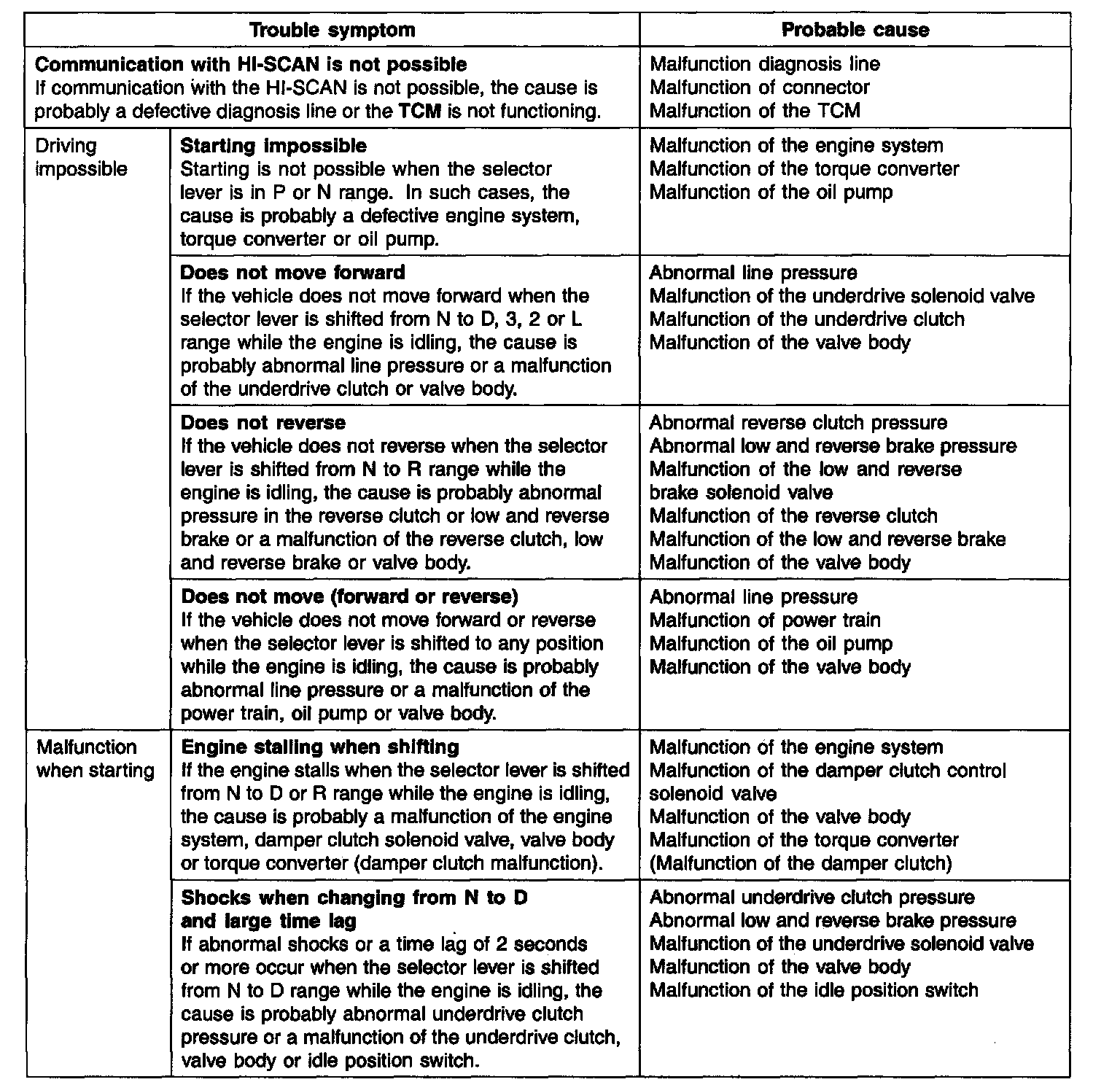

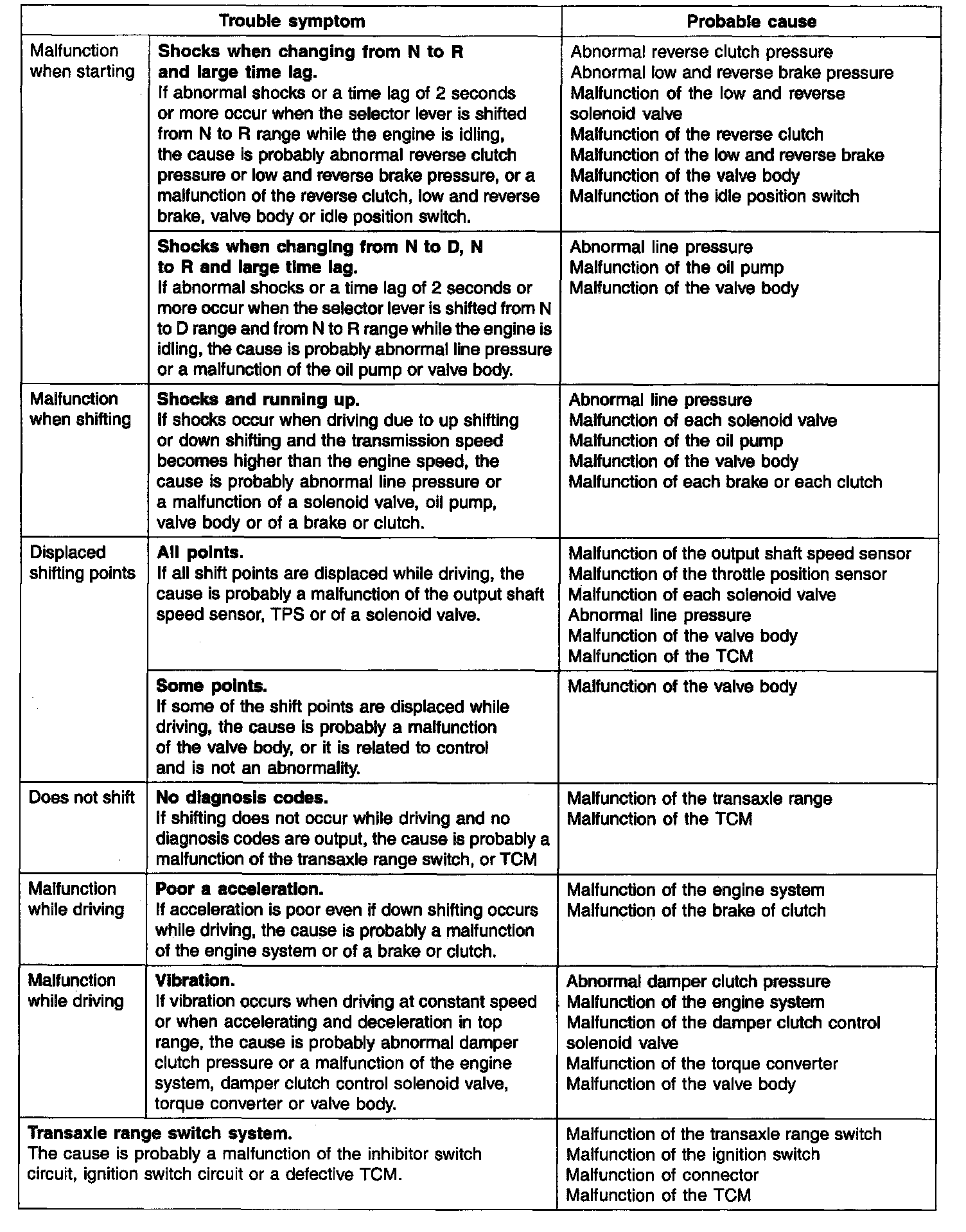

INSPECTION CHART FOR TROUBLE SYMPTOMS
1 of 3
2 of 3
3 of 3
