Manual Update Procedure

NOTE:
^ In the event that option "01. XD 2.0D AT SHIFT FLARE [AUTO]" fails to download the new TCM program, option "02. XD 2.0D AT SHIFT FLARE [ERROR]" must be used.

^ Confirm all connections are established as shown in the "AUTOMATIC UPDATE PROCEDURE" before continuing.

1. Turn the ignition to the ON position.

2. Turn the Hi-Scan Pro ON.

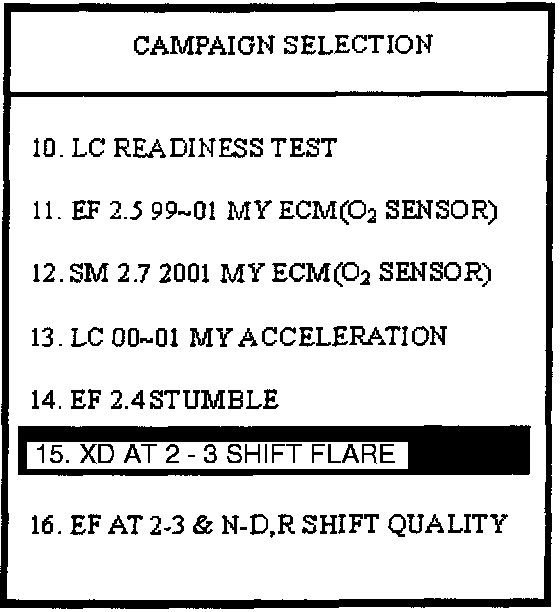

3. Select option "15. XD AT 2-3 SHIFT FLARE" and press ENTER.





4. Select option "02. XD 2.0D AT SHIFT FLARE [ERROR]" and press ENTER.





5. Select "01. XD 2.0D AT: 95440-39231" and press ENTER.

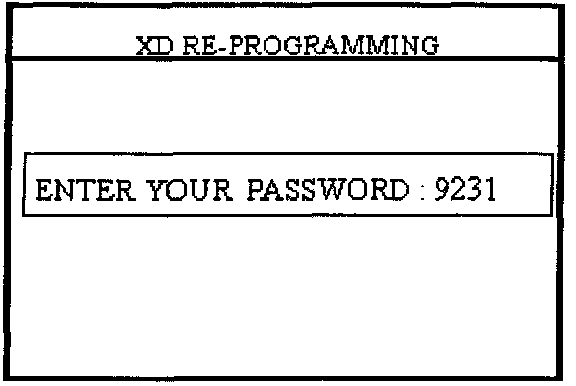

6. Enter "9231" as the password for the manual update mode and press ENTER.

WARNING:
Be sure to input the correct password.

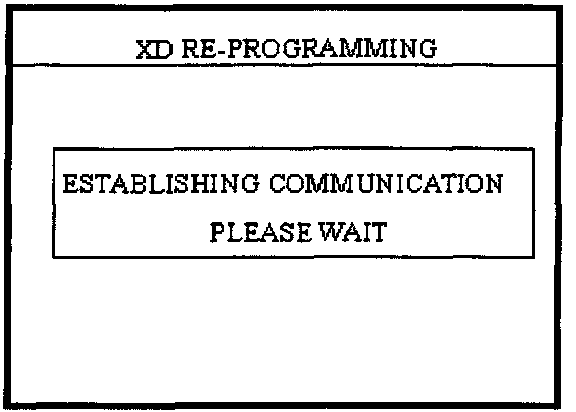

7. The Hi-Scan Pro will establish communication.

NOTE:
Once the password is entered and accepted, the rest of the procedure is exactly the same as the automatic update procedure.

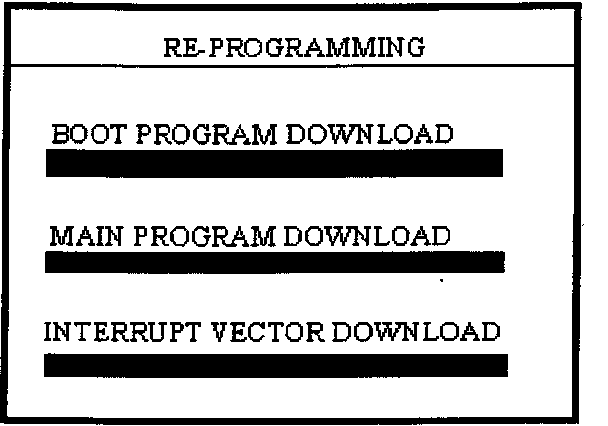

8. Hi-Scan Pro will reprogram the TCM.

WARNING:
Do not interrupt the reprogramming at any time. The TCM may be rendered inoperative if the program does not download completely.





9. Hi-Scan Pro checks the TCM ID to confirm reprogramming is complete.

NOTE:
When the reprogramming is completed successfully, turn the ignition to the OFF position for 20 seconds and then start the engine for proper operation.
