Automatic Update Procedure

1. Remove any software cards from the Hi-Scan Pro and insert reprogramming card into the Hi-Scan Pro top slot. (Version 12-18-01)

2. Connect the reprogramming adapter to the Hi-Scan Pro.

3. Connect the white 10 pin connector to the reprogramming adapter.

4. Connect power to the Hi-Scan Pro from the cigarette power adapter.

5. Insert the power cable from the reprogramming adapter into the cigarette power adapter.





6. Connect the cigarette power adapter into the vehicle cigarette power socket.





7. Connect the white 10 pin connector to the white reprogramming connector at the lower crash pad next to the DLC (Data Link Connector) connector.





8. Turn the ignition to the ON position.

9. Turn the Hi-Scan Pro ON.

10. Select option "15. XD AT 2-3 SHIFT FLARE" and press ENTER.

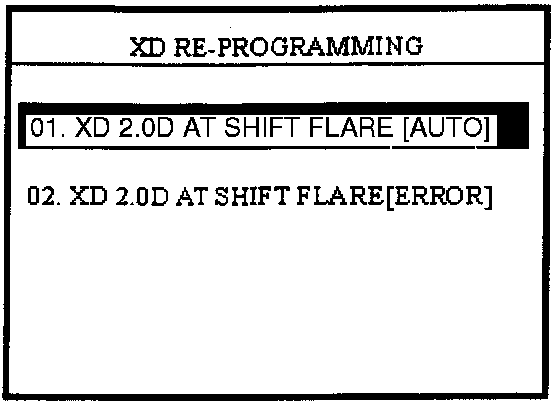

11. Select option "01 XD 2.0D AT SHIFT FLARE [AUTO]" and press ENTER.





12. Enter "1229" as the password for the automatic update mode and press ENTER.





13. The Hi-Scan Pro will establish communication.

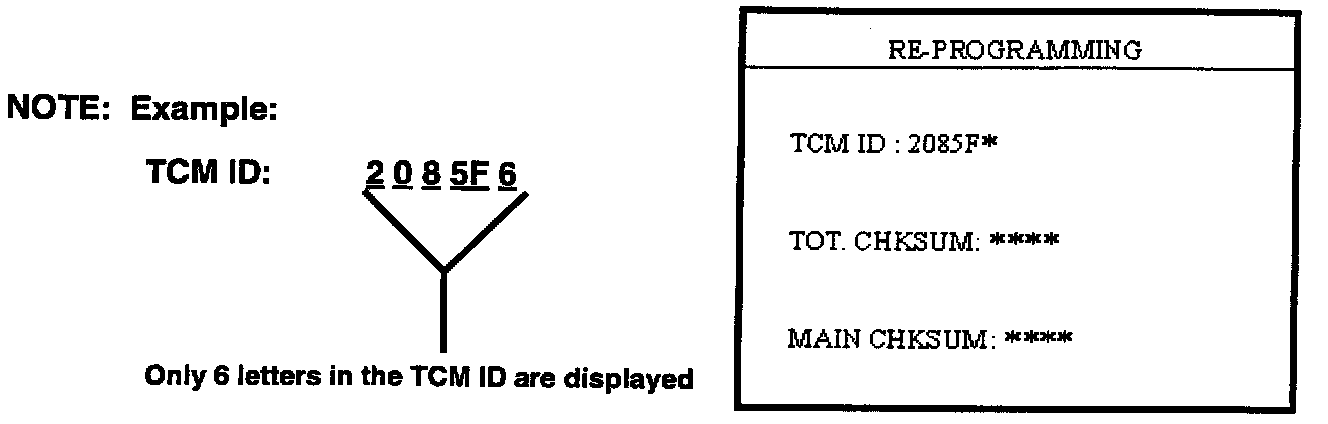

14. Hi-Scan pro detects the current TCM ID, then displays it for about 1 second.





15. The boot program will download first, then the main program and the interrupt vector program.

NOTE:
If the Hi-Scan Pro does not download the program, use the Manual Update Procedure following this section.

WARNING:
Do not interrupt the reprogramming at any time. The TCM may be rendered inoperative if the program does not download completely.





16. When the "REPROGRAMMING COMPLETED!" message is displayed, the TCM reprogramming process is complete.

NOTE:
When the reprogramming is completed successfully, turn the ignition to the OFF position for 20 seconds and then start the engine for proper operation.
