Electrical Diagrams

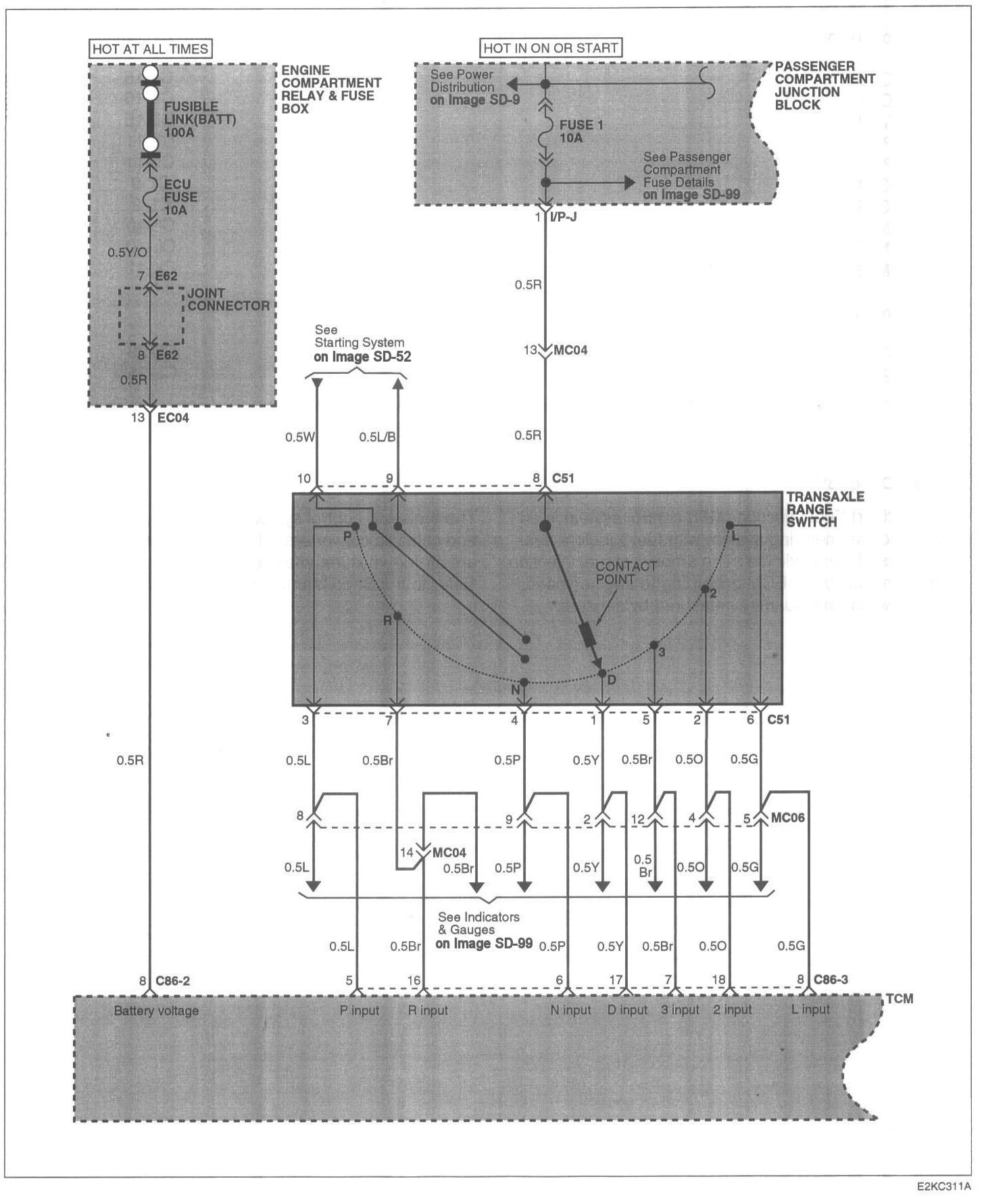

Image SD-68 Automatic Transaxle Control System (1):

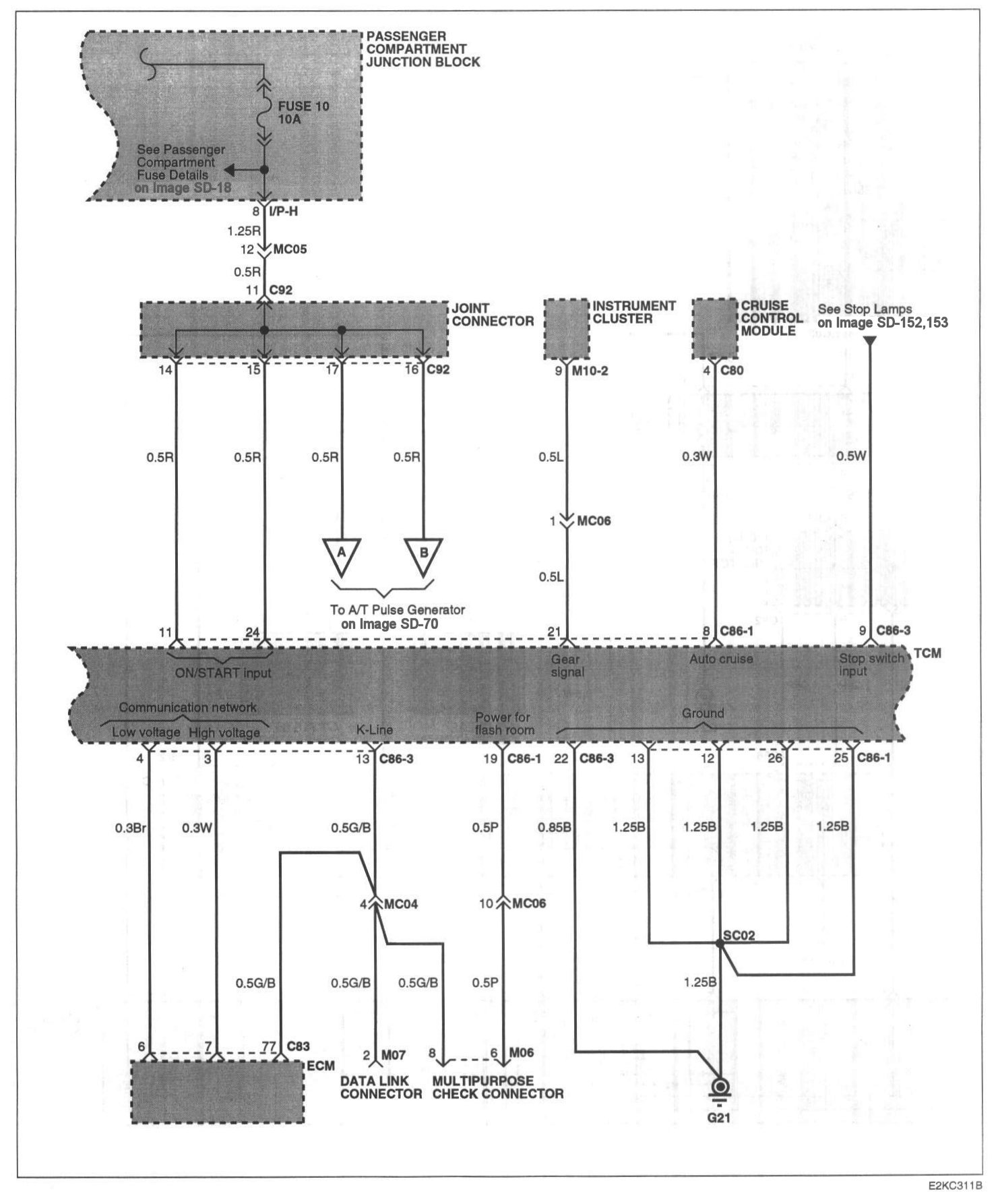

Image SD-69 Automatic Transaxle Control System (2):

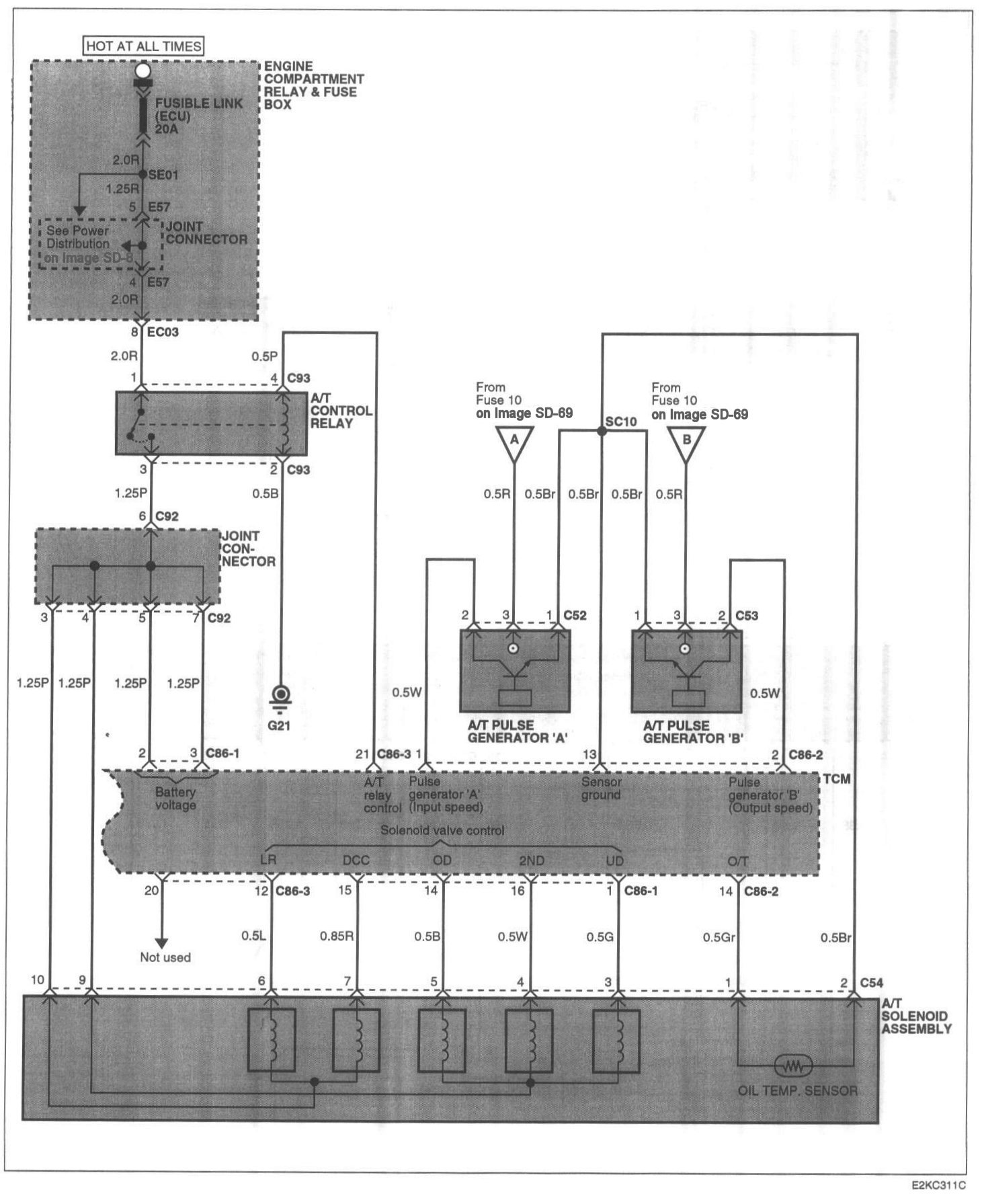

Image SD-70 Automatic Transaxle Control System (3):
