Electrical Diagrams

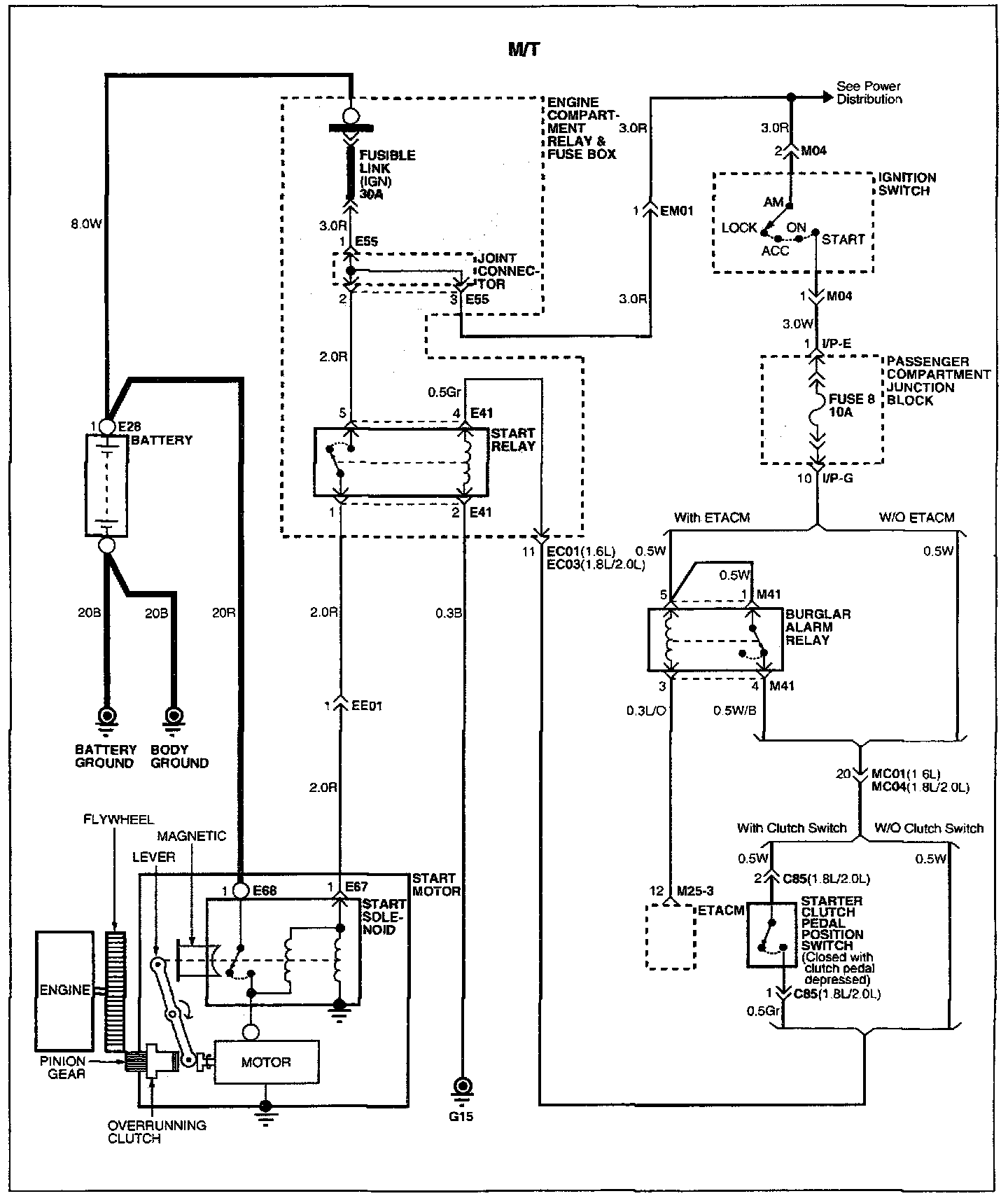

Image SD-52 Starting System (1):

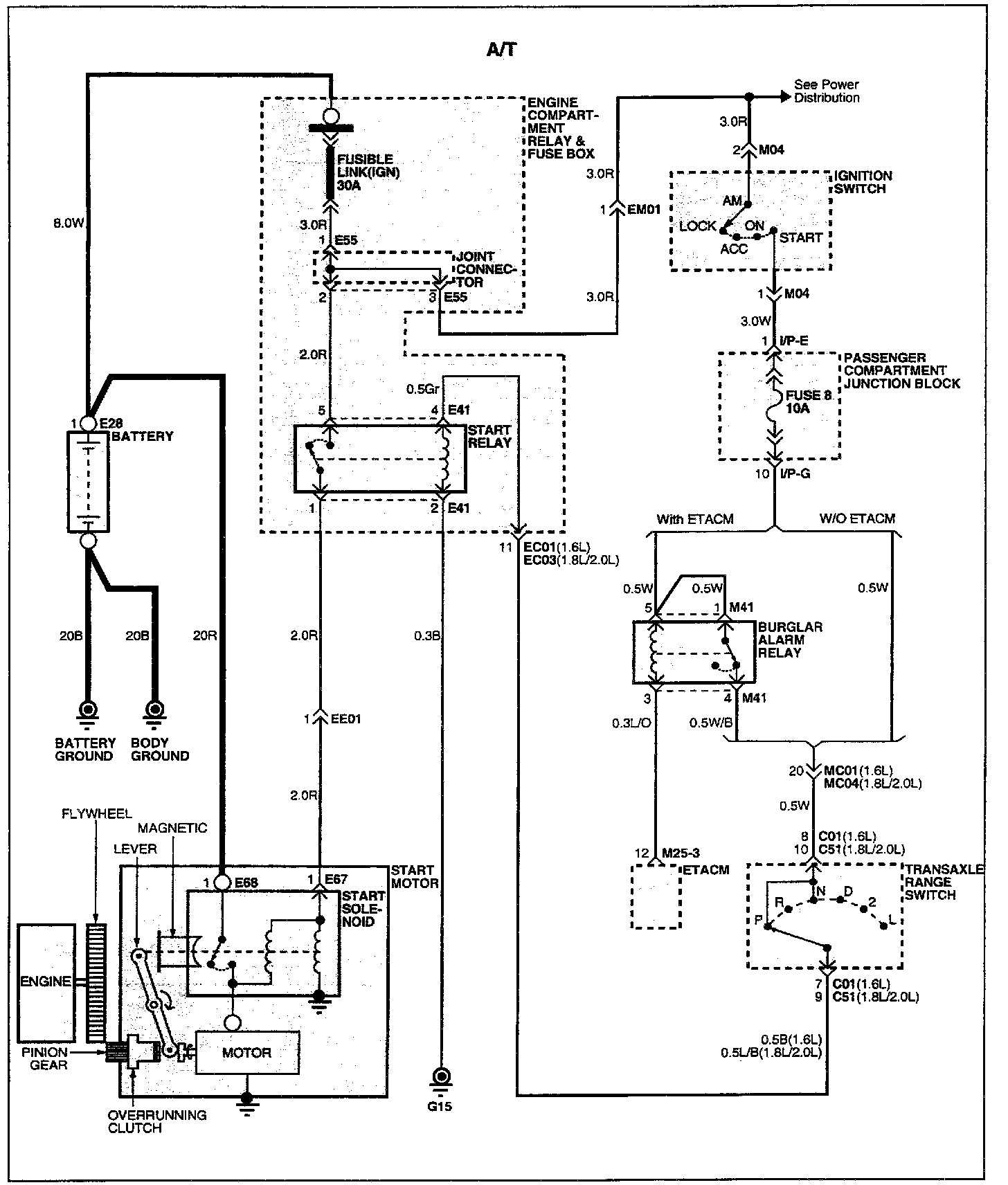

Image SD-53 Starting System (2):

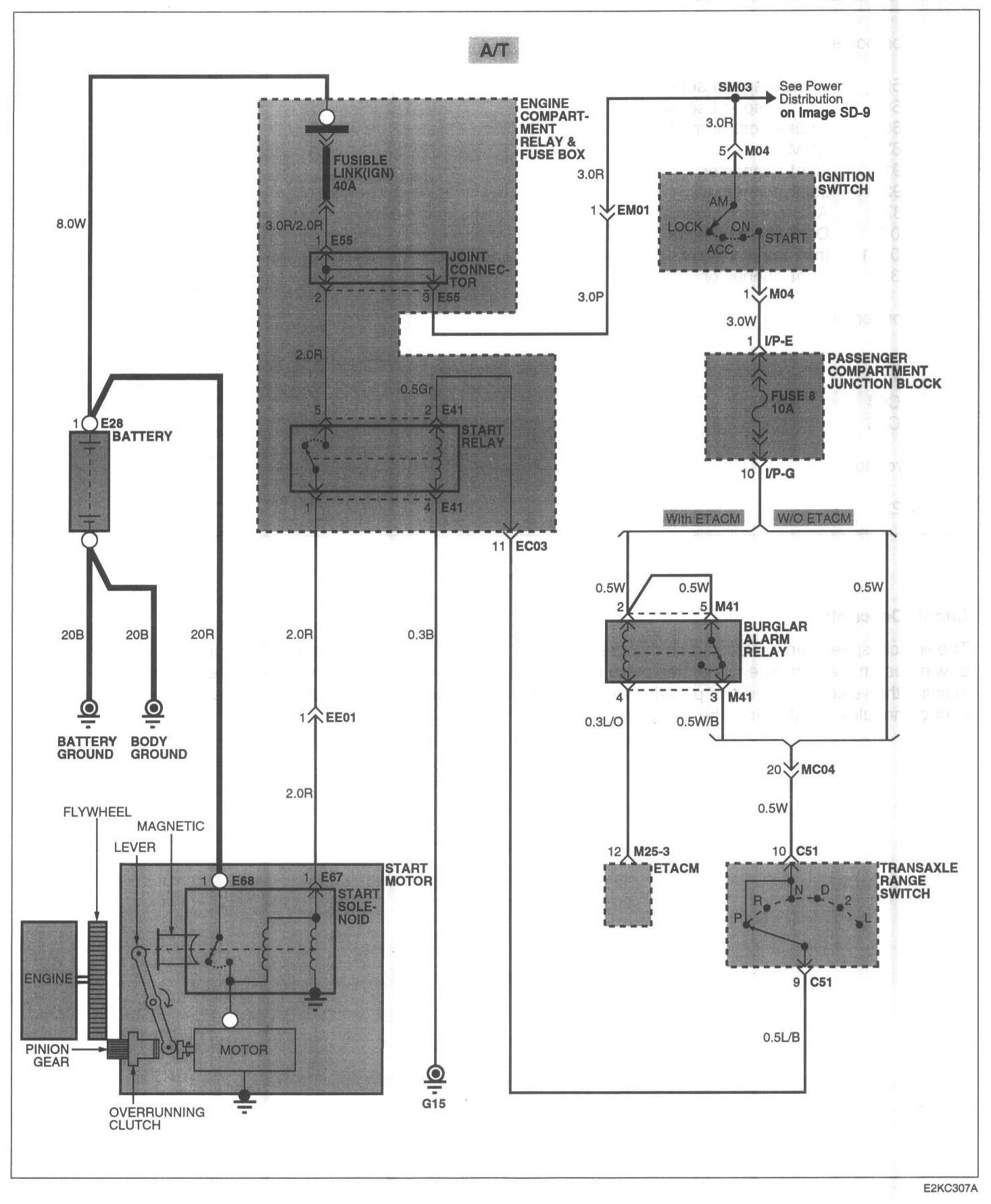

Circuit Diagram (A/T):

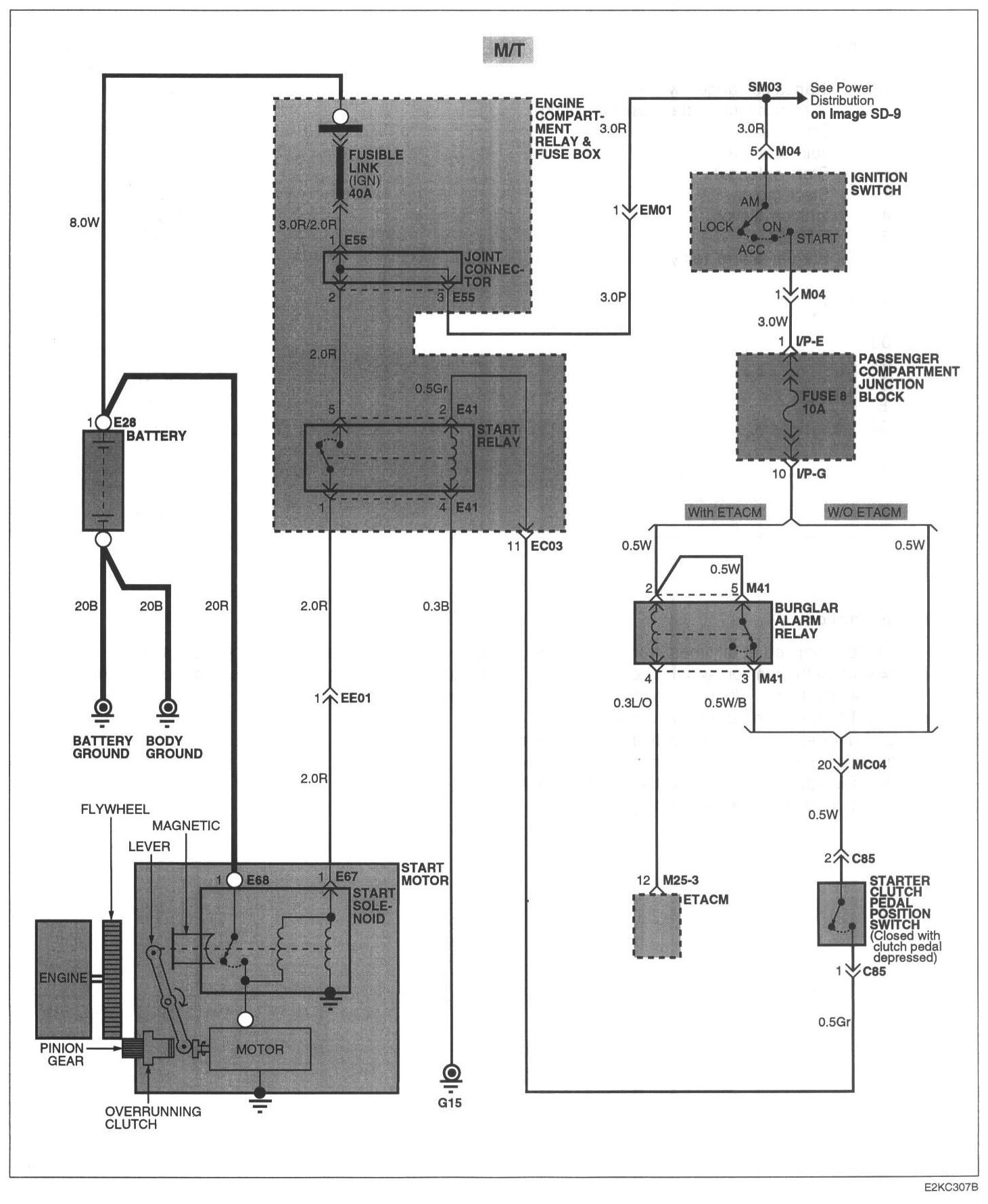

Circuit Diagram (M/T):
