Multiple Junction Connector: Locations

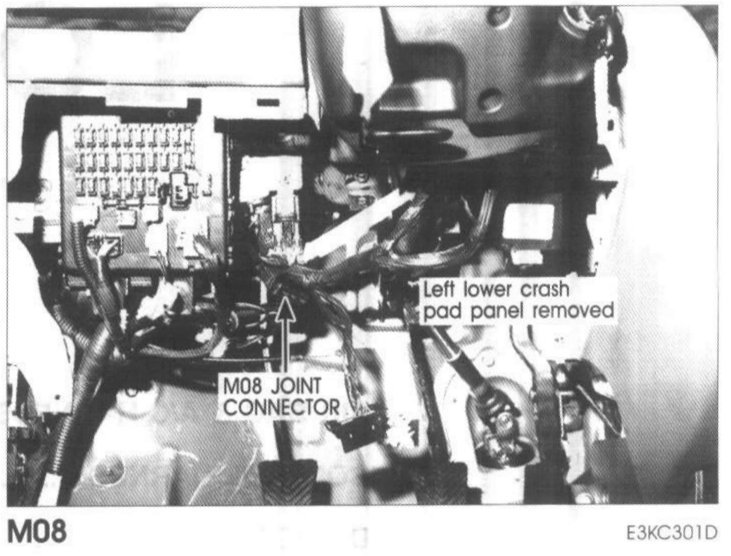

M08 Joint Connector:

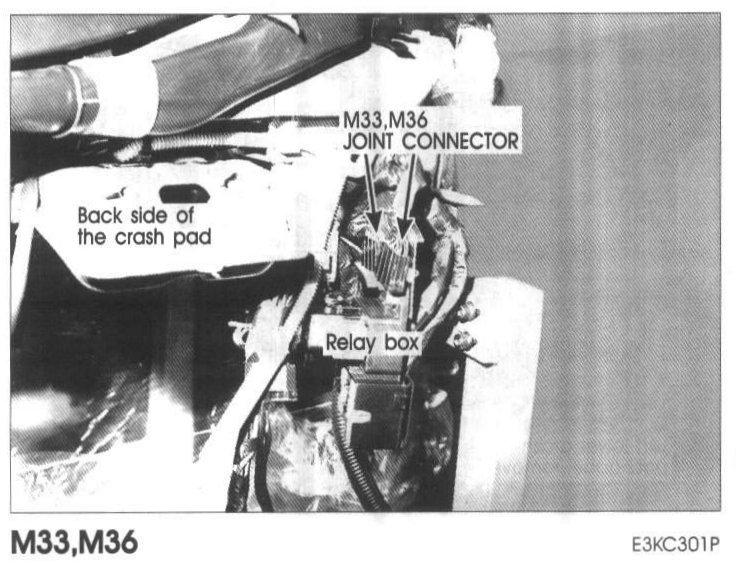

M33, M36 Joint Connector:

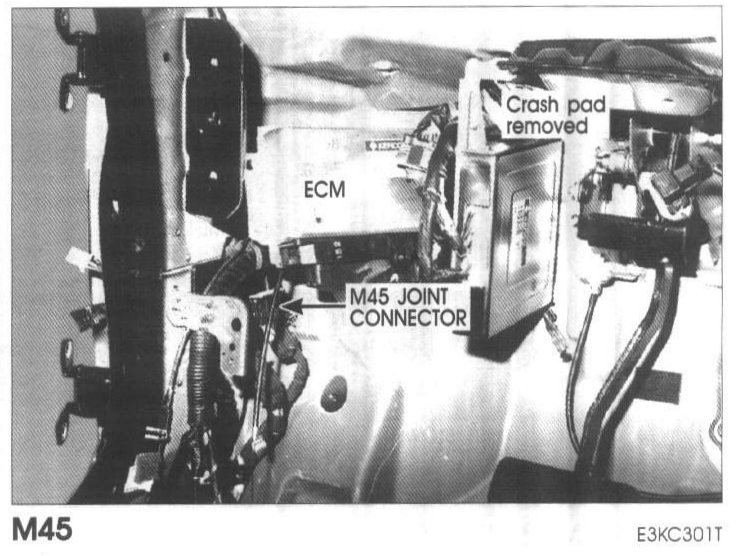

M45 Joint Connector:

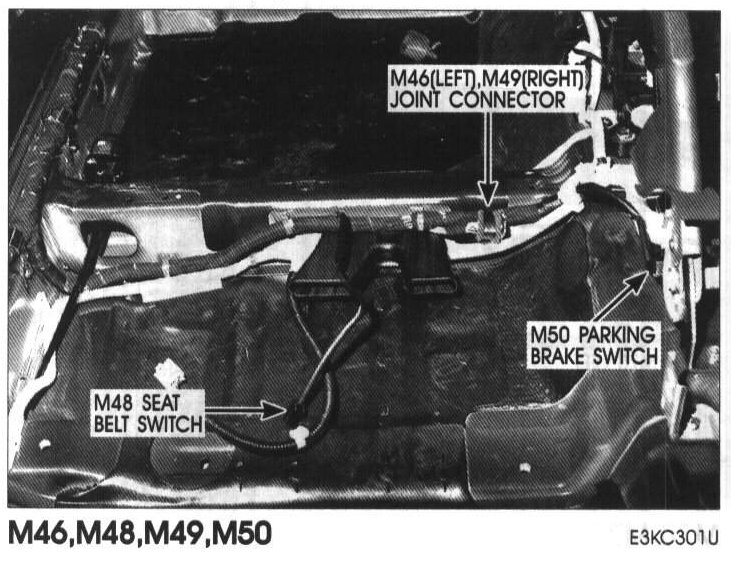

M46 (Left), M49 (Right) Joint Connector, M48 Seat Belt Switch, M50 Parking Brake Switch:

C86-1, C86-2, C86-3 TCM, C91, C92, Joint Connector, C93 A/T Control Relay:
