Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Grounding Point >> Locations

Grounding Point: Locations

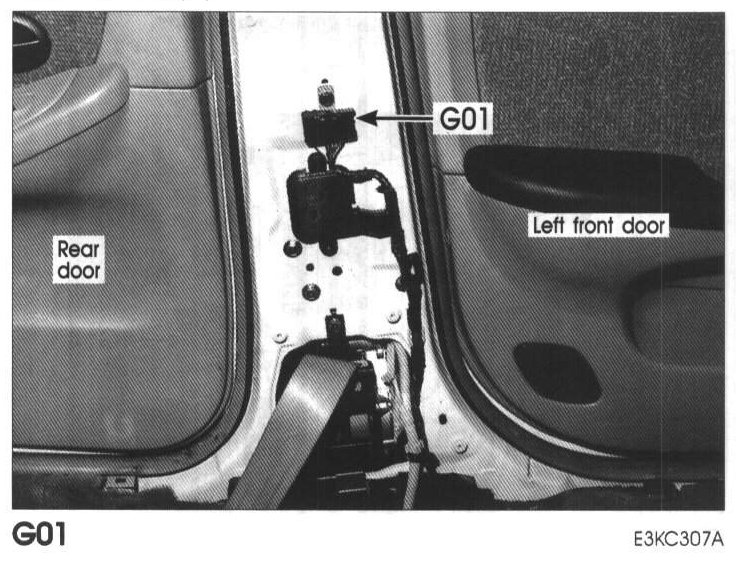

G01:

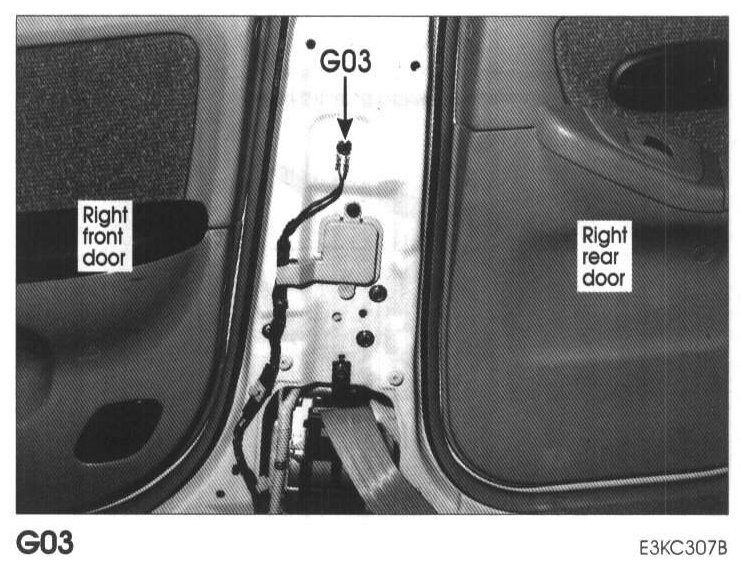

G03:

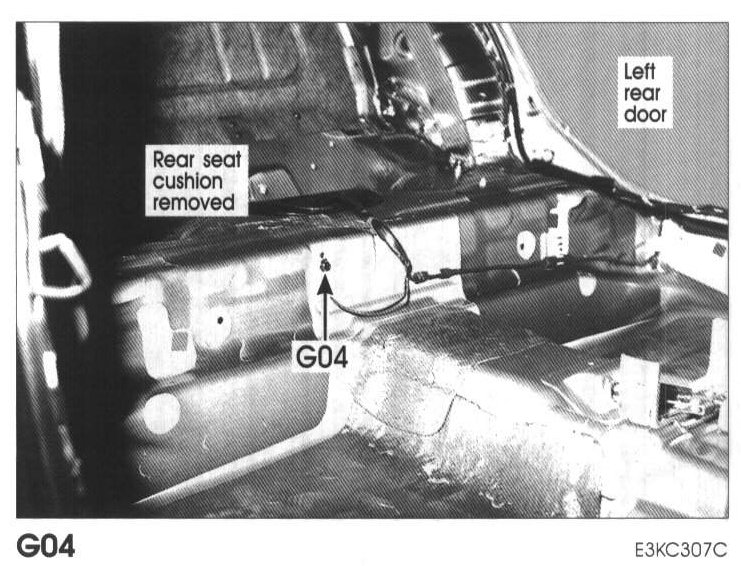

G04:

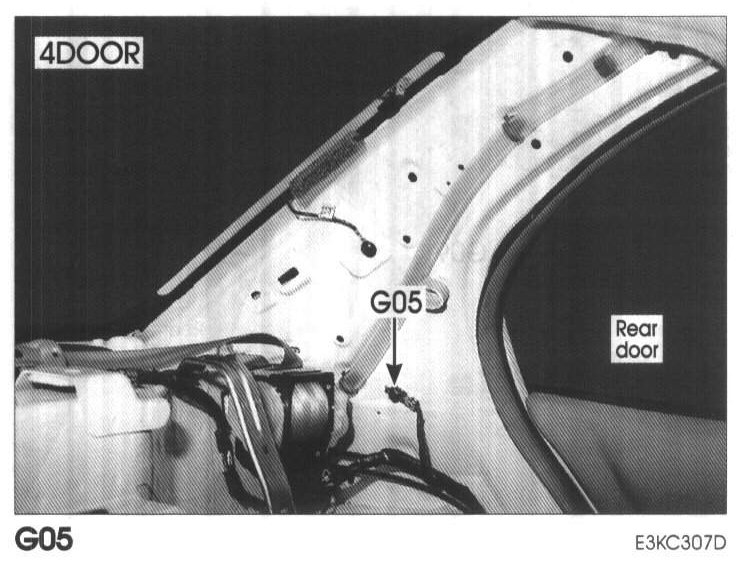

G05:

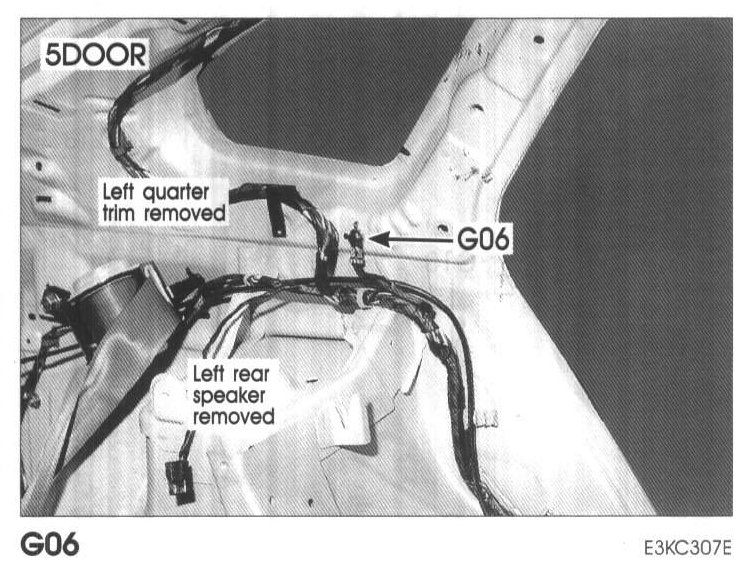

G06:

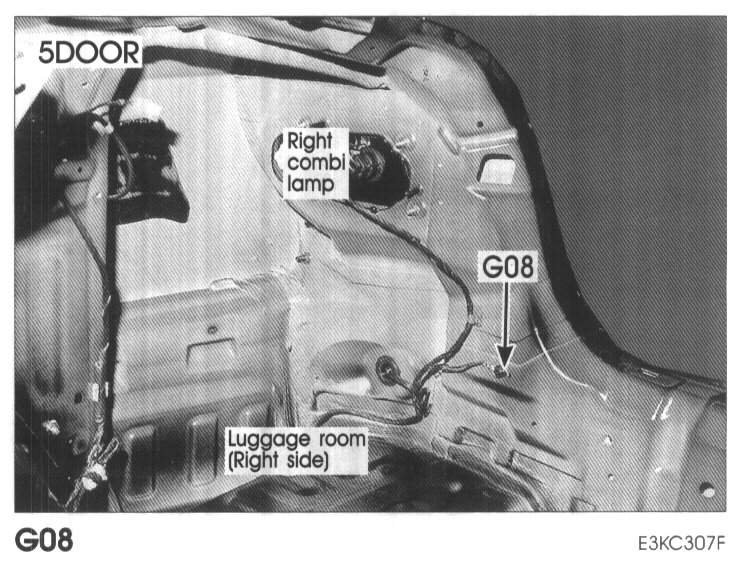

G08:

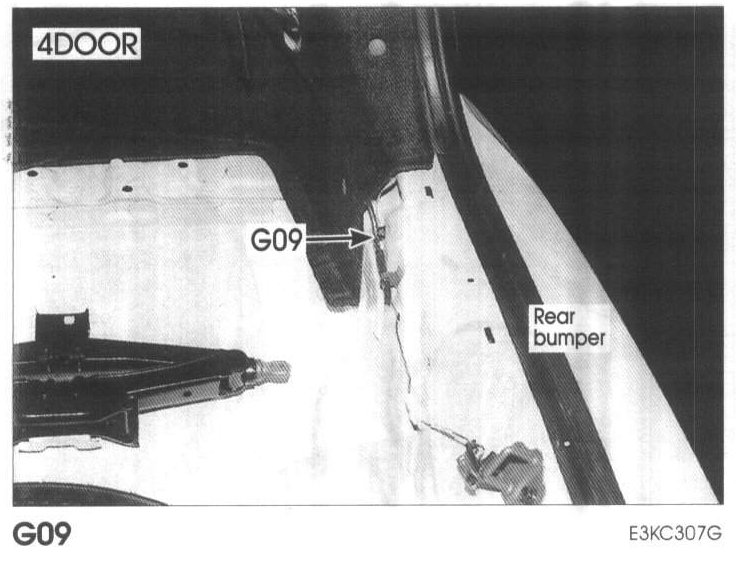

G09:

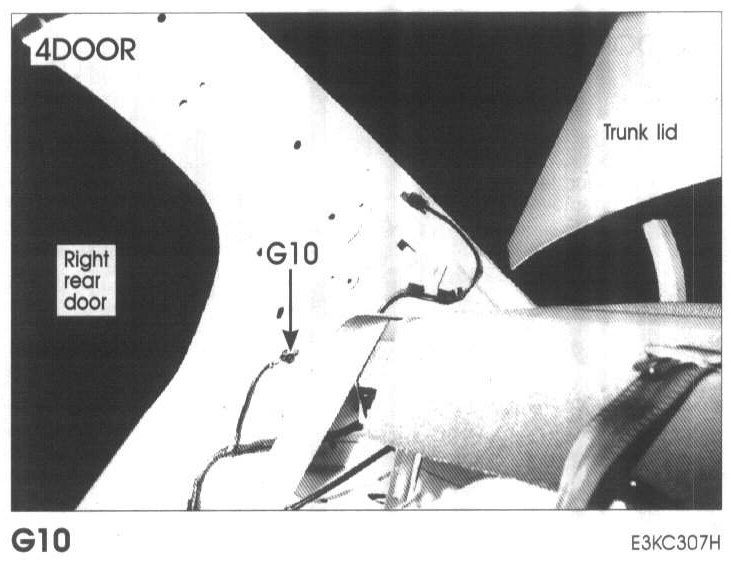

G10:

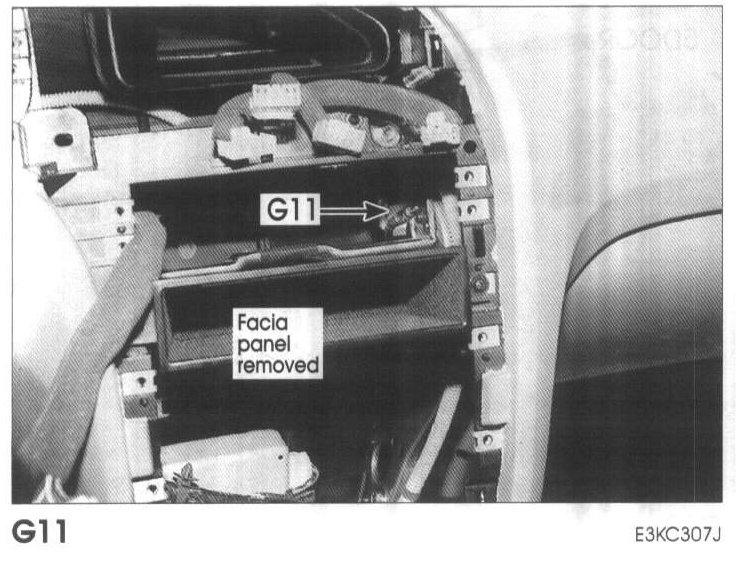

G11:

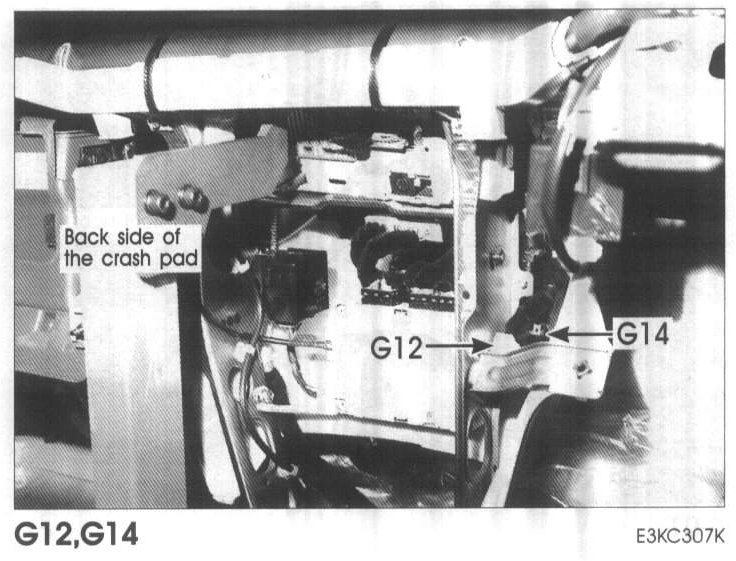

G12, G14:



G13:

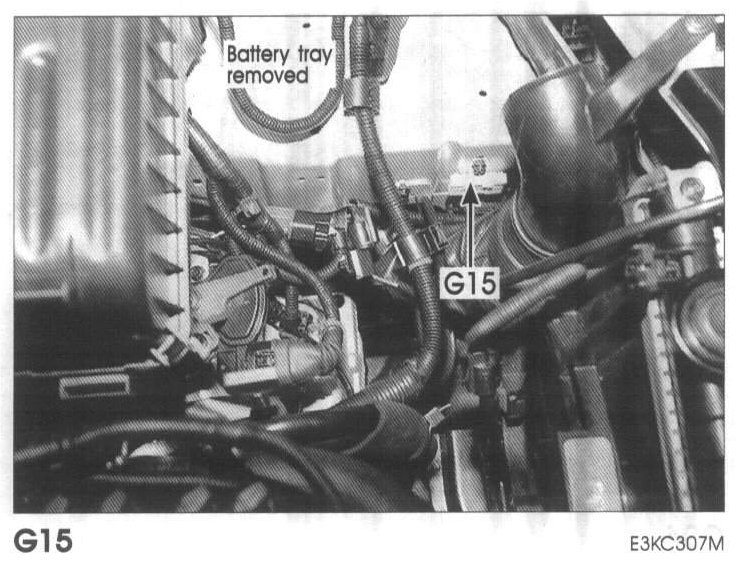

G15:

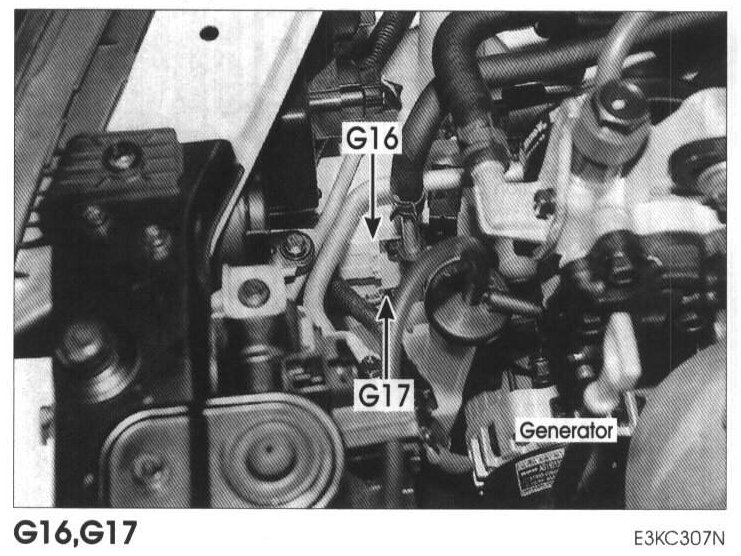

G16, G17:

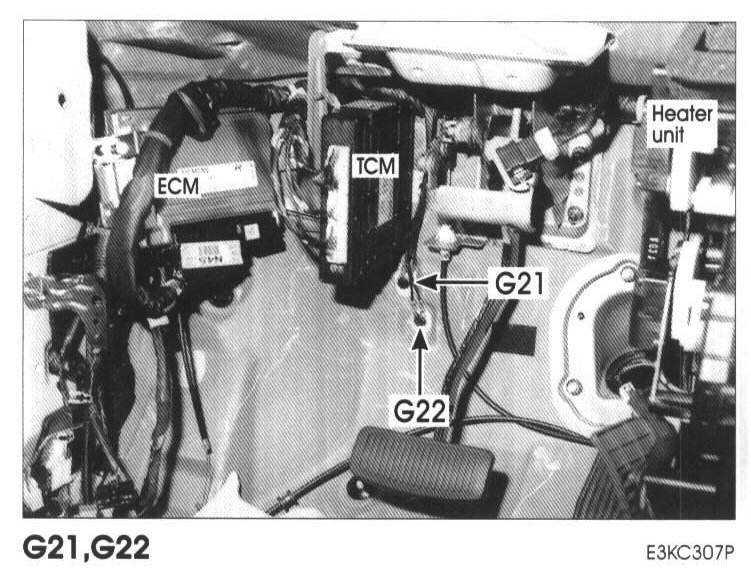

G21, G22:

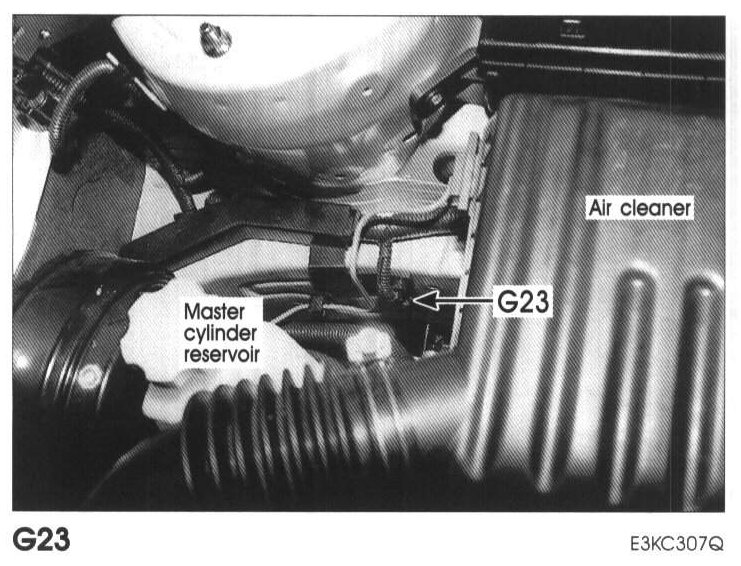

G23:

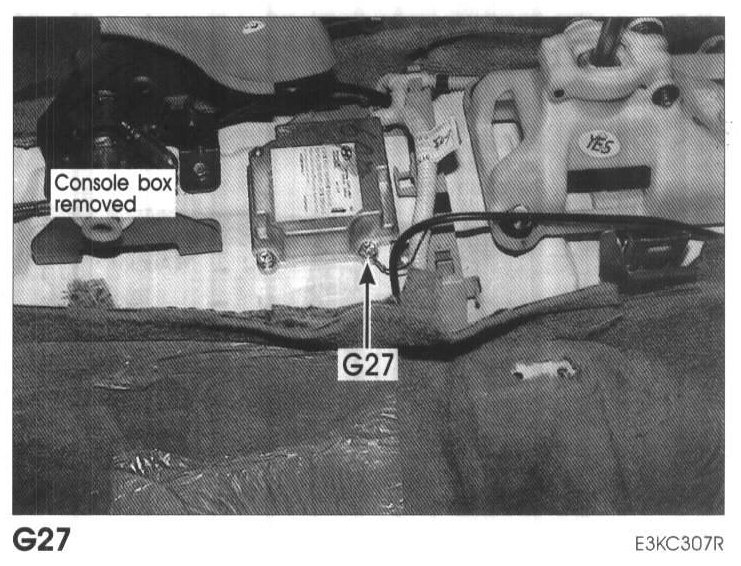

G27:

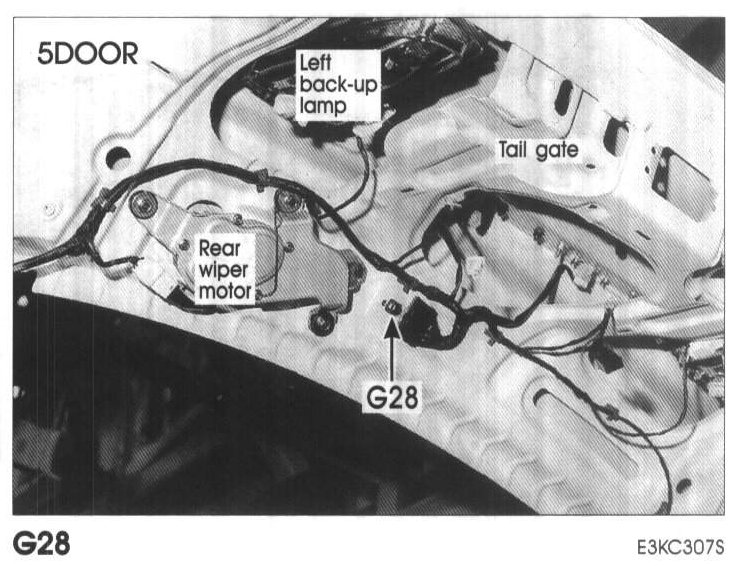

G28:



G29:
