Wiper Switch: Testing and Inspection

WINDSHIELD WIPER/WASHER SWITCH

Connector M0-01:

Wiper And Intermittent Volume Switch [M01-1]:

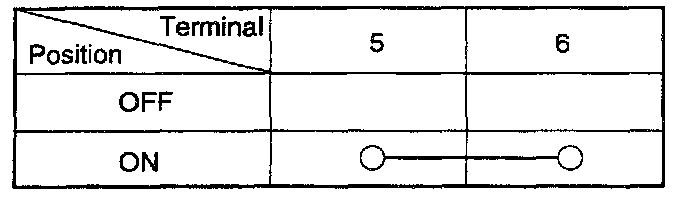

Washer Switch [M01-1]:

Check the switch for continuity between the terminals.

If continuity is not as specified, replace the wiper and washer switch.
