Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams >> Electrical Diagrams

Electrical Diagrams

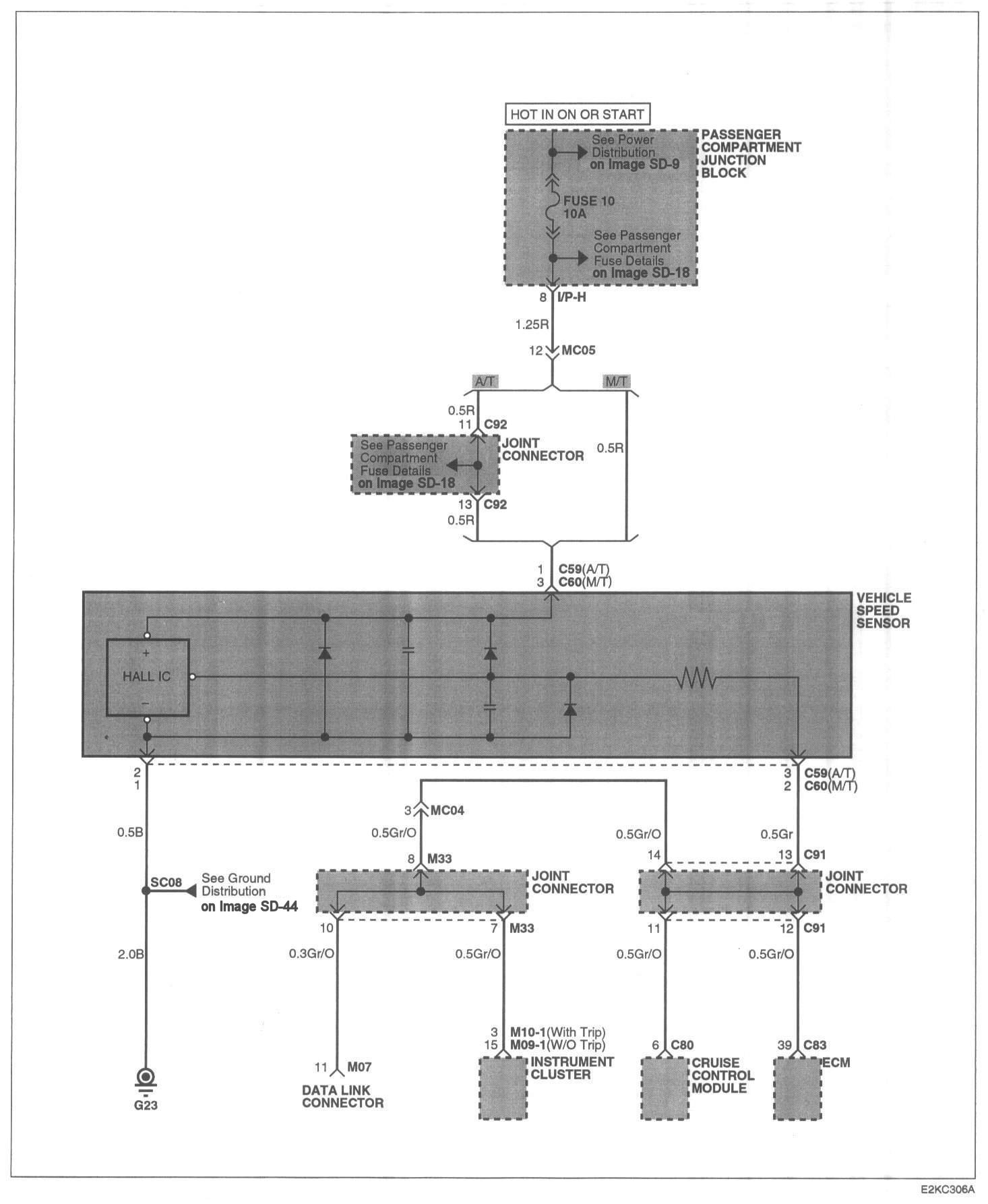

Image SD-50 Vehicle Speed Sensor (1):



Circuit Diagram:
