Combination Switch: Testing and Inspection

INSPECTION
Check the continuity between the terminals while operating the switch.

Lighting Switch [M01-2]:

Dimmer And Passing Switch (Connector No.: M 10-2):

Turn Signal And Lane Change Switch [M01-2]:

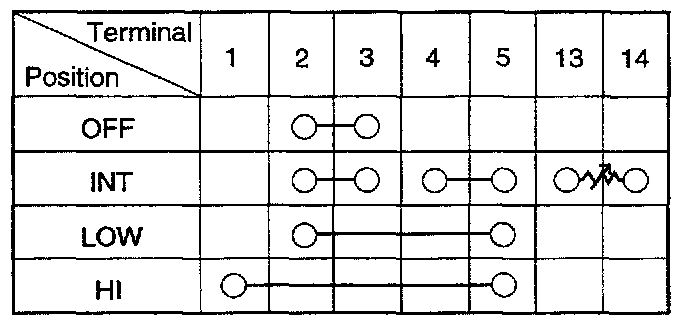

Wiper And Intermittent Volume Switch [M01-1]:

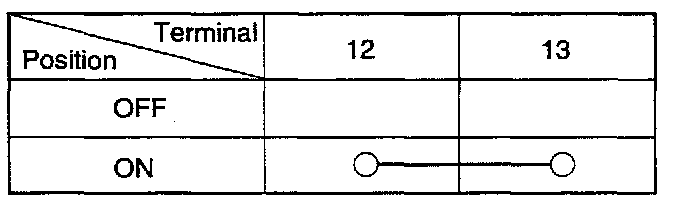

Washer Switch [M01-1]:

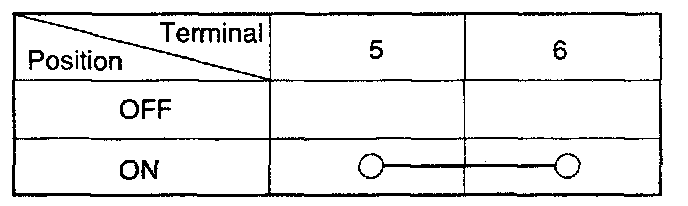

Front Fog Lamp Switch [M01-2]:
