Sunroof / Moonroof Switch: Testing and Inspection

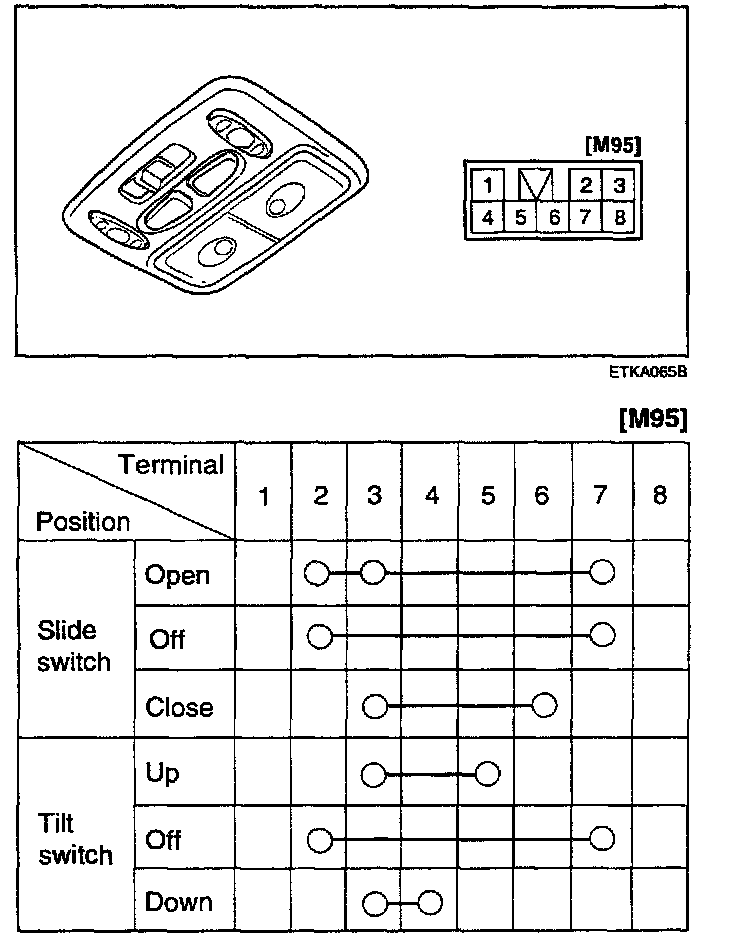

SUN ROOF SWITCH
1.
Using an ohmmeter, check for continuity between the terminals.
2.
If continuity is not as specified, replace the switch.
