Power Mirror Switch: Testing and Inspection

Mirror Switch:

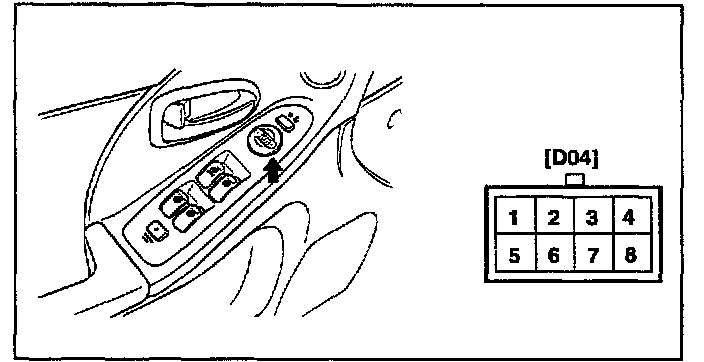

Mirror Folding Switch:

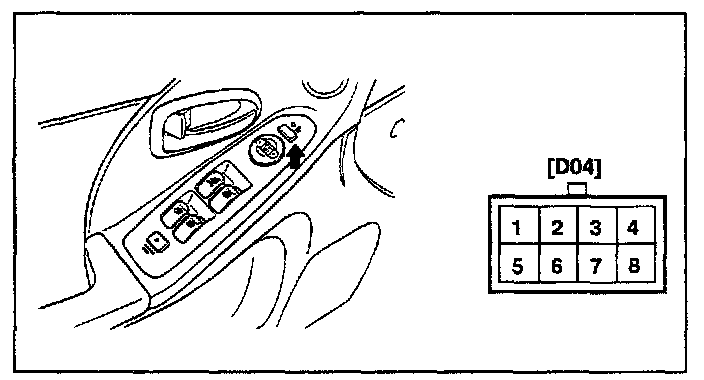

POWER DOOR MIRROR SWITCH
1. Remove the power door mirror switch from the door trim panel.

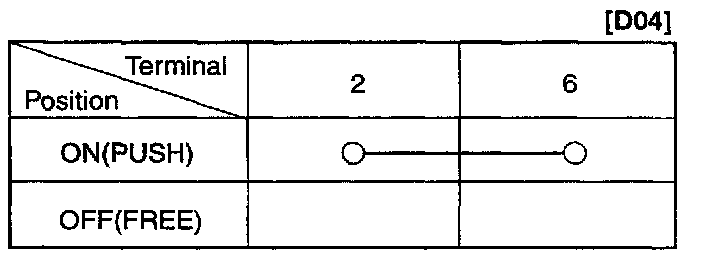

2. Check for continuity between the terminals in each switch position according to the table.
If continuity is not as specified replace the power door mirror switch.
