Seat Occupant Sensor: Locations

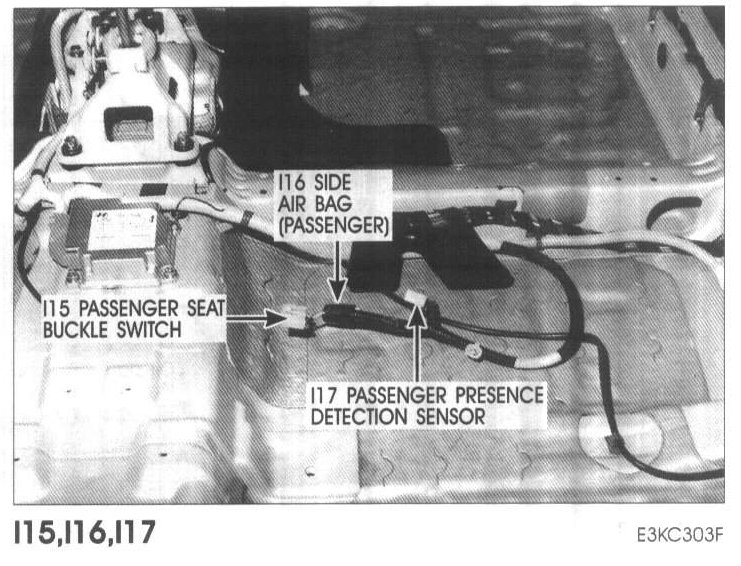

I15 Passenger Seat Buckle Switch, I16 Side Air Bag (Passenger), I17 Passenger Presence Detection Sensor:
