Impact Sensor: Locations

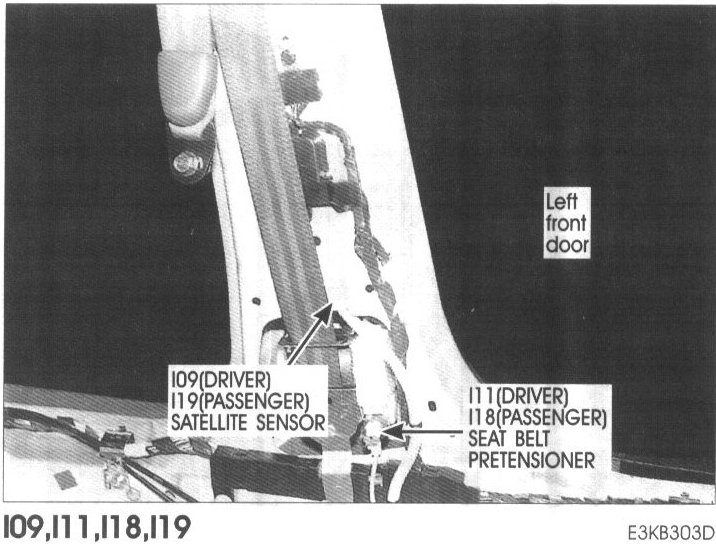

I09 Driver Satellite Sensor, I11 Driver Seat Belt Pretensioner, I18 Passenger Seat Belt Pretensioner, I19 Passenger Satellite Sensor:
