Seat Belt: Testing and Inspection

REAR SEAT LAP BELT AND BUCKLE

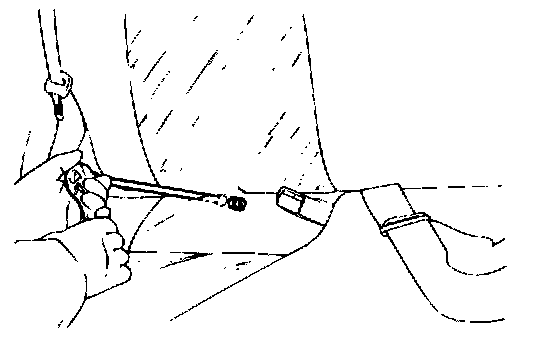

1. Remove the bolts holding the rear seat cushion.

Tightening torque
17 - 26 Nm (170 - 260 kg.cm, 12 - 19 lb.ft)




2. Remove the rear seat lap belt and buckle.

Tightening torque
40 - 55 Nm (400 - 550 kg.cm, 29 - 40 lb.ft)

3. Installation is the reverse of removal.
