Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Connector Locations

Connector Locations

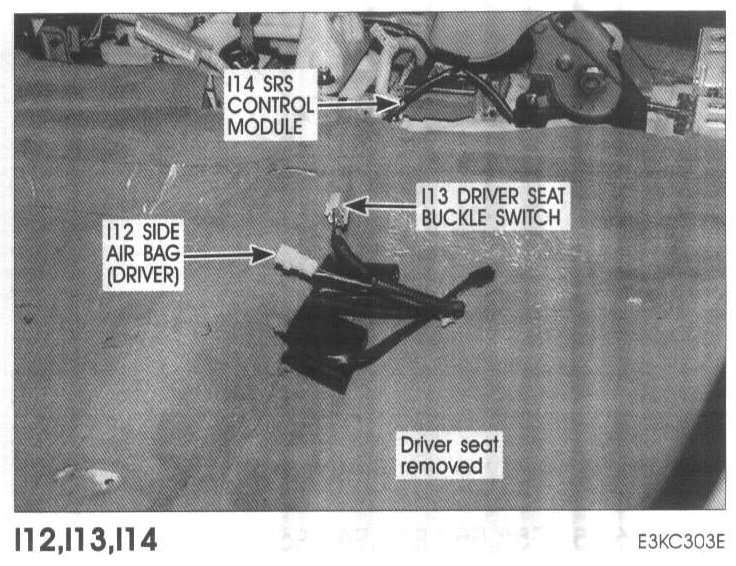

I12 Side Air Bag (Driver), I13 Driver Seat Buckle Switch, I14 SRS Control Module:
