Engine Control Module
>>
Locations
>>
Connector Locations
Connector Locations

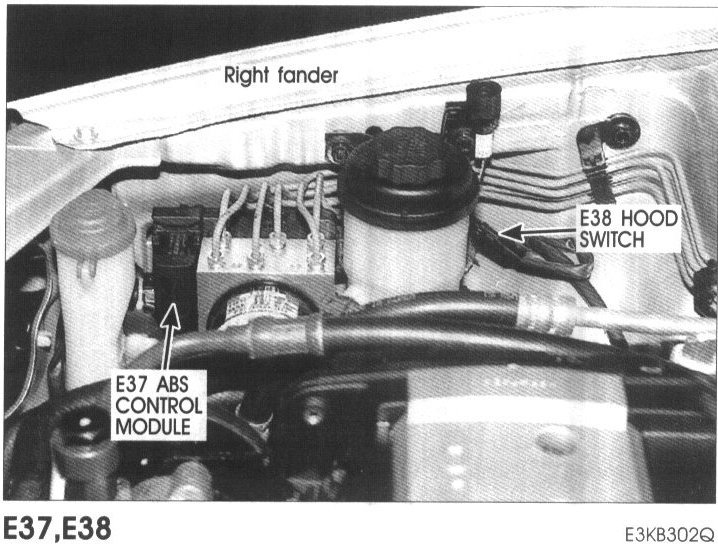

E37 ABS Control Module, E38 Hood Switch:

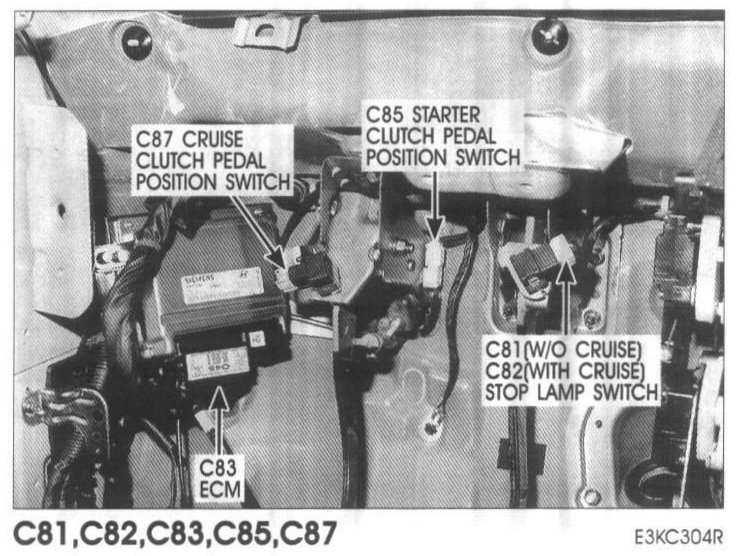

C85 C81(W/O Cruise), C82(With Cruise) Stop Lamp Switch, C83 ECM, C85 Starter Clutch Pedal Position Switch, C87 Cruise Clutch Pedal Position Switch (M/T):
