Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> System Relay >> Testing and Inspection

System Relay: Testing and Inspection

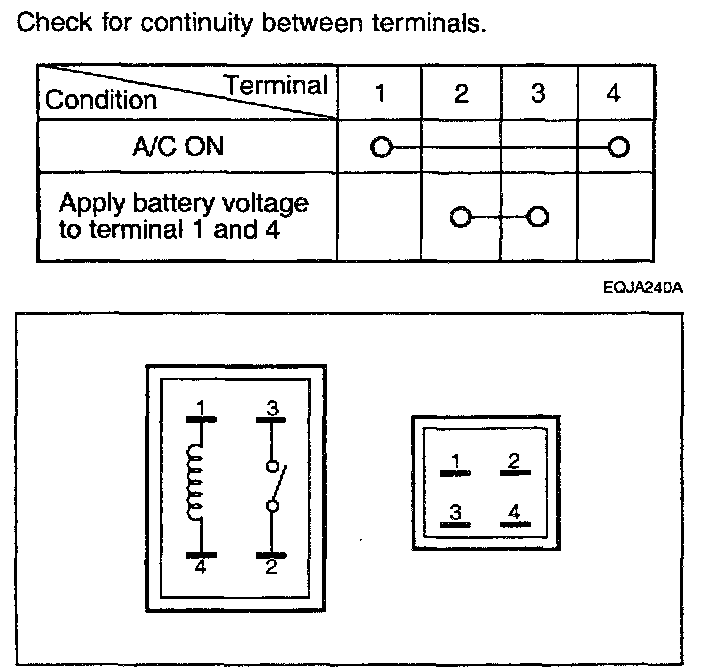

Air Conditioning Relay:
