Canada - A/T Controls - 2-3 Shift Flare

GROUP
ENGINE ELECTRICAL

NO.
02-36-003

DATE
JANUARY 25/02

MODEL
ELANTRA XD

SUBJECT

201 & 2002 MY ELANTRA XD TCM
REPROGRAMMING
- 2~3 SHIFT FLARE -
(FIELD FIX)

This bulletin is issued to inform you of a Transaxle Control Module (TCM) reprogramming procedure for certain 2001 & 2002 MY 2.0 litre Elantra XD vehicles (as specified below) that may experience a shift flare when the Automatic Transaxle changes from second to third gear (2~3).

If you encounter a 2001 or 2002 MY Elantra XD (as specified below) that has this symptom, perform your usual diagnostic routine, and if the condition still remains, we recommend that you follow the Service Procedure provided.

VEHICLES AFFECTED

2001 & 2002 MY 2.0 L Elantra XD vehicles, manufactured from January 3, 2001 up to and including November 21, 2001

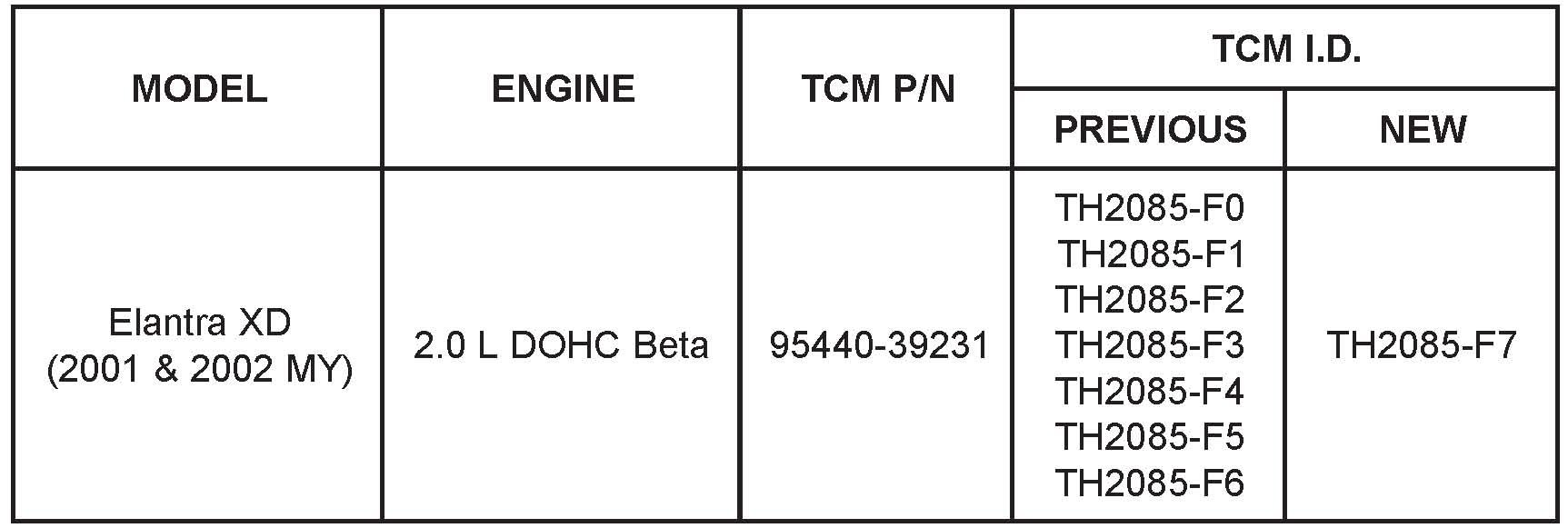

TCM SPECIFICATIONS

SERVICE PROCEDURE

Reprogramming Cautions

1. Do not start the engine during the procedure.

2. Do not switch the ignition key OFF during the procedure.

3. Do not disconnect any wiring connectors during the procedure.

4. Do not switch the Hi-Scan Pro OFF during the procedure.

5. After reprogramming is complete, disconnect the Hi-Scan Pro from the vehicle, wait at least 20 seconds with the ignition key in the OFF position, then start the engine and let it run for one minute.

6. Remove the reprogramming software card from the Hi-Scan Pro and re-install the diagnostic software card. Connect the Data Link Connector cable to the Data Link Connector and check for Diagnostic Trouble Codes (DTCs). Erase if any appear.

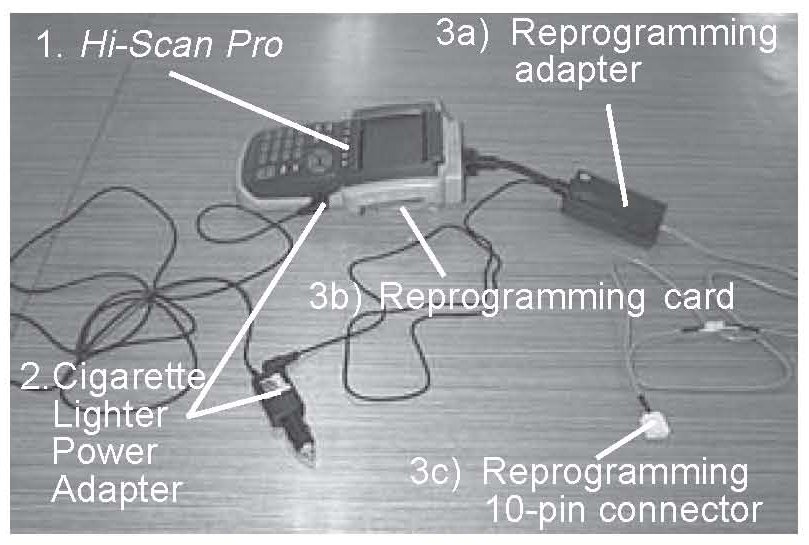

Hi-Scan Pro Setup

1. Remove the Data Link Connector (DLC) cable from your Hi-Scan Pro.

2. Remove both the software card and the troubleshooting card from your Hi-Scan Pro.

3. Attach the reprogramming adapter to the same terminal that the DLC cable was connected (see Step #1) and tighten the two thumb screws.

4. Insert the reprogramming software card into the upper slot of your Hi-Scan Pro.
(This is the same reprogramming software card from previous Campaigns/Recalls, but with the new reprogramming software update sent with this, 02-36-xxx, and 02-36-xxx.)

5. Connect the cigarette lighter power adapter to the power connector port of your Hi-Scan Pro.

6. Connect the reprogramming adapter power wire to the power connector port in the body of the cigarette lighter power adapter.

7. Connect the white reprogramming 10-pin connector to the reprogramming adapter wire.

8. Insert the cigarette lighter power adapter into the cigarette lighter of the vehicle.

9. Connect the white reprogramming 10-pin connector to the matching connector located directly beside the Data Link Connector (DLC) in the vehicle.

Automatic Update Procedure

1. Once the Hi-Scan Pro has been set up and connected to the vehicle as described on the previous page turn the ignition switch to the ON position.

2. Turn the Hi-Scan Pro ON.

3. Press "ENTER" at the first screen.

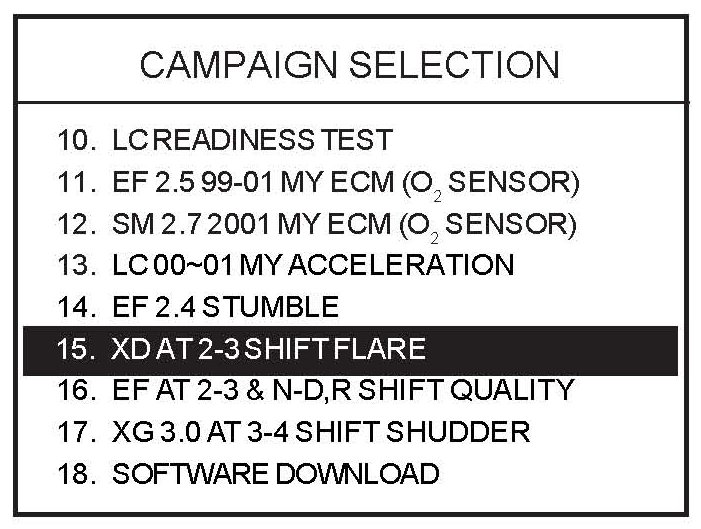

4. Select option "15. XD AT 2-3 SHIFT FLARE" and press "ENTER."

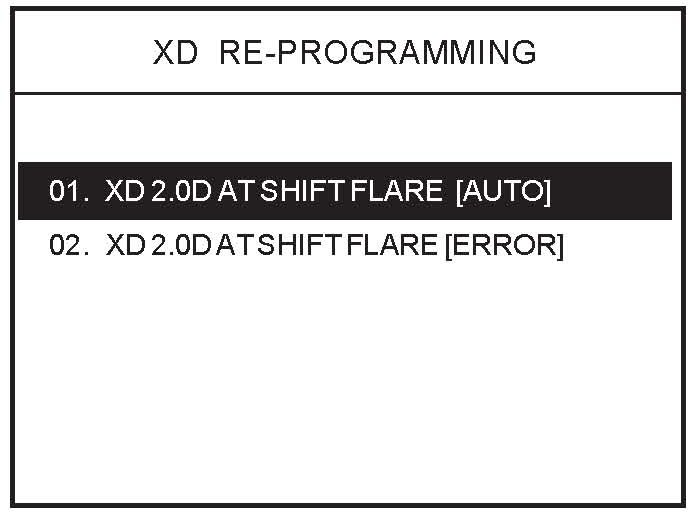

5. Select option "01. XD 2.0D AT SHIFT FLARE [AUTO]" and press "ENTER."

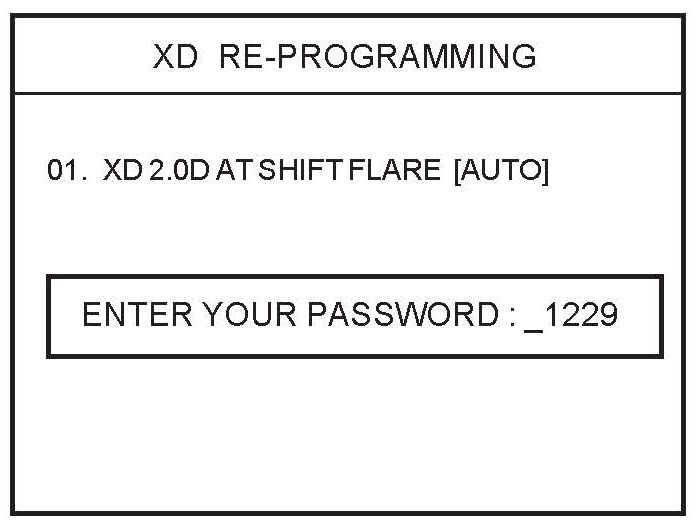

6. Enter the password 1229 and press "ENTER."

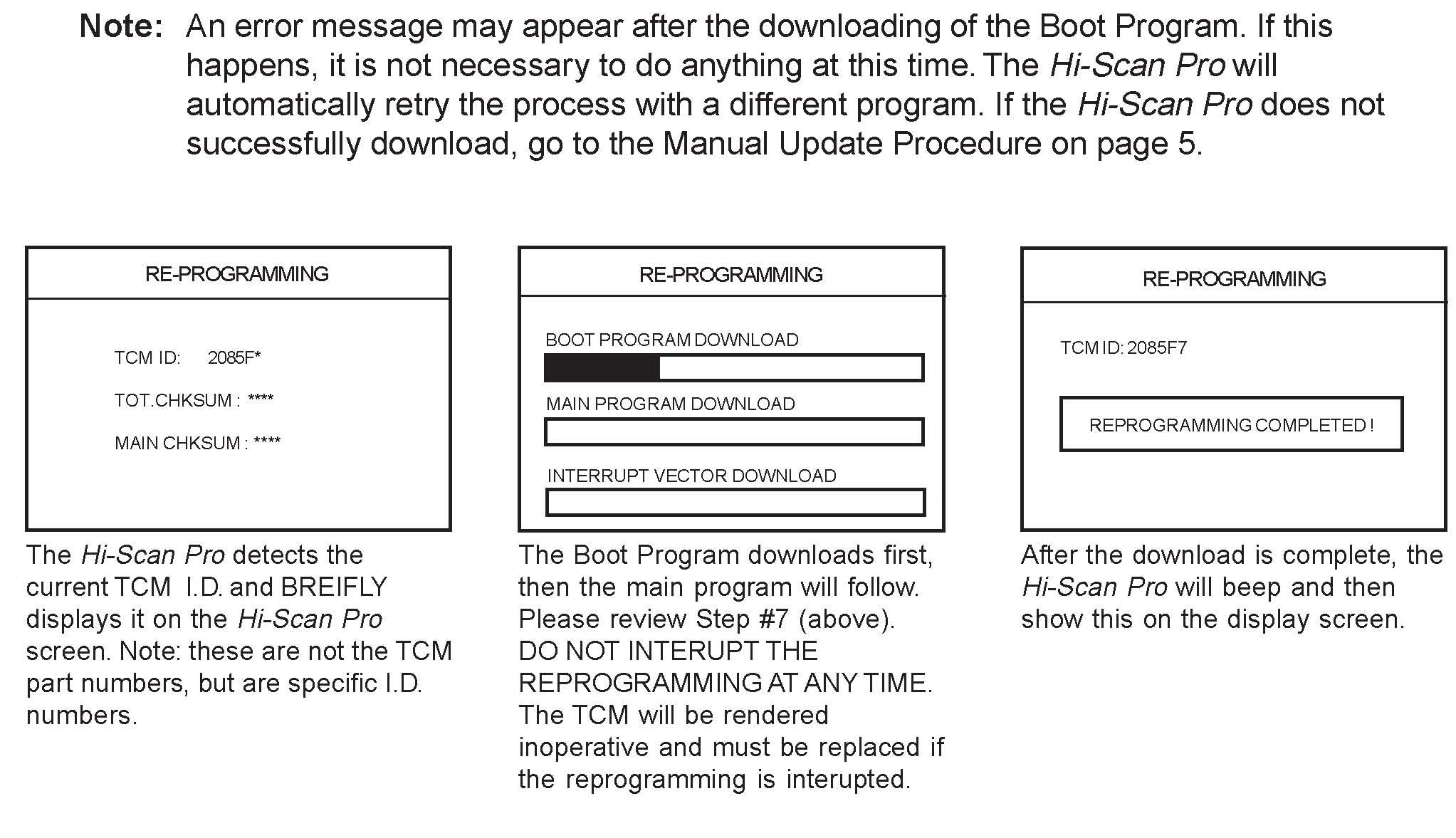

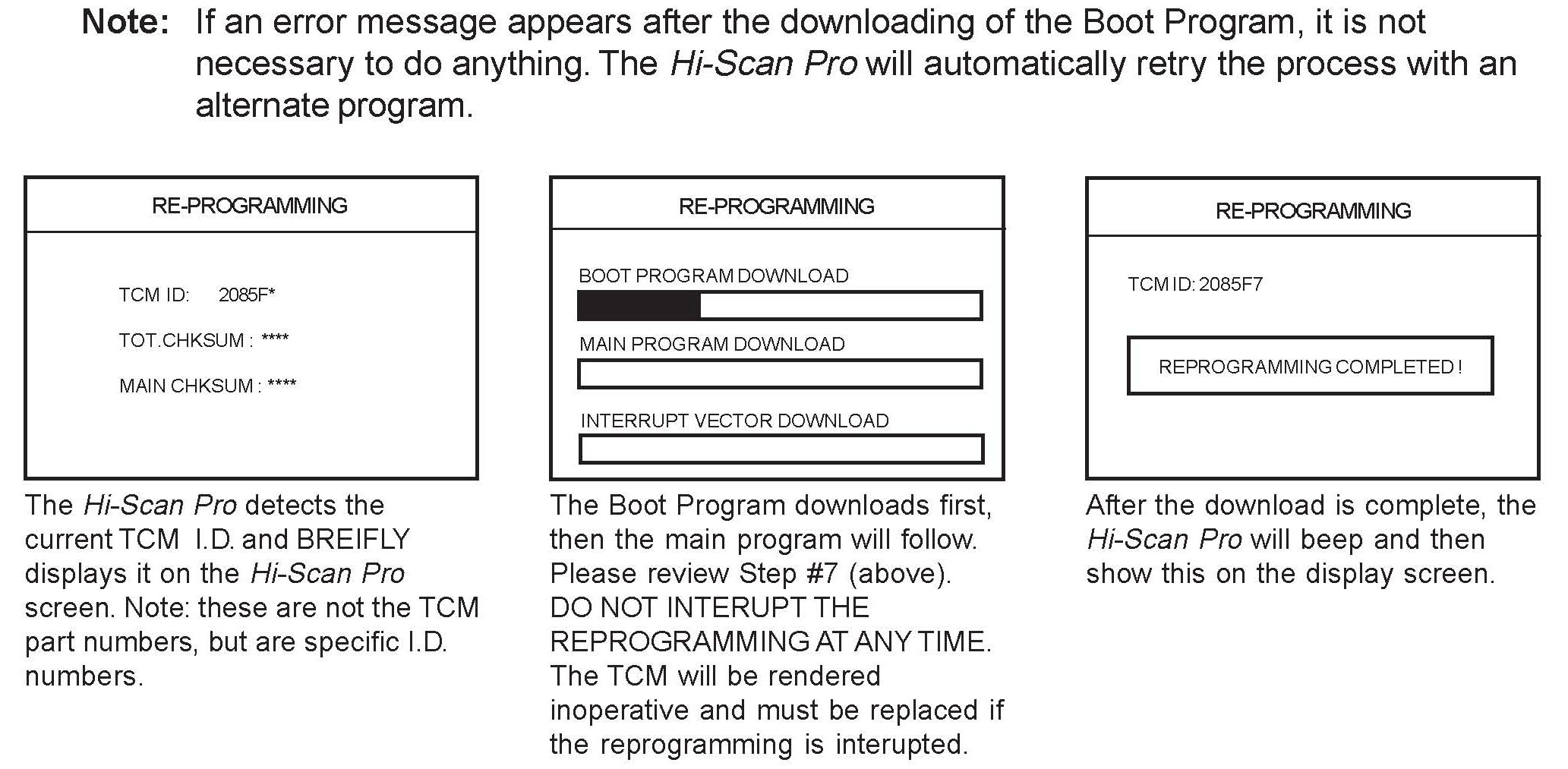

7. From this point the Hi-Scan Pro is checking and automatically reprogramming the TCM.

8. when the "COMPLETED" message appears the reprogramming was successful To complete the new reprogramming and be sure it is retained in the TCM's memory turn the Hi-Scan Pro OFF and disconnect, turn the ignition switch to the OFF position for 20 seconds, then start the engine and let it run for one minute.

Manual Update Procedure

In the event menu option "01. XD 2.0D AT SHIFT FLARE [AUTO]" fails to download the new TOM program, option "02. XD 2.0D AT SHIFT FLARE [ERROR]" must be used.

1. Set-up the Hi-Scan Pro as described in Hi-Scan Pro Setup, then turn the ignition switch to the ON position.

2. Turn the Hi-Scan Pro ON.

3. Press "ENTER" at the first screen.

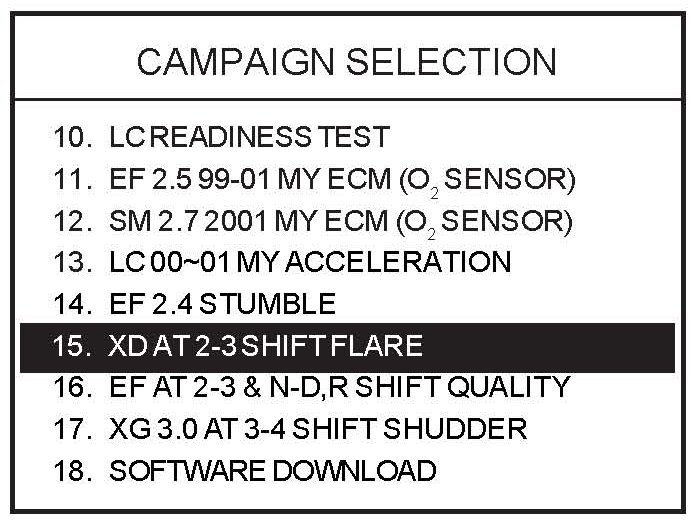

4. Select option "15. XD AT 2-3 SHIFT FLARE" and press "ENTER."

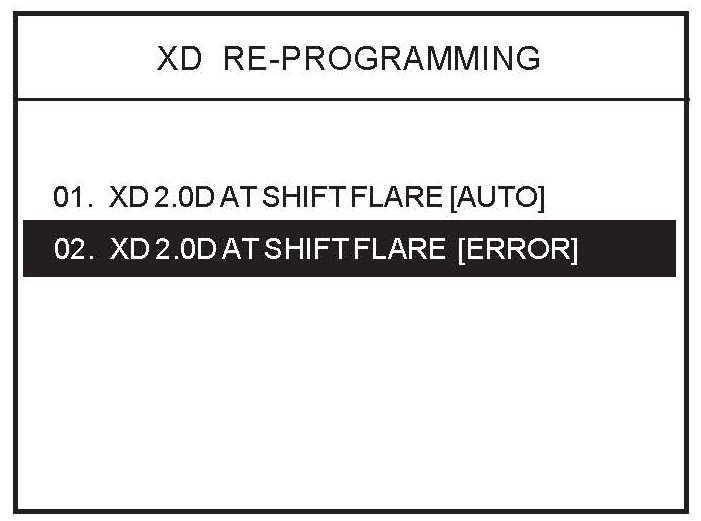

5. Select option "02. XD 2.0D AT SHIFT FLARE [ERROR]" and press "ENTER."

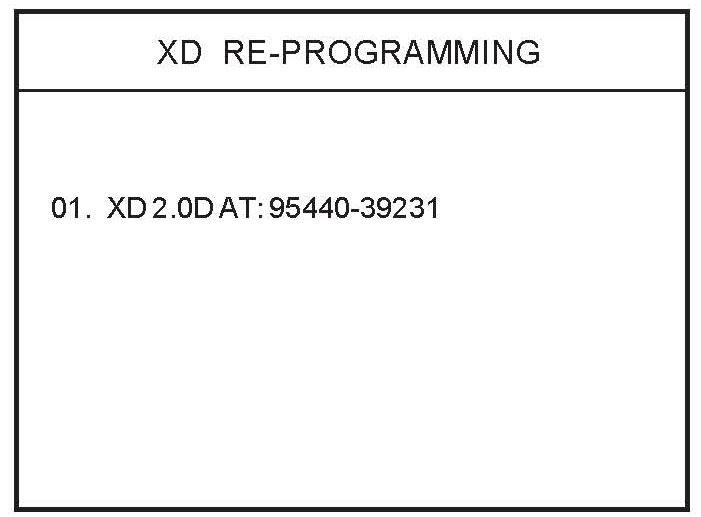

6. Select option "01. XD 2.0D AT: 95440-39231" and press "ENTER".

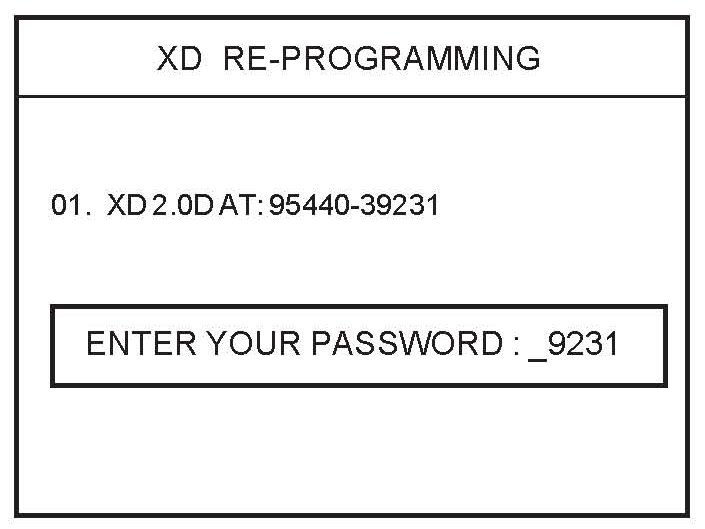

7. Enter the password "9231" and press "ENTER".

Note:
Once the password has been entered and accepted, the rest of the process is exactly the same as the automatic update procedure.





8. From this point the Hi-Scan Pro is checking and automatically reprogramming the TCM.

9. when the "COMPLETED" message appears, the reprogramming was successful. To complete the new reprogramming and be sure it is retained in the TCM's memory turn the Hi-Scan Pro OFF and disconnect, turn the ignition switch to the OFF position for 20 seconds, then start the engine and let it idle for one minute.

ERROR MESSAGES

1. INVALID PASSWORD: Please enter the password again.
2. REPROGRAMMING ERROR PLEASE WAIT FOR RETRY: An error occurred during reprogramming. The Hi-Scan Pro will retry reprogramming automatically.
3. THIS ECU IS DIFFERENT TYPE: This procedure does not apply to this vehicle.
4. ALREADY REPROGRAMMED: The reprogramming has already been performed on this ECM.
5. REPROGRAMMING ERROR PLEASE CHECK THE SYSTEM : An error occurred during the reprogramming.You must use the MANUAL MODE.

WARRANTY INFORMATION:

Normal warranty policies and procedures apply.
