Ignition Switch: Testing and Inspection

Ignition Switch/Key Lock Solenoid:




INSPECTION

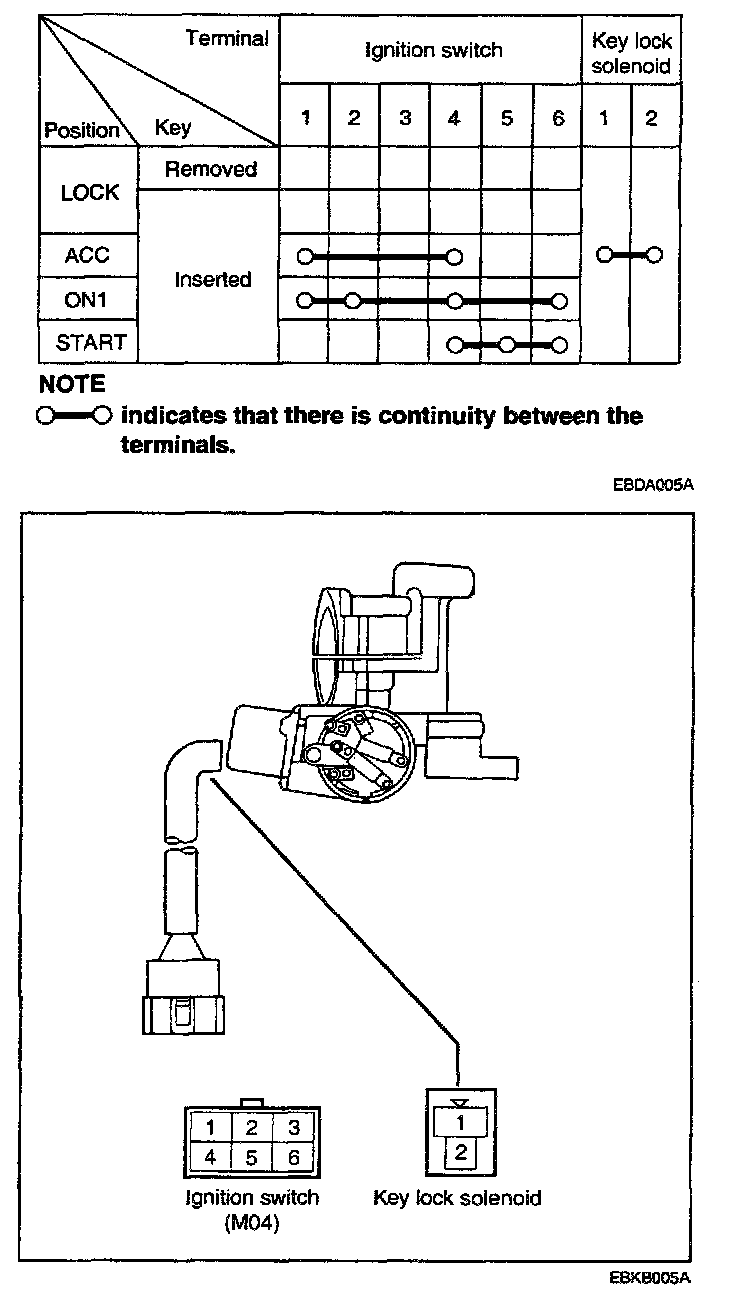

1. Remove the connector located under the steering column.
2. Check for continuity between terminals.
