A/T - Diagnostic Trouble Codes

Group:
TRANSAXLE

Number:
02-40-011

Date:
03-2002

Model:
Elantra 2001-2002
Santa Fe 2001-2002
Sonata 1999-2002
XG 300 2001
XG 350 2002

Subject:
AUTOMATIC TRANSAXLE DIAGNOSTIC TROUBLE CODES

DESCRIPTION:

Transaxle Diagnostic Trouble Codes (DTCs) for the 1999-2002 Sonata, 2001-02 Elantra, 2001-02 Santa Fe and XG300/350 are found in the "Automatic Transaxle" menu of the Hi-Scan Pro. DTCs for the 1999 Sonata 2.4L produced prior to May 3, 1999 are found in the "Engine" menu.

NOTE
When servicing these vehicles for a driveability condition, check for DTCs in both "Engine" and "Automatic Transaxle" menus. When cancelling DTCs, it is necessary to cancel codes separately in both menus.

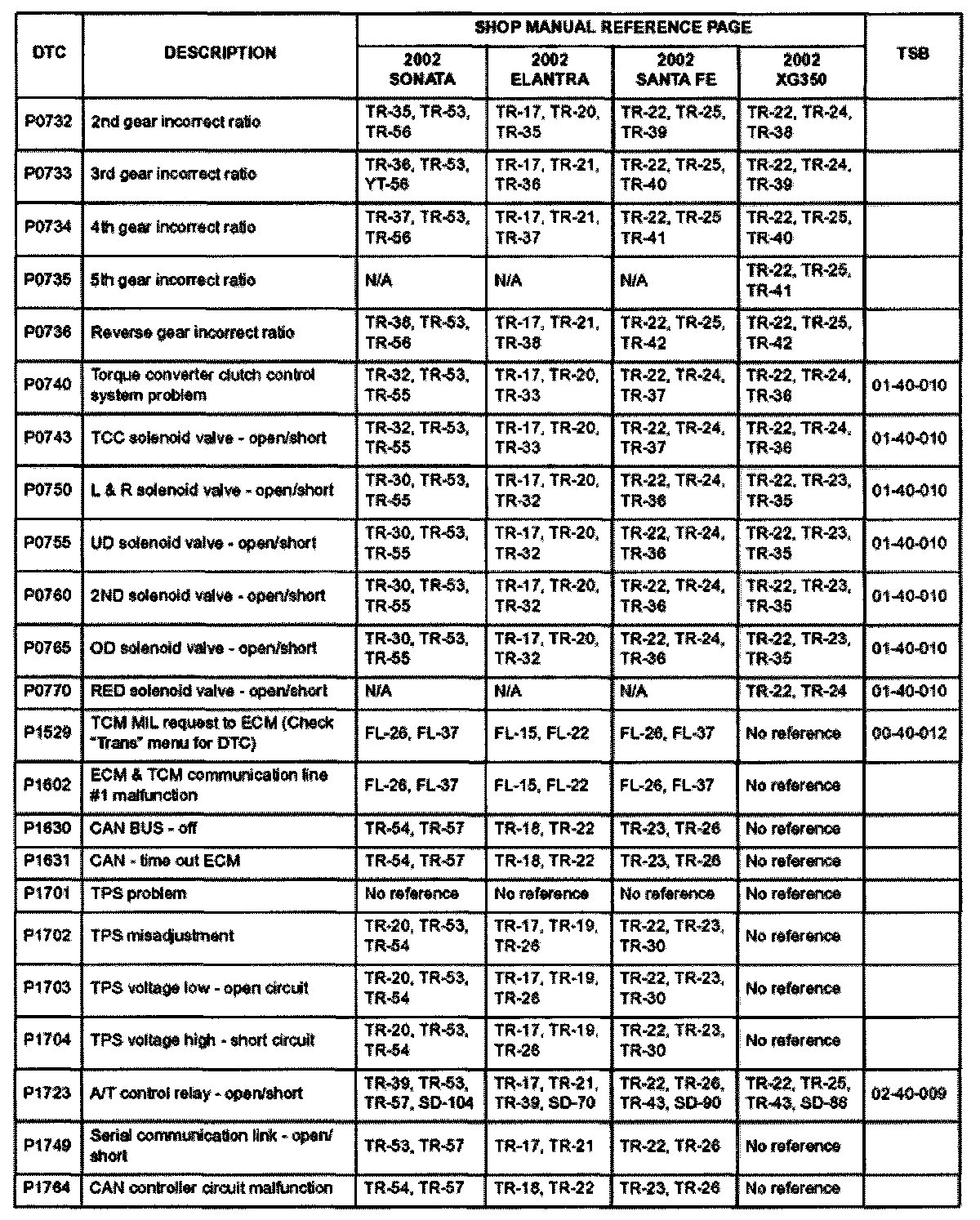

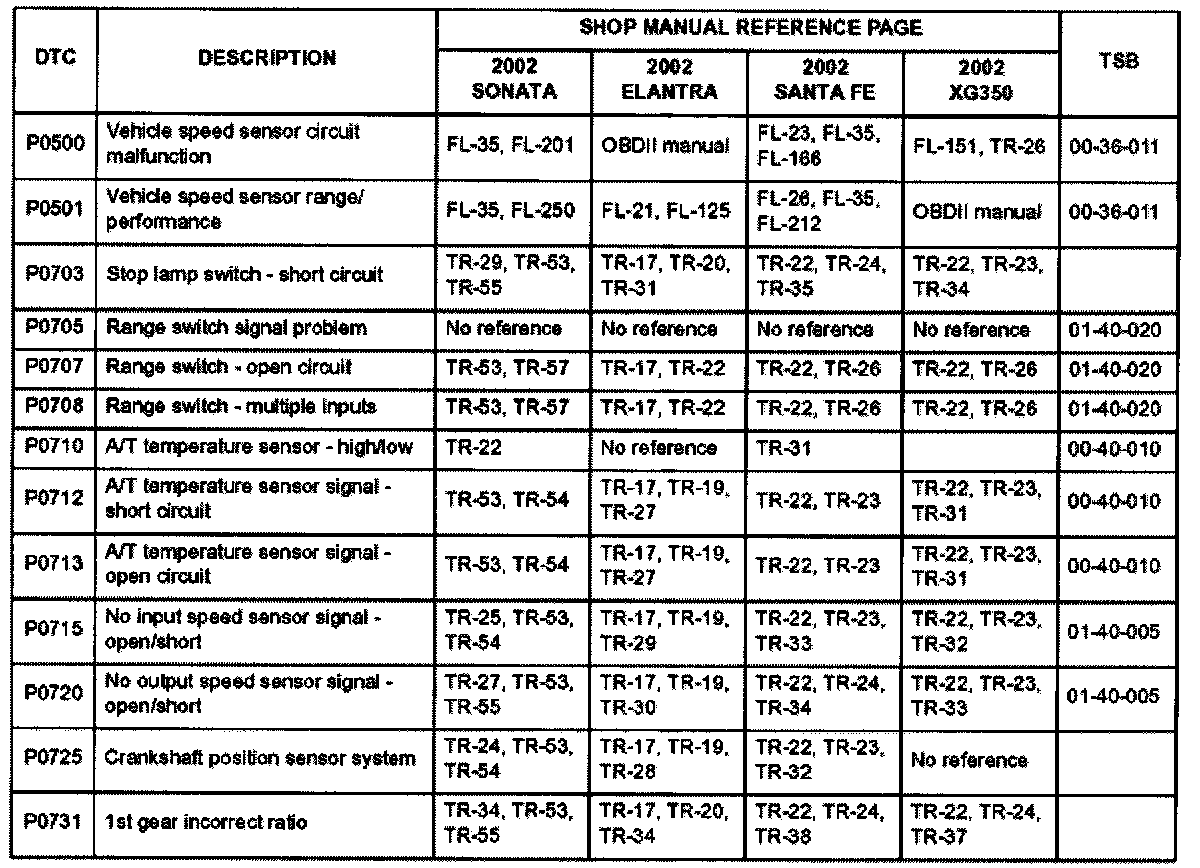

DTC information can be found in the shop manuals, TSBs and Engine Fault Code Diagnostic Manual (OBDII manual) shown.
