Connector Locations

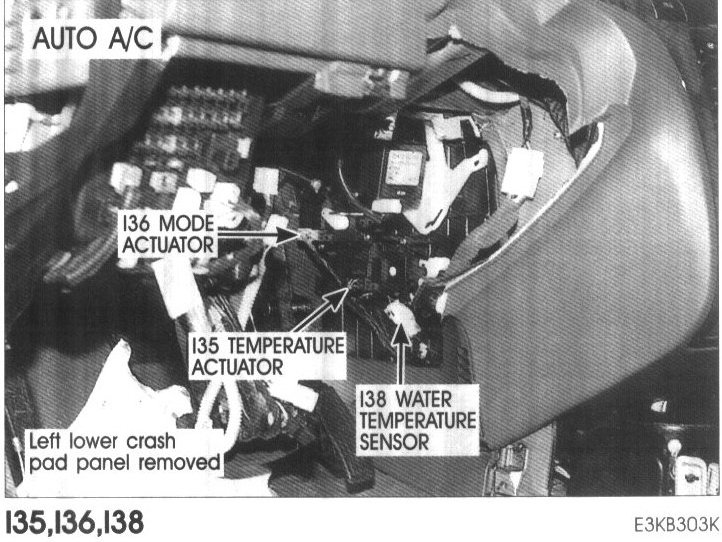

I35 Temperature Actuator, I36 Mode Actuator, I38 Water Temperature Sensor:

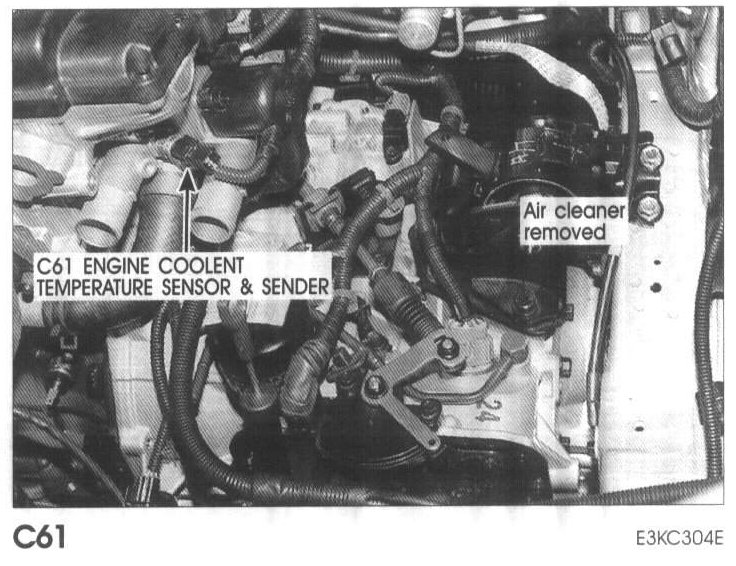

C61 Engine Coolant Temperature Sensor & Sender:
