Computers and Control Systems: Locations

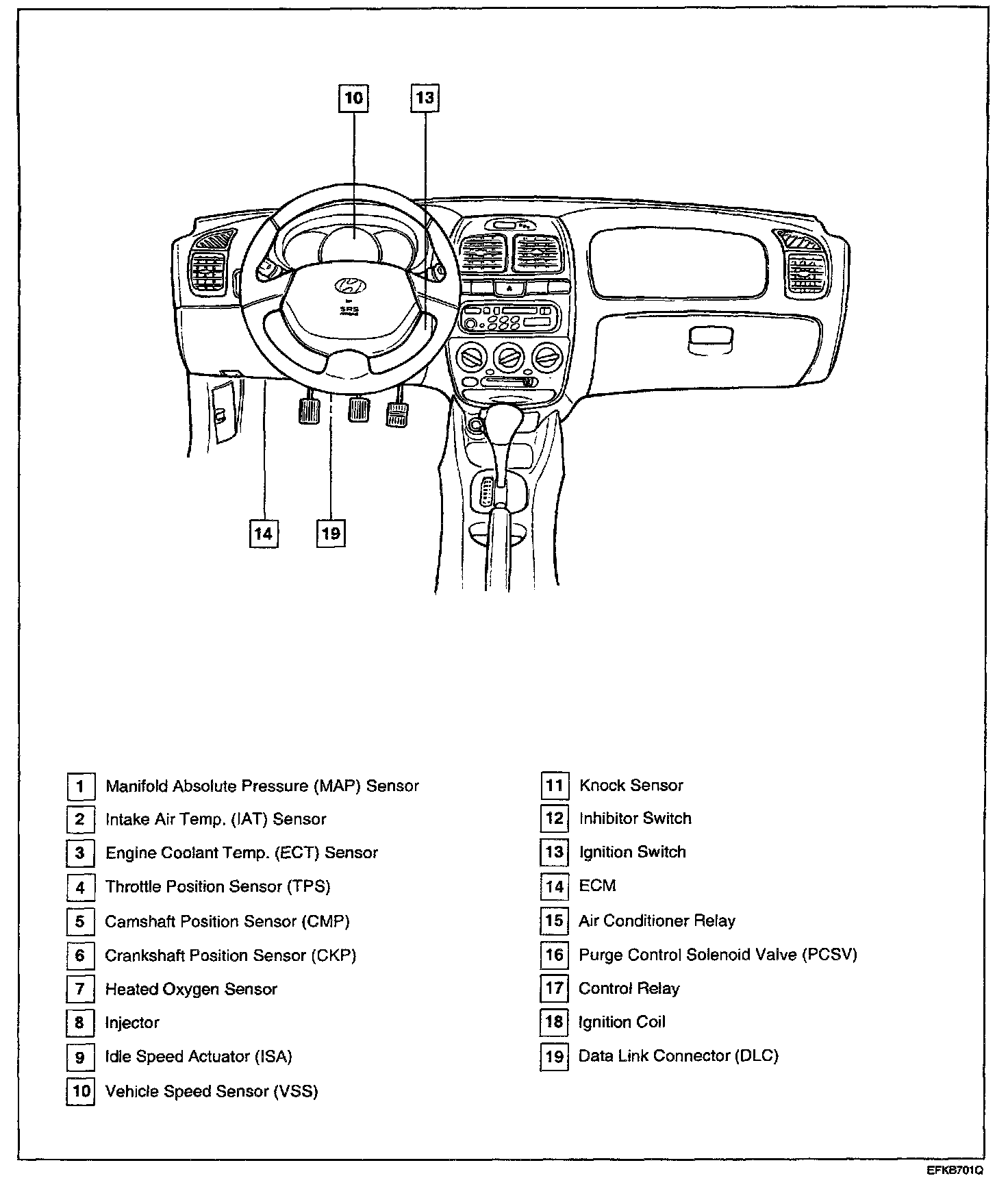

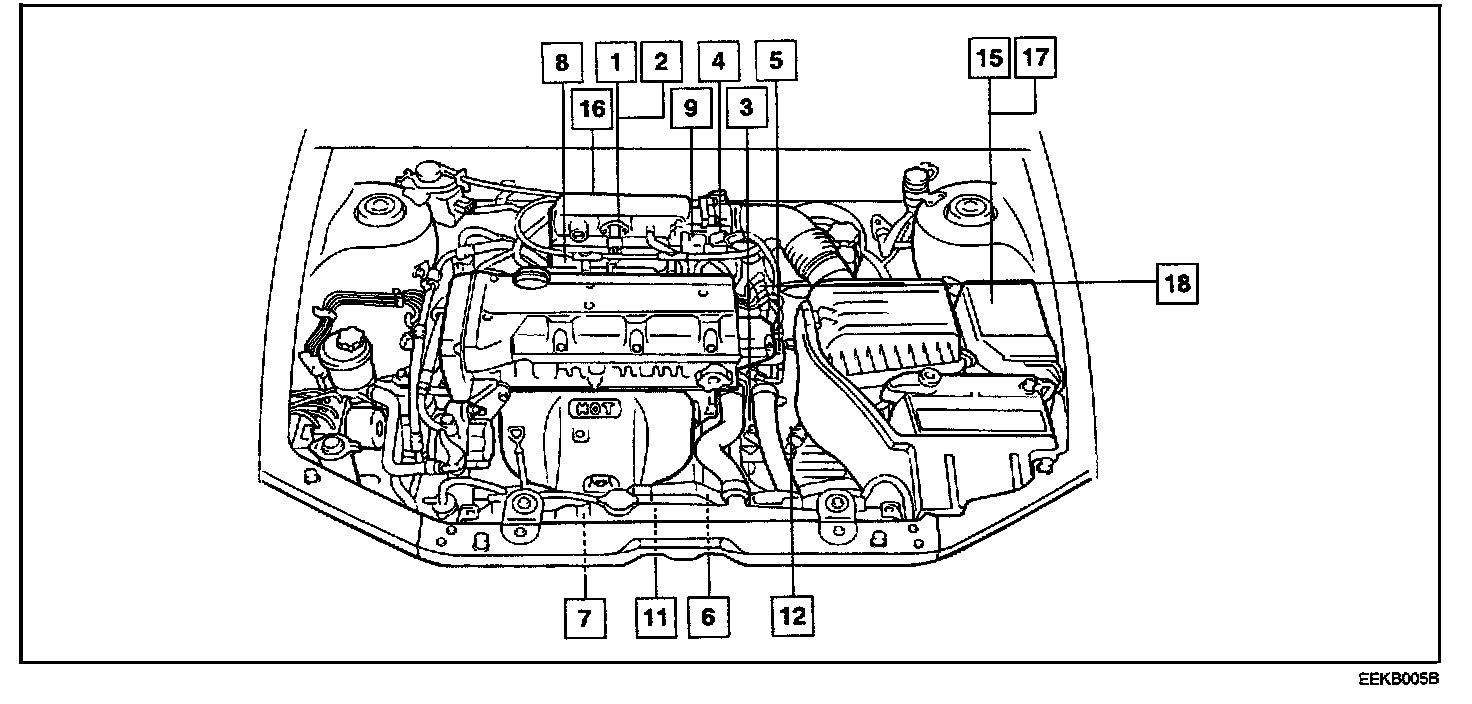

Emission Controls Location Part 1:

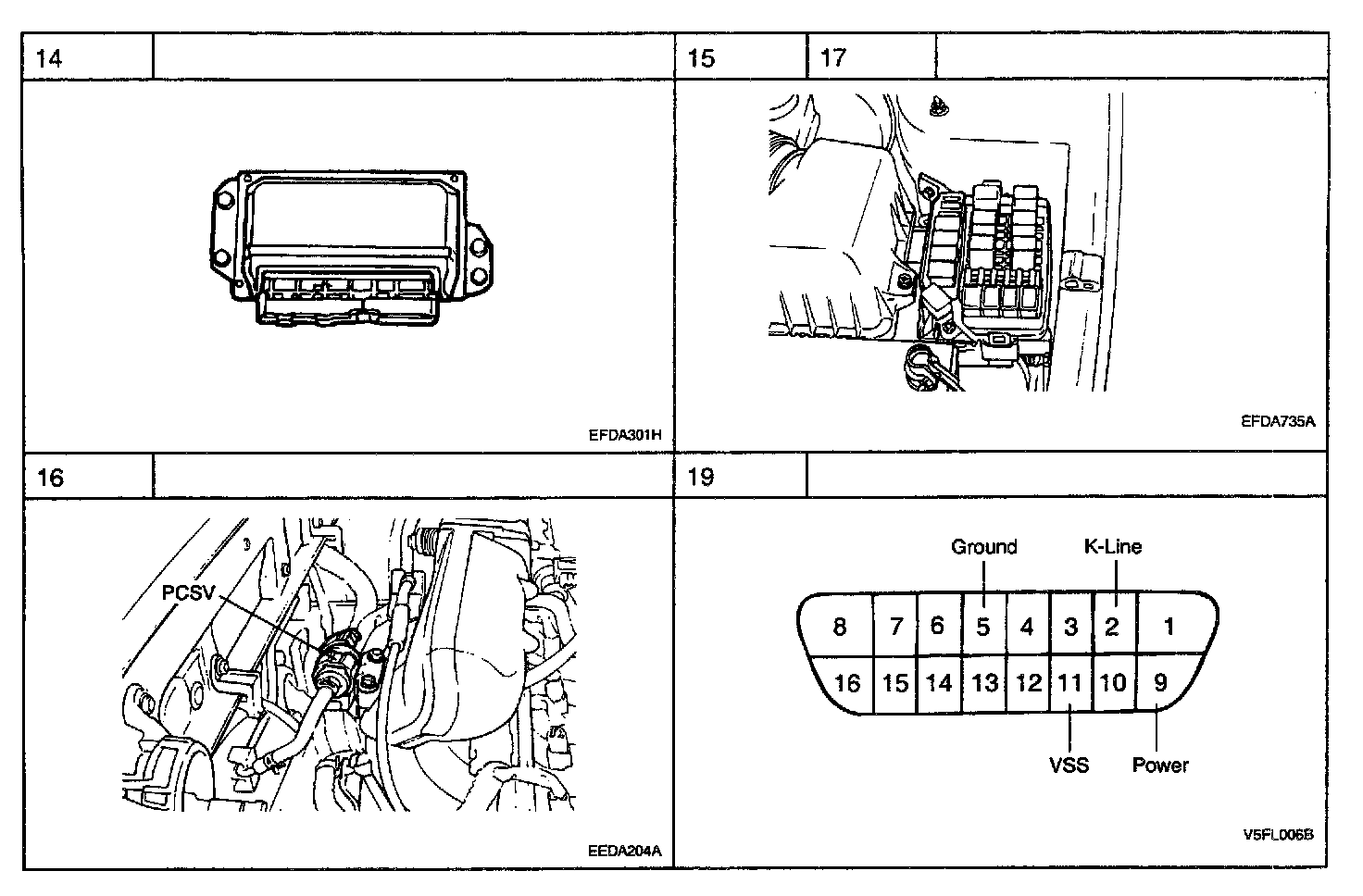

Emission Controls Location Part 2:











Image # 6 lacated at flywheel
