Fluid Filter - A/T: Service and Repair

OIL FILTER REPLACEMENT
2001 Hyundai Truck Santa Fe V6-2.7L DOHC MFI
Fluid Filter - A/T: Technical Service Bulletins A/T - External Filter Deletion
Group: TRANSAXLE Number: 01-40-007
Date: APRIL, 2001
Model: 2001 ELANTRA, SONATA, SANTA FE & XG300
Subject:
2001 ELANTRA, SONATA, SANTA FE AND XG300 AUTOMATIC TRANSAXLE EXTERNAL OIL FILTER DELETED

DESCRIPTION:

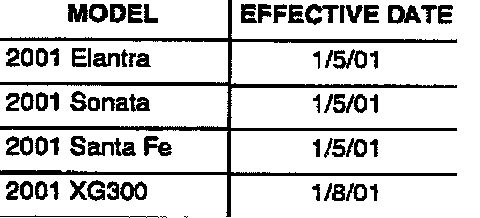

Hyundai has deleted the external oil filter (P/N 46322-39000) on all Elantra, Sonata, Santa Fe and XG300 transaxies effective with the production dates listed below. These transaxies are equipped with an internal oil filter that needs to be changed only during transaxle overhaul.
