Rear Combination Lamp
Rear Combination Lamp
REAR COMBINATION LAMP
1.
Disconnect the negative (-) battery terminal.
2.

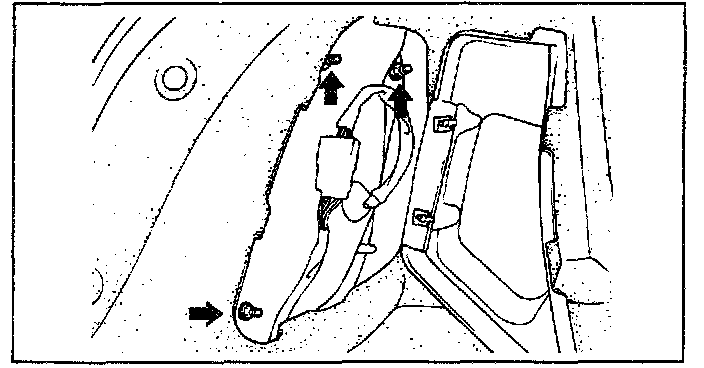

Remove the nuts holding the rear combination lamp.
3.
Disconnect the connector and remove the lamp assembly.
4.
Installation is the reverse of removal.
