Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Turn Signal Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

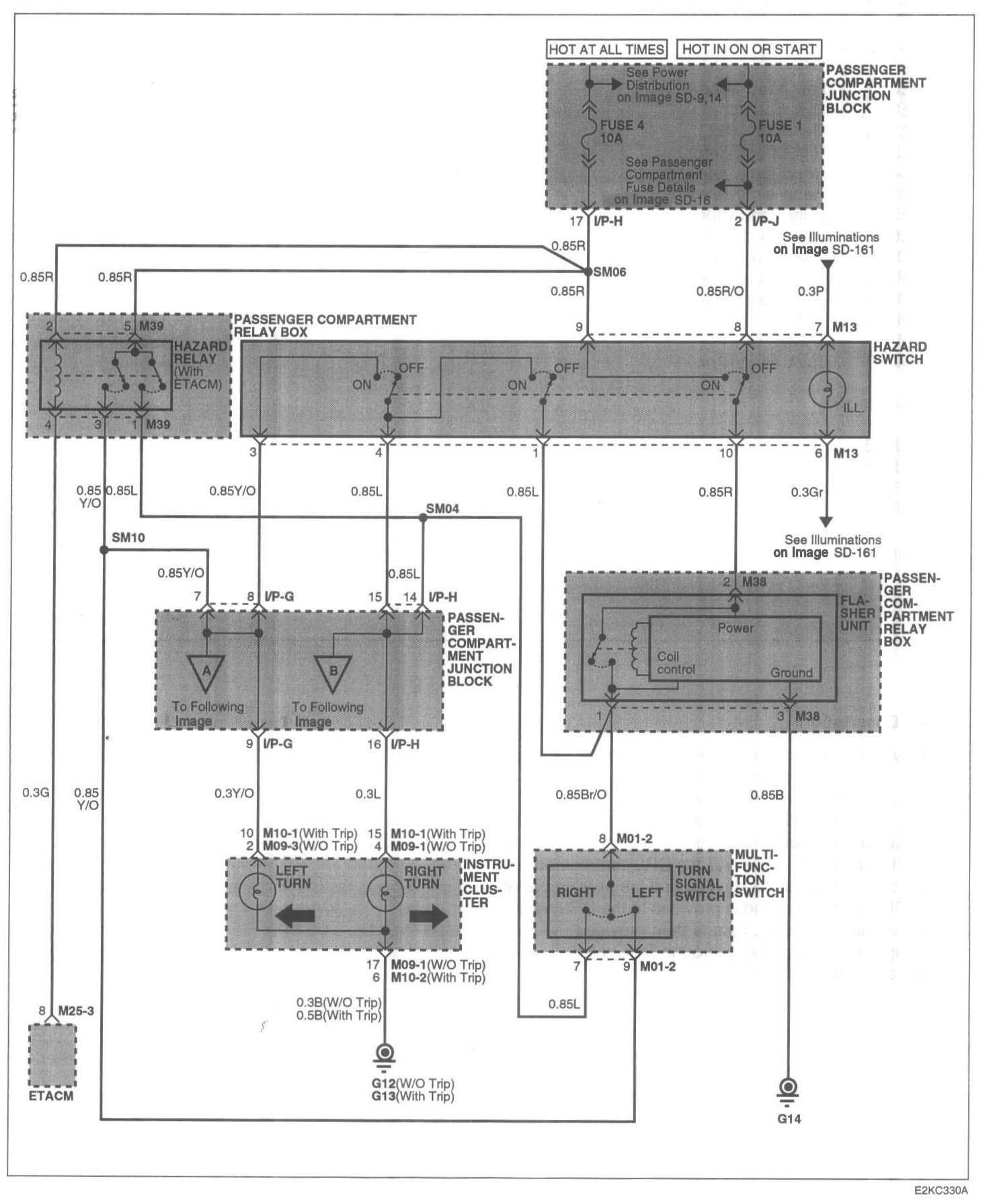

Image SD-138 Turn And Hazard Lamps (1):



Image SD-139 Turn And Hazard Lamps (2):
