Trunk Lamp: Service and Repair

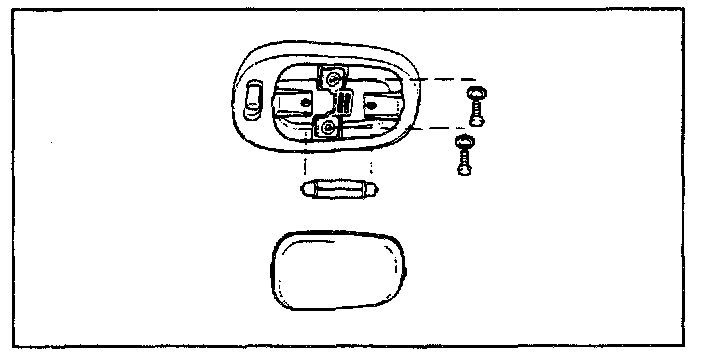

ROOM LAMP
1. Disconnect the negative (-) battery terminal.
2. Using a flat-bladed screwdriver, detach the room lamp lens.
3. Detach the lamp assembly from the headliner after removing the screws.
4. Disconnect the connector from the roof harness.
5. Installation is the reverse of removal.
