Trunk Lamp Switch: Testing and Inspection

LUGGAGE ROOM LAMP SWITCH
1. Disconnect the negative (-) battery terminal.




2. After opening the trunk, disconnect the connector from the rear harness.




3. Check for continuity between the terminal and body while pushing the rod.

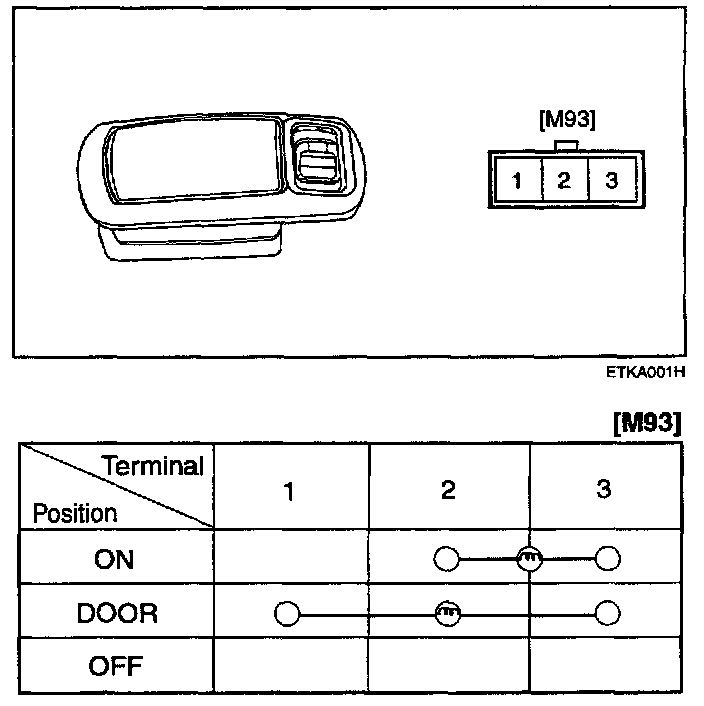

ROOM LAMP SWITCH
1. Disconnect the negative (-) battery terminal.
2. Disconnect the connector from the room lamp switch and then check for continuity between the terminals.
