Map Light: Testing and Inspection

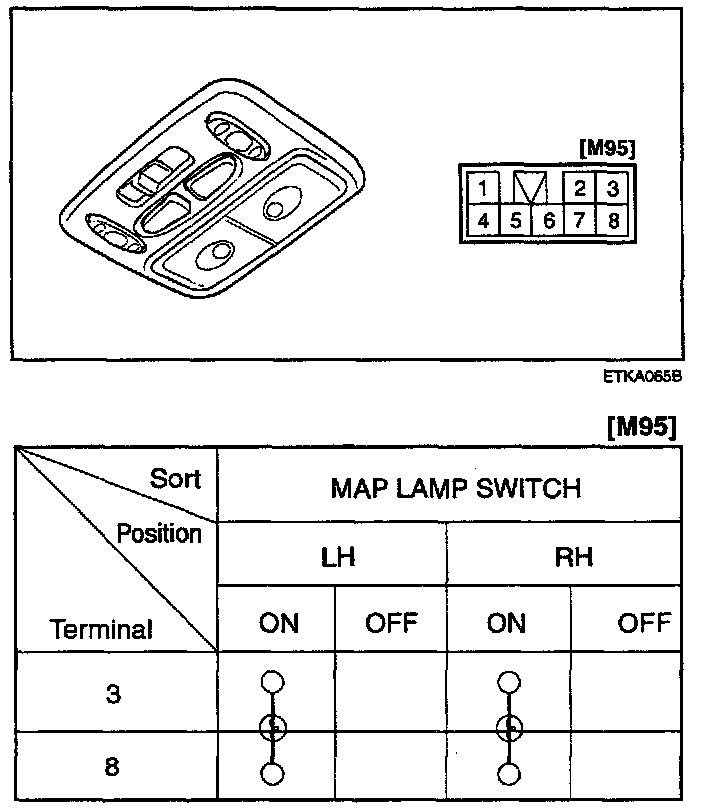

With Sun Roof:

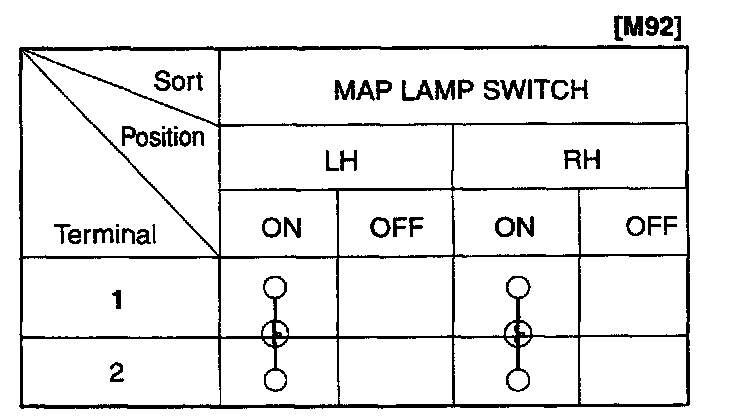

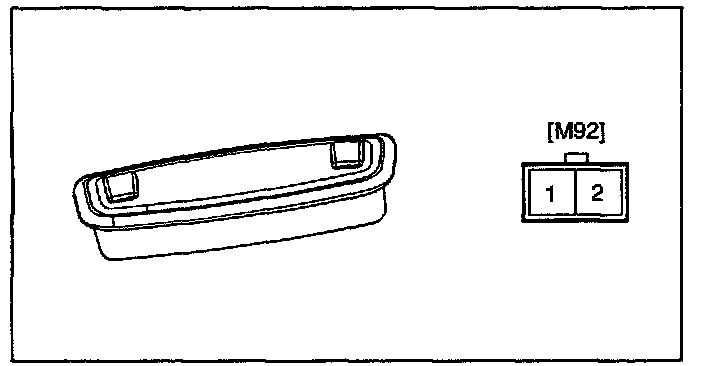

Without Sun Roof:

MAP LAMP SWITCH
1. Disconnect the negative (-) battery terminal.
2. Remove the overhead console.
3. Disconnect the connector from the map lamp switch and then check for continuity between the terminals.
