Daytime Running Lamp: Testing and Inspection

DAYTIME RUNNING LIGHT (DRL)

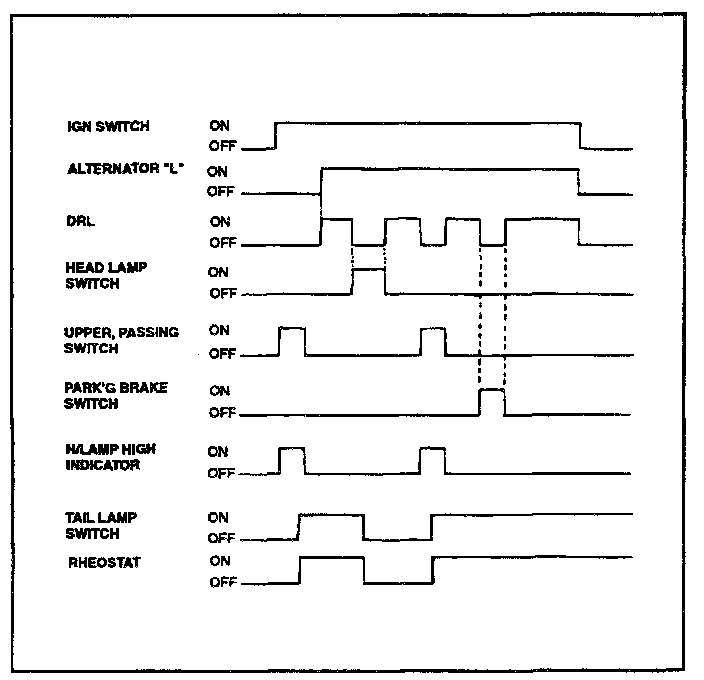

Timing Chart:

OPERATION CHECK
Check that the lights operate according to the timing chart.

If the circuit is not as specified, refer to the schematic diagram and inspect for short circuits.

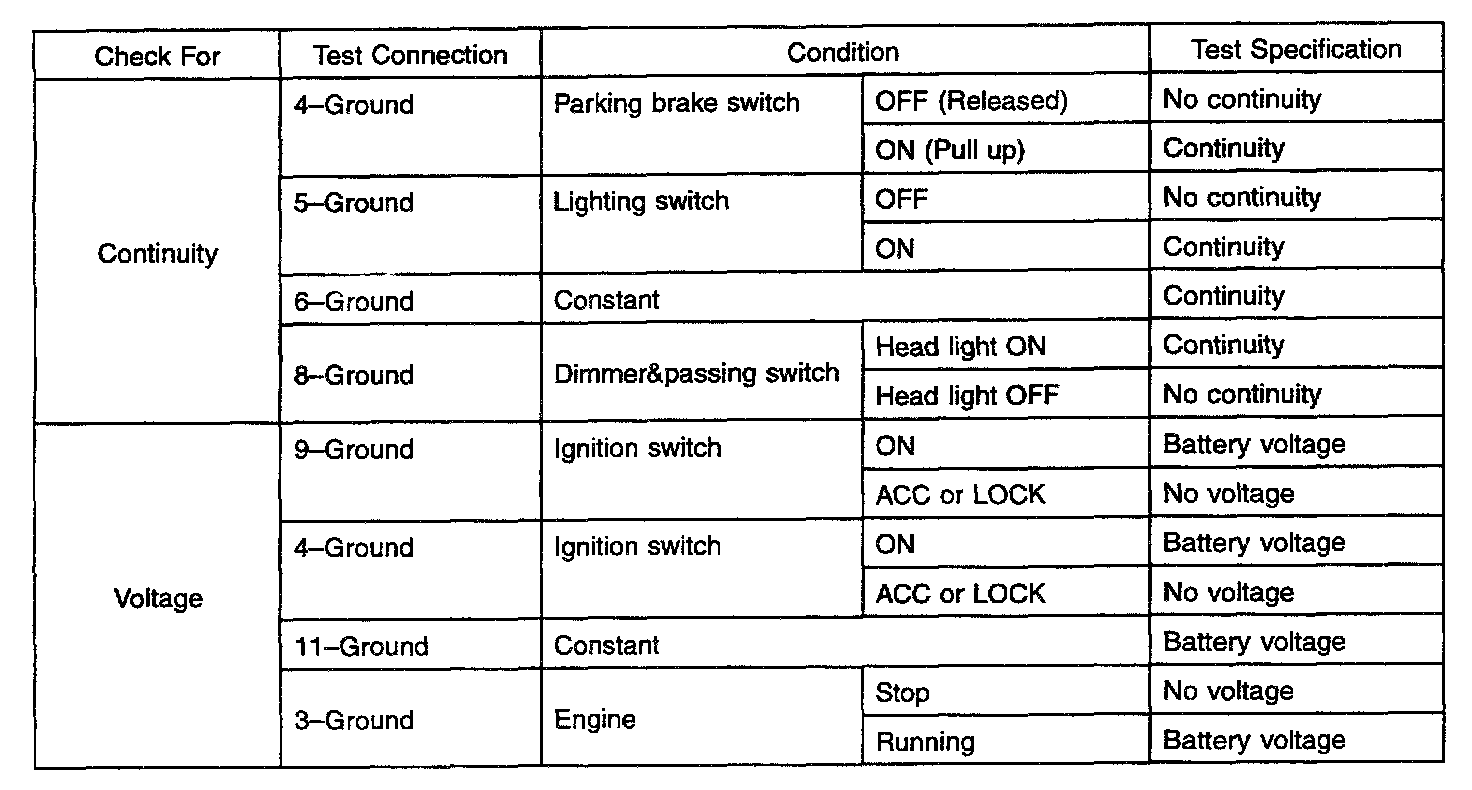

INSPECT CIRCUITS FOR DAYTIME RUNNING LIGHT SYSTEM

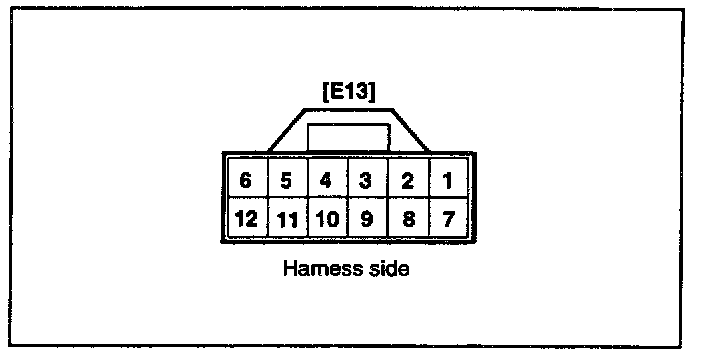

Disconnect the connector from the DRL module and inspect the connector on the wire harness side as shown.
