Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

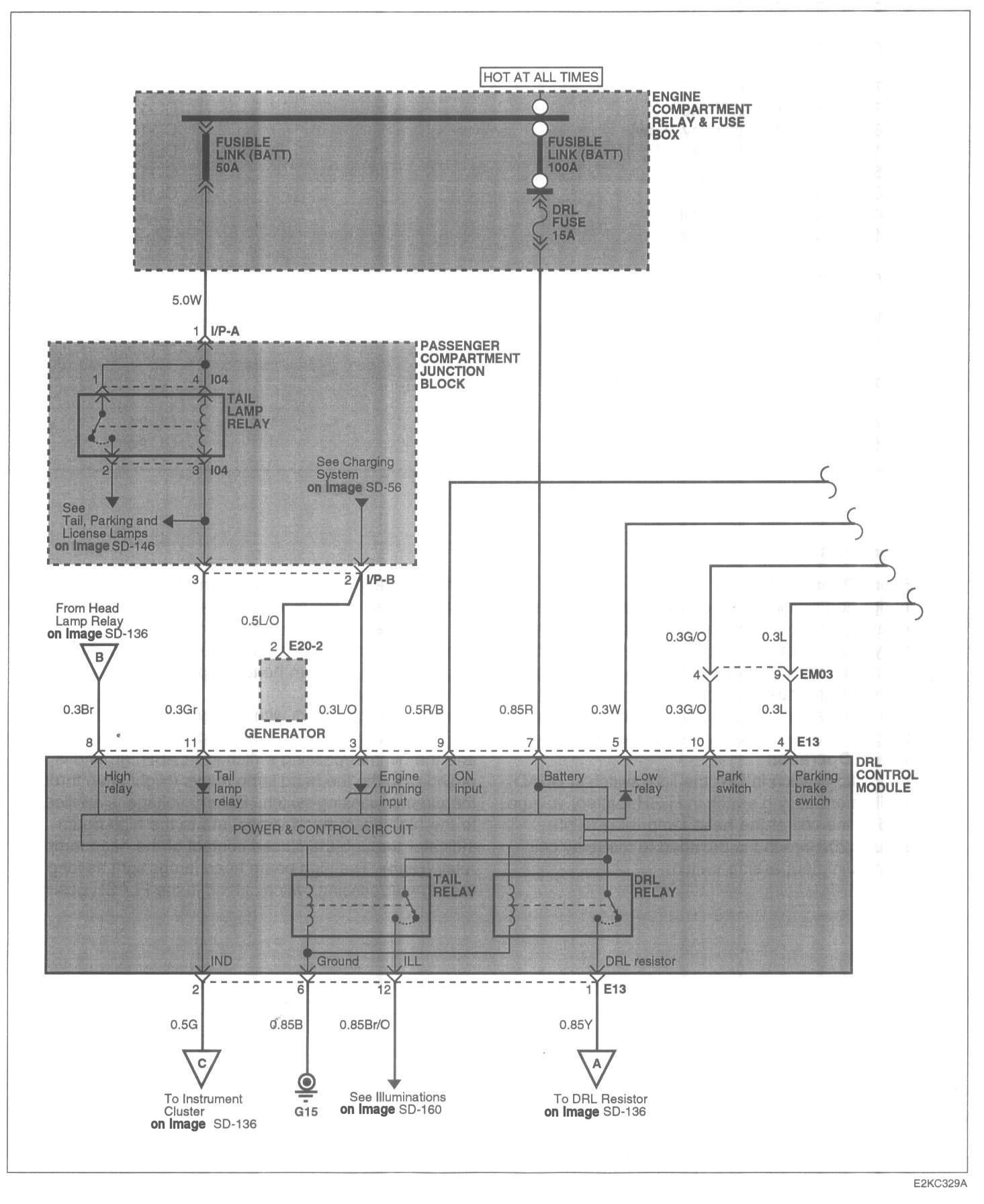

Image SD-134 Daytime Running Lights (1):

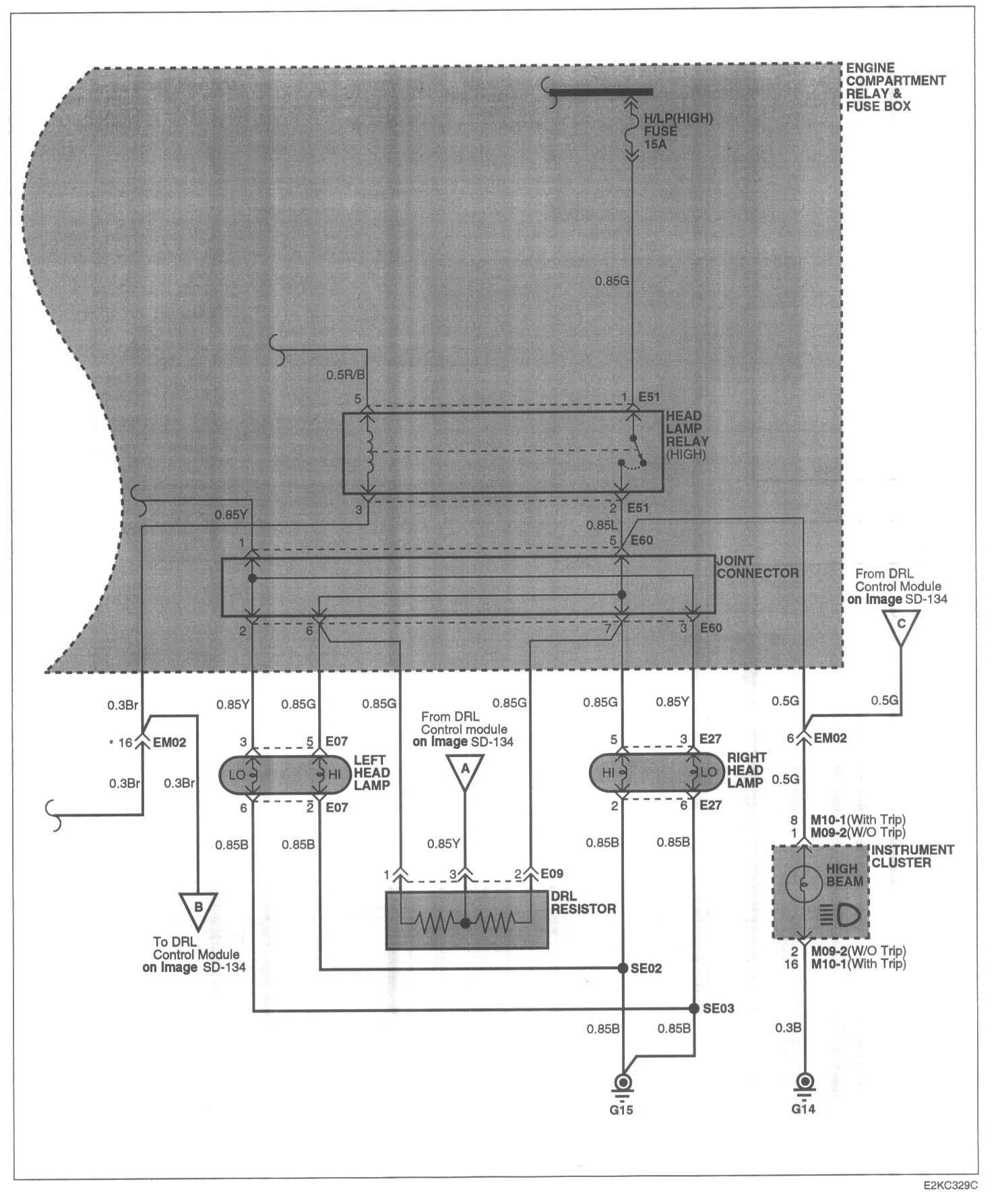

Image SD-135 Daytime Running Lights (2):

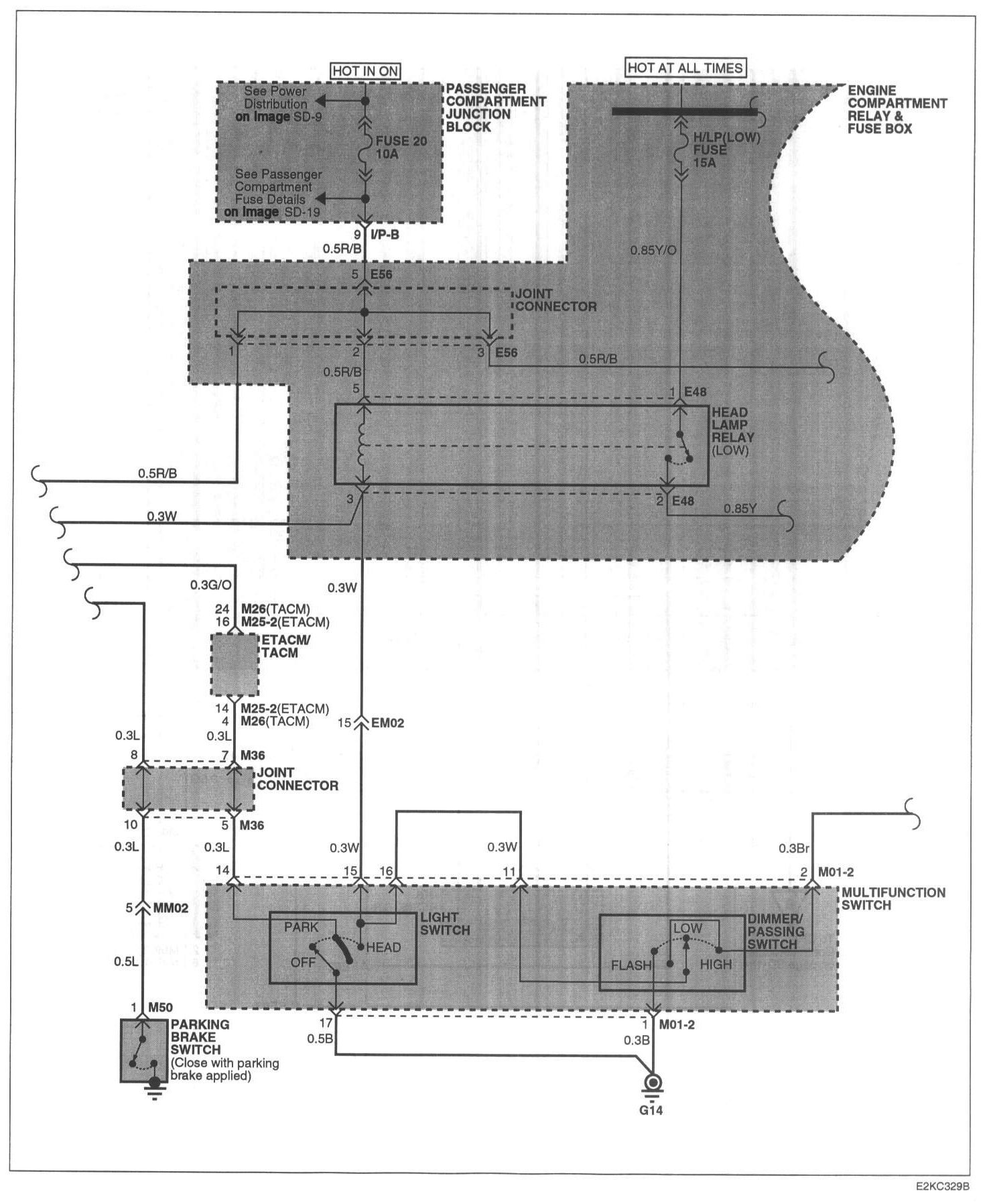

Image SD-136 Daytime Running Lights (3):
