Fuel Gauge: Testing and Inspection

FUEL GAUGE




OPERATION CHECK
1. Disconnect the fuel sender connector from the fuel sender.
2. Connect a 3.4 watt, 12 V test bulb to terminals 1 and 3 on the wire harness side connector.
3. Turn the ignition switch to "ON", and then check that the bulb lights up and the fuel gauge needle moves to full.







RESISTANCE CHECK
1. Remove the instrument cluster.

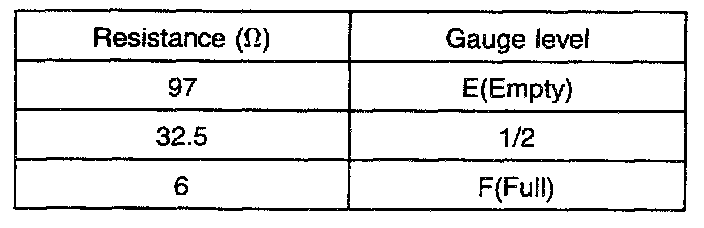

2. Measure the resistance between terminal 11 (M09-1) and terminal 13 (M09-1).
