System Control Features

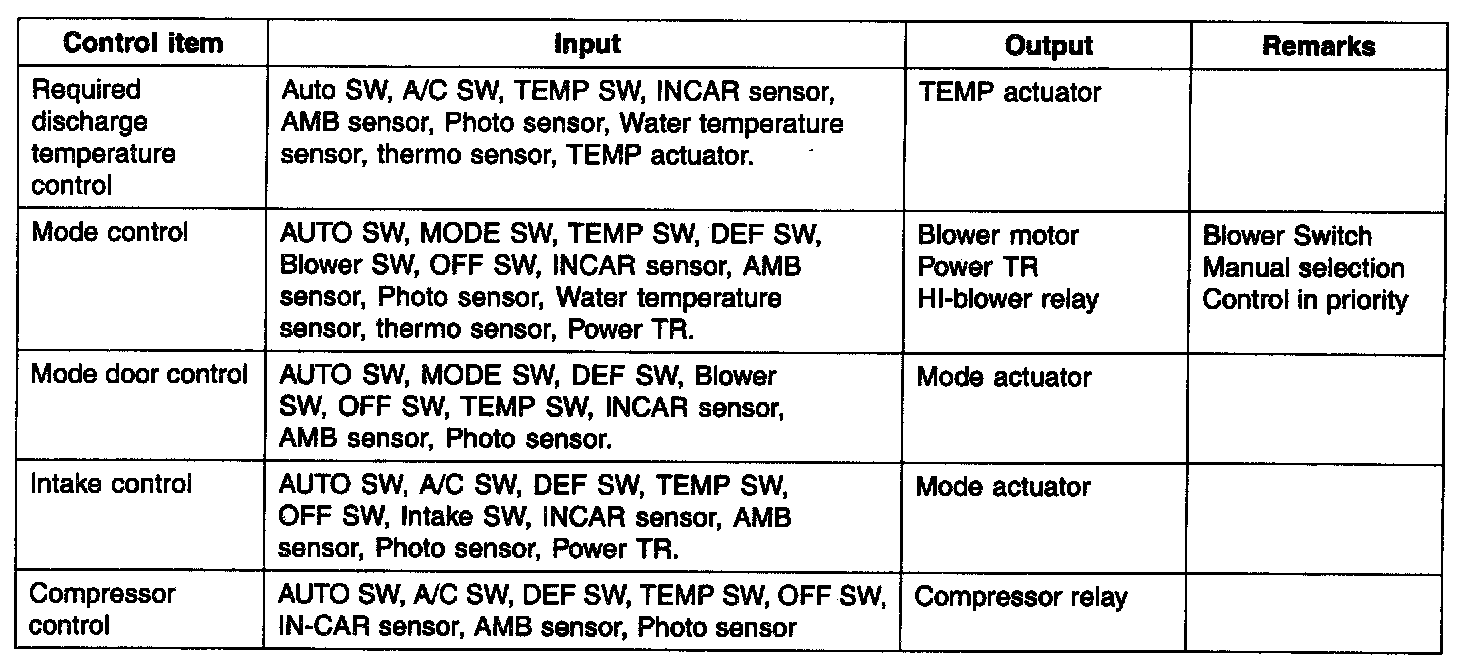

Signal I/O For Each Control Feature:
SIGNAL I/O FOR EACH CONTROL FEATURE
- During mode control, the A/C may operate during DEF or MIX mode. In order to enable dehumidification, the driver may select A/C OFF during the A/C on condition.

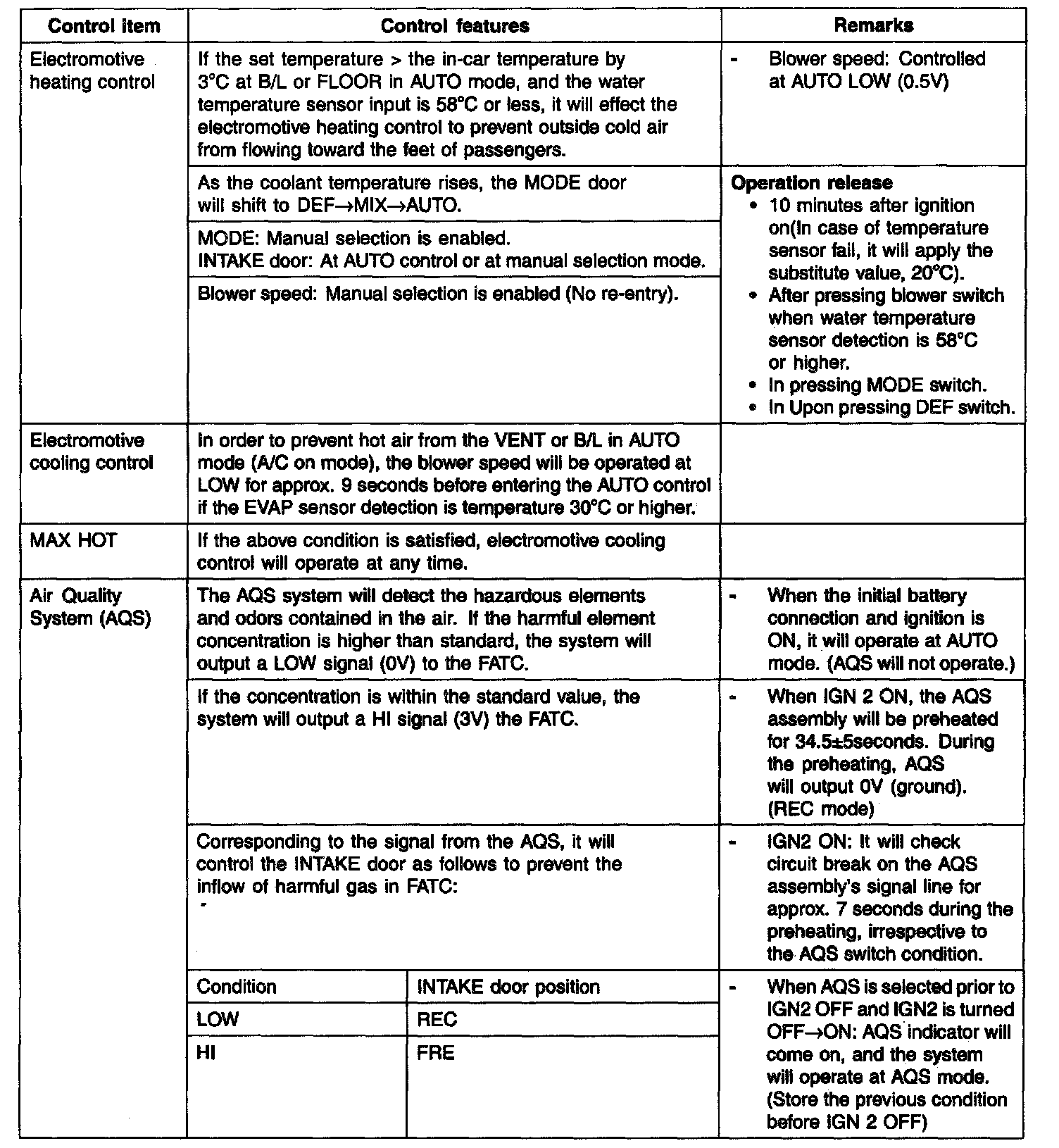

Control Specification Part 1:

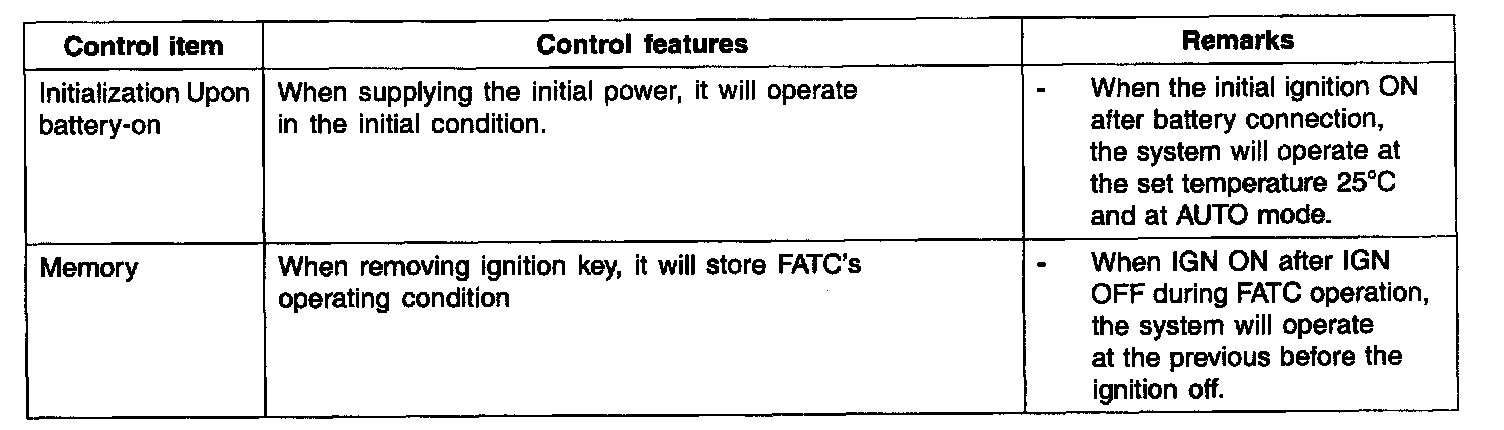

Control Specification Part 2:

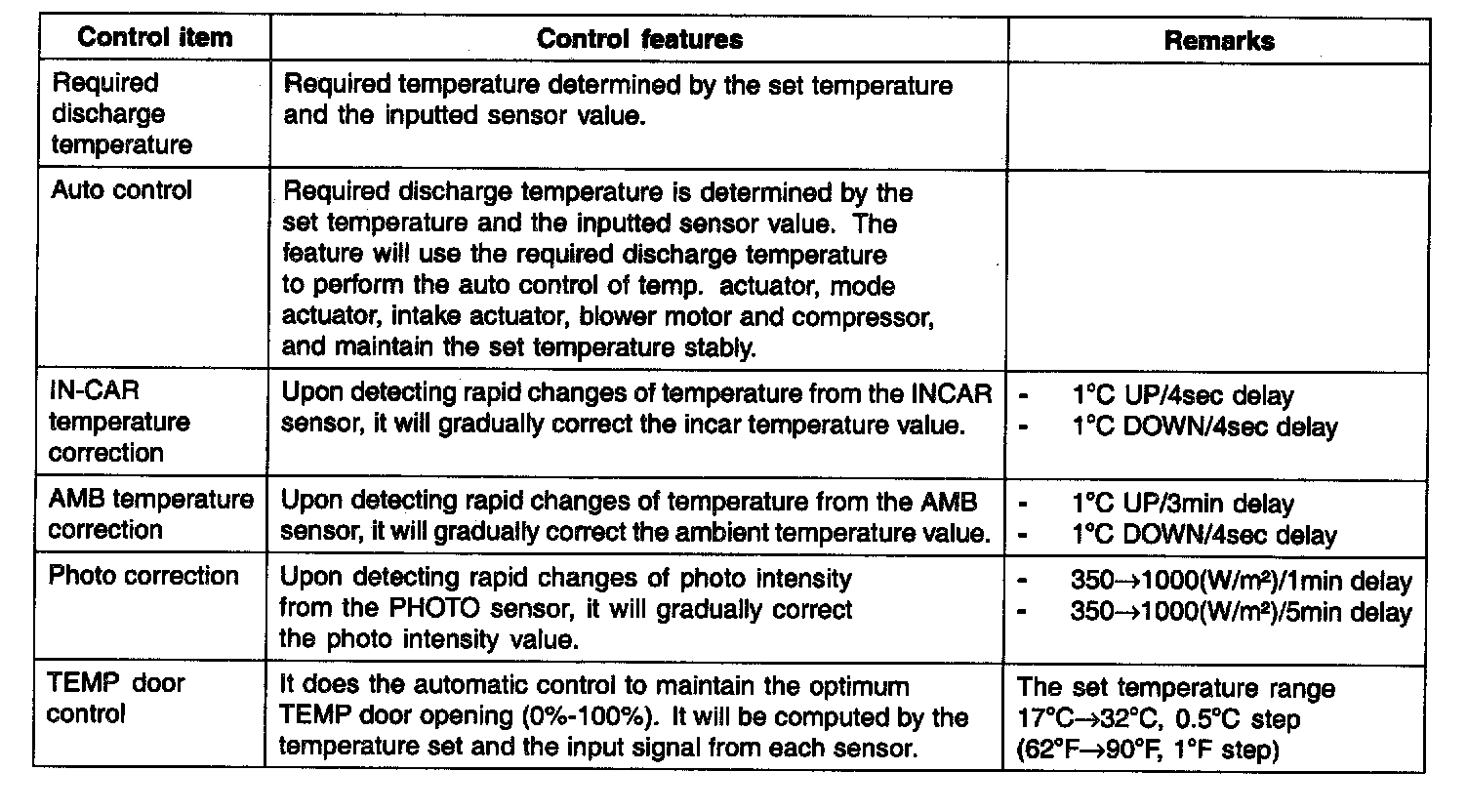

Control Specification Part 3:

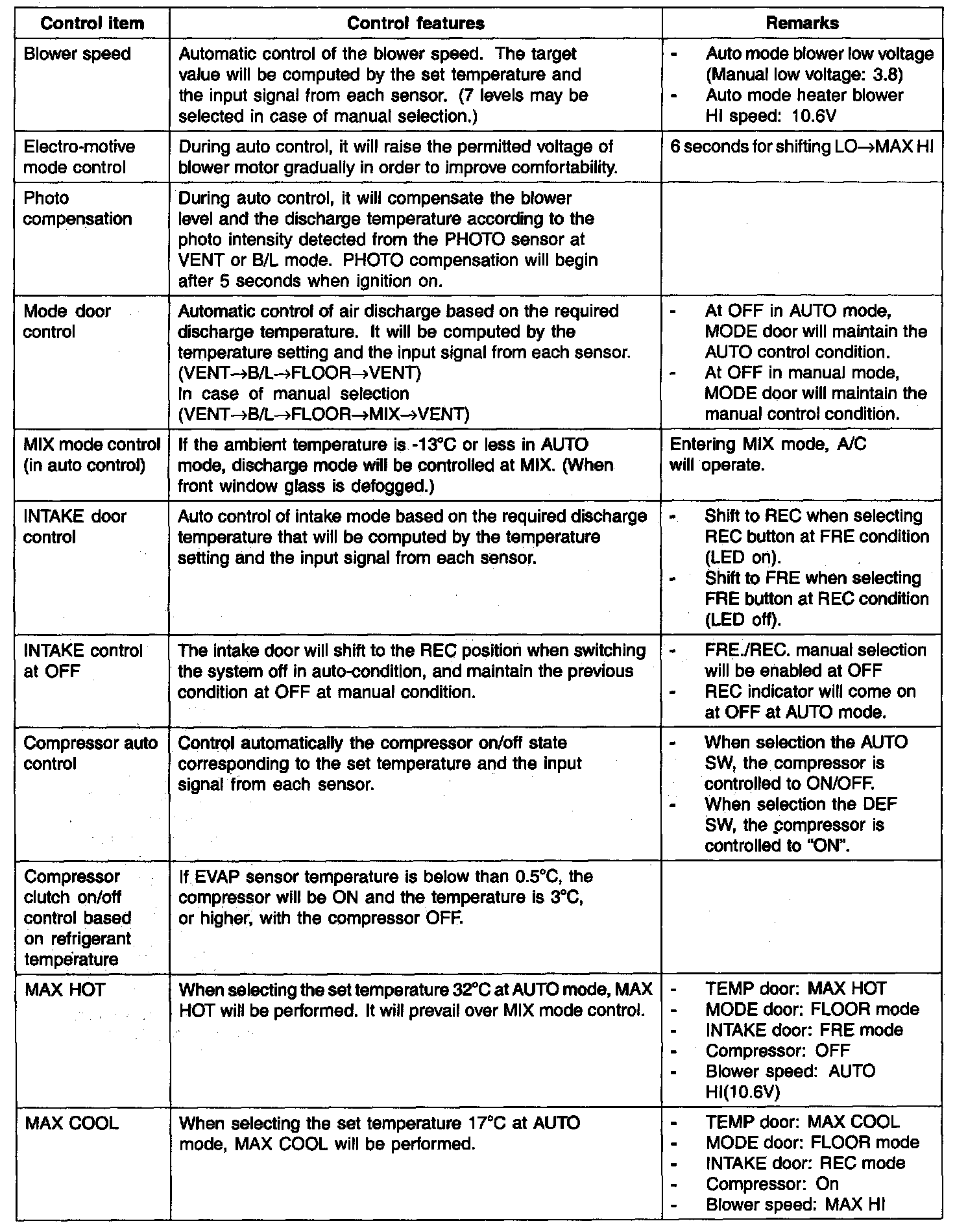

Control Specification Part 4:
