Canada - Engine - Camshaft Timing Chain Timing Procedure

GROUP
ENGINE MECHANICAL

NO.
02-20-009

DATE
OCTOBER 04/02

MODEL
2001-2002 ELANTRA,
2003 TIBURON I-4

SUBJECT

CAMSHAFT TIMING CHAIN TIMING PROCEDURE
SHOP MANUAL CORRECTION

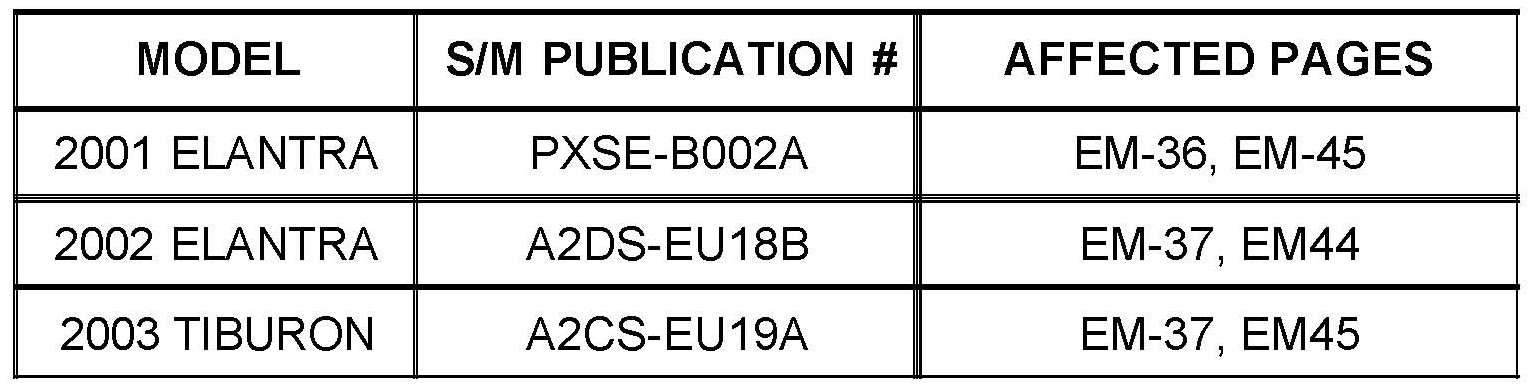

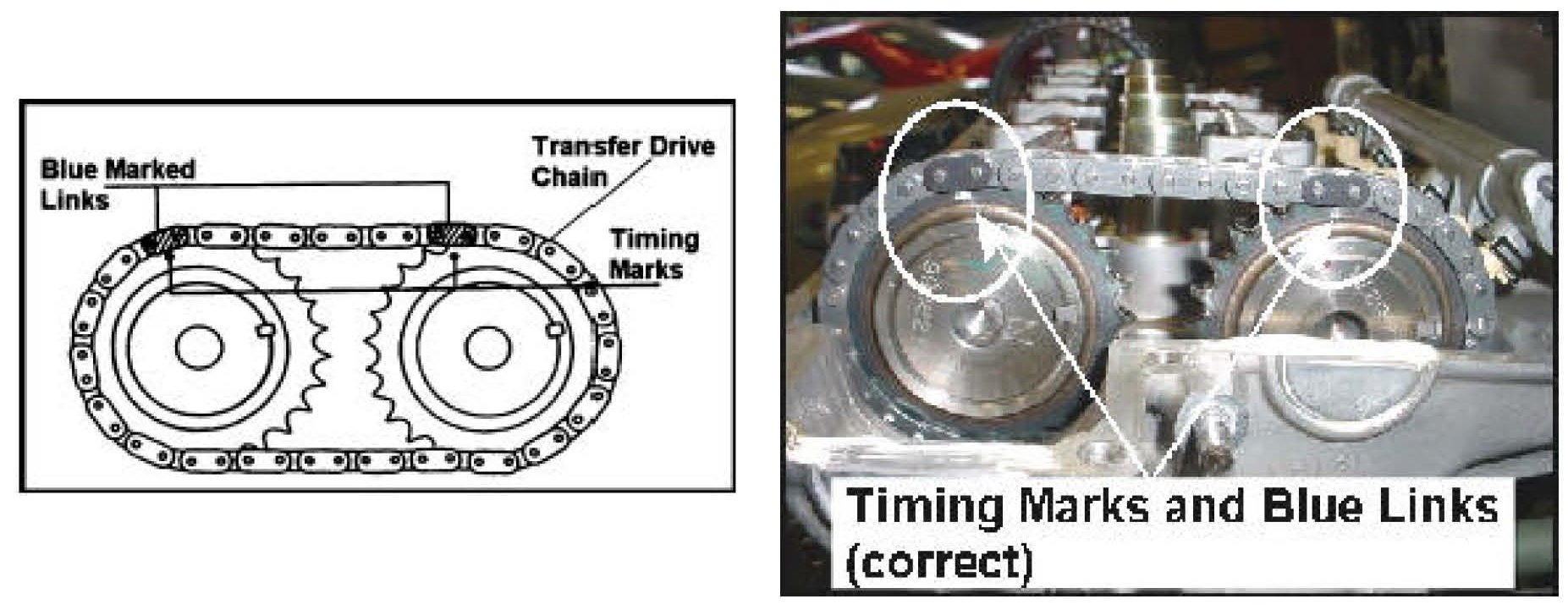

This TSB provides Shop Manual corrections for the 2001-2002 Elantra and the 2003 Tiburon 2.0L Shop Manuals. The diagrams in the manual show the timing mark on the left sprocket lining up with the end of the blue marked link, while the right sprocket mark lines up with the middle of the blue link. Instead the timing marks on both sprockets should line up with the middle of the blue marked link.





Please mark this TSB number on the appropriate pages of your Shop Manuals.
