Home >> Hyundai >> 2002 >> Elantra GT Hatchback L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Control Module HVAC >> Automatic

Automatic

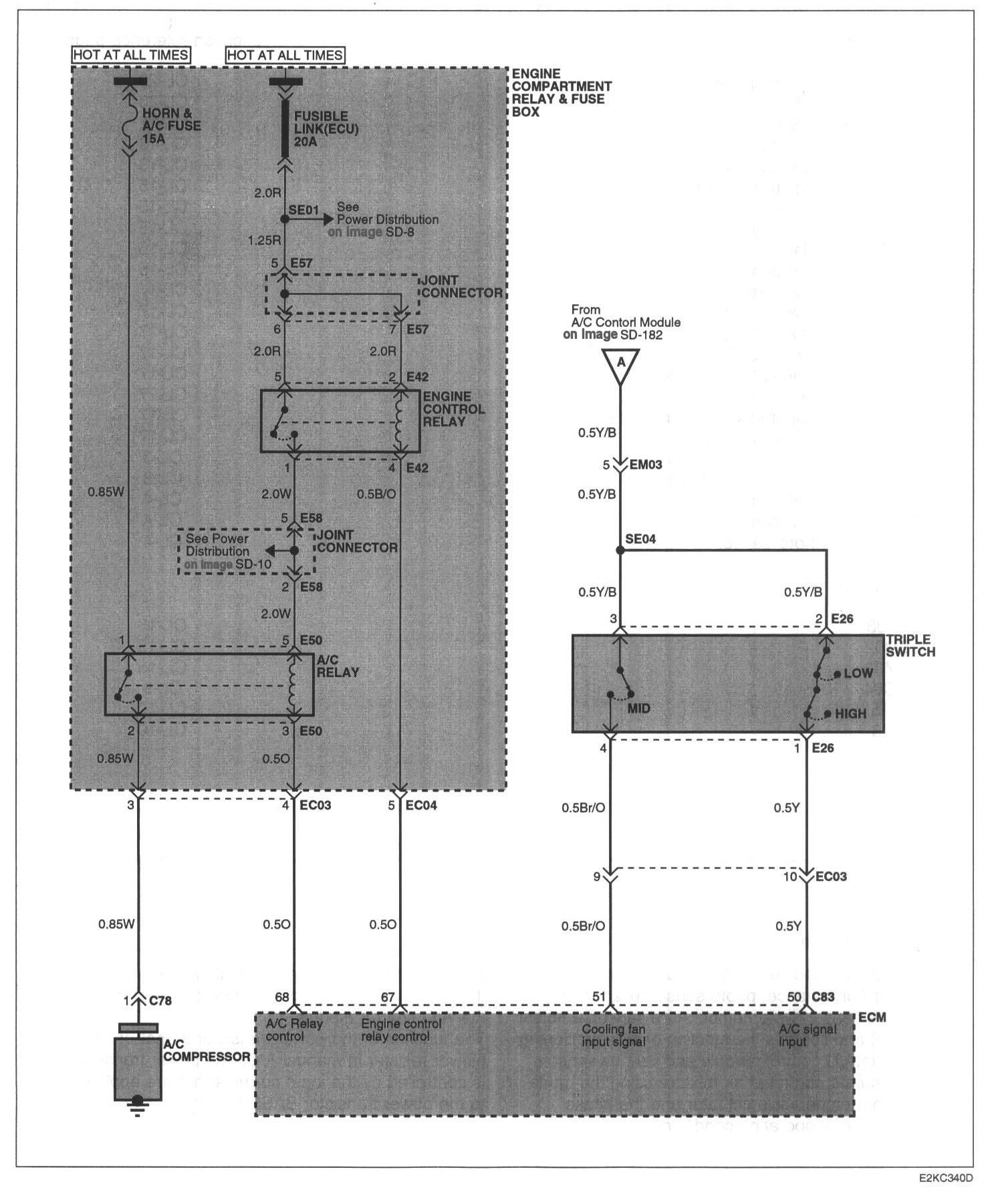

Image SD-180 Blower And A/C Controls (Automatic) (1):

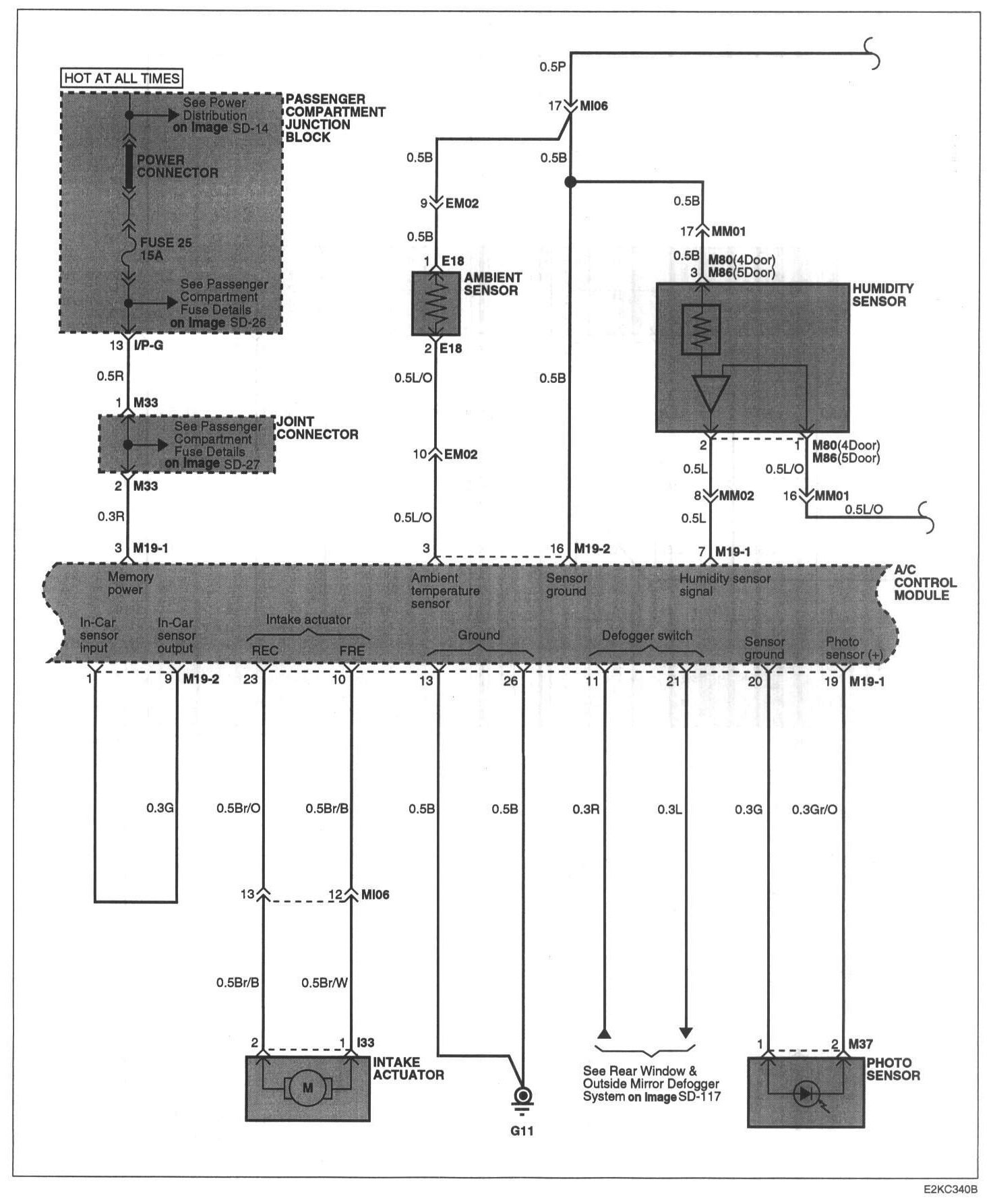

Image SD-181 Blower And A/C Controls (Automatic) (2):

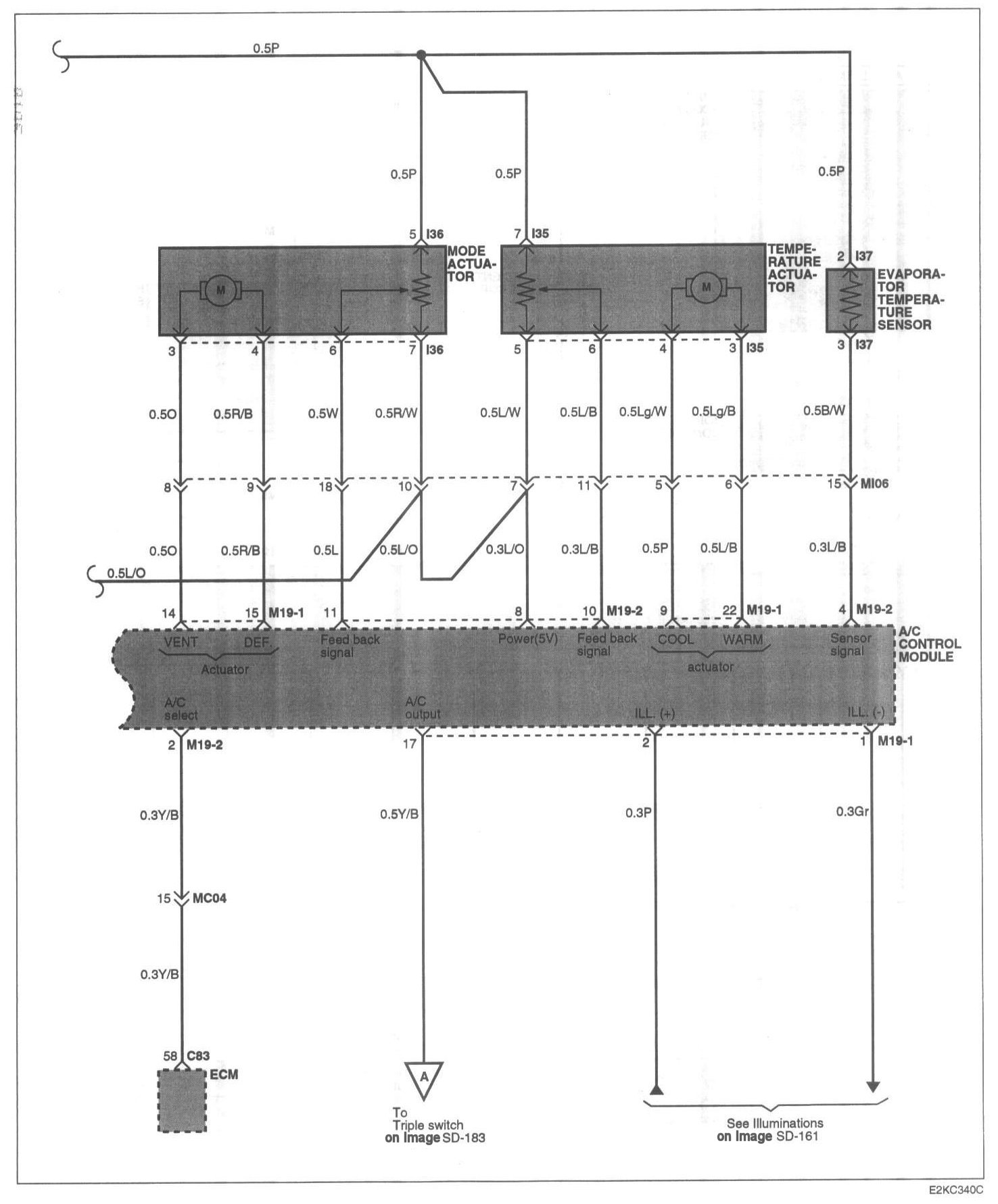

Image SD-182 Blower And A/C Controls (Automatic) (3):

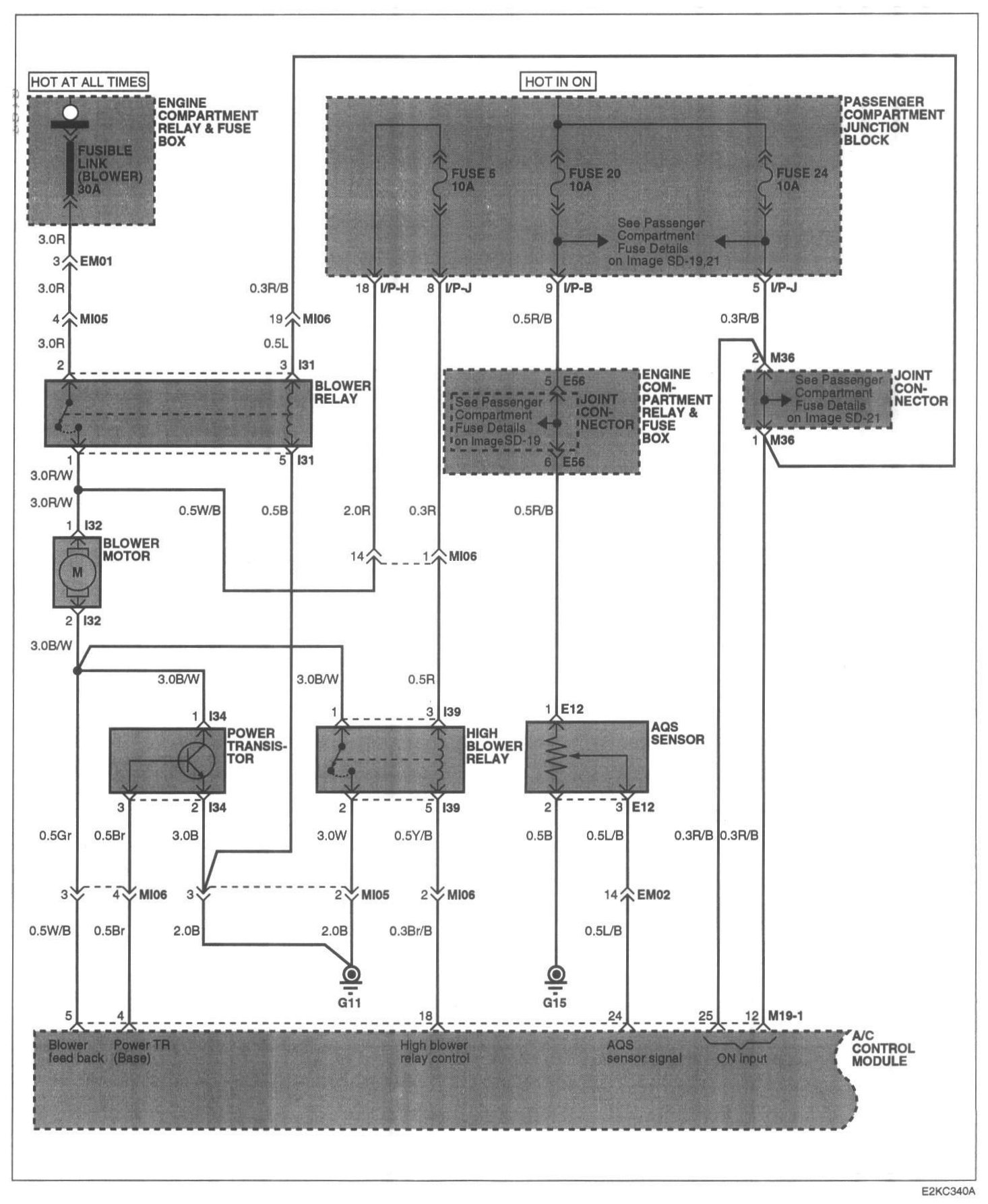

Image SD-183 Blower And A/C Controls (Automatic) (4):
