TACS (Time & Alarm Control System)
TACS (Time & Alarm Control System)

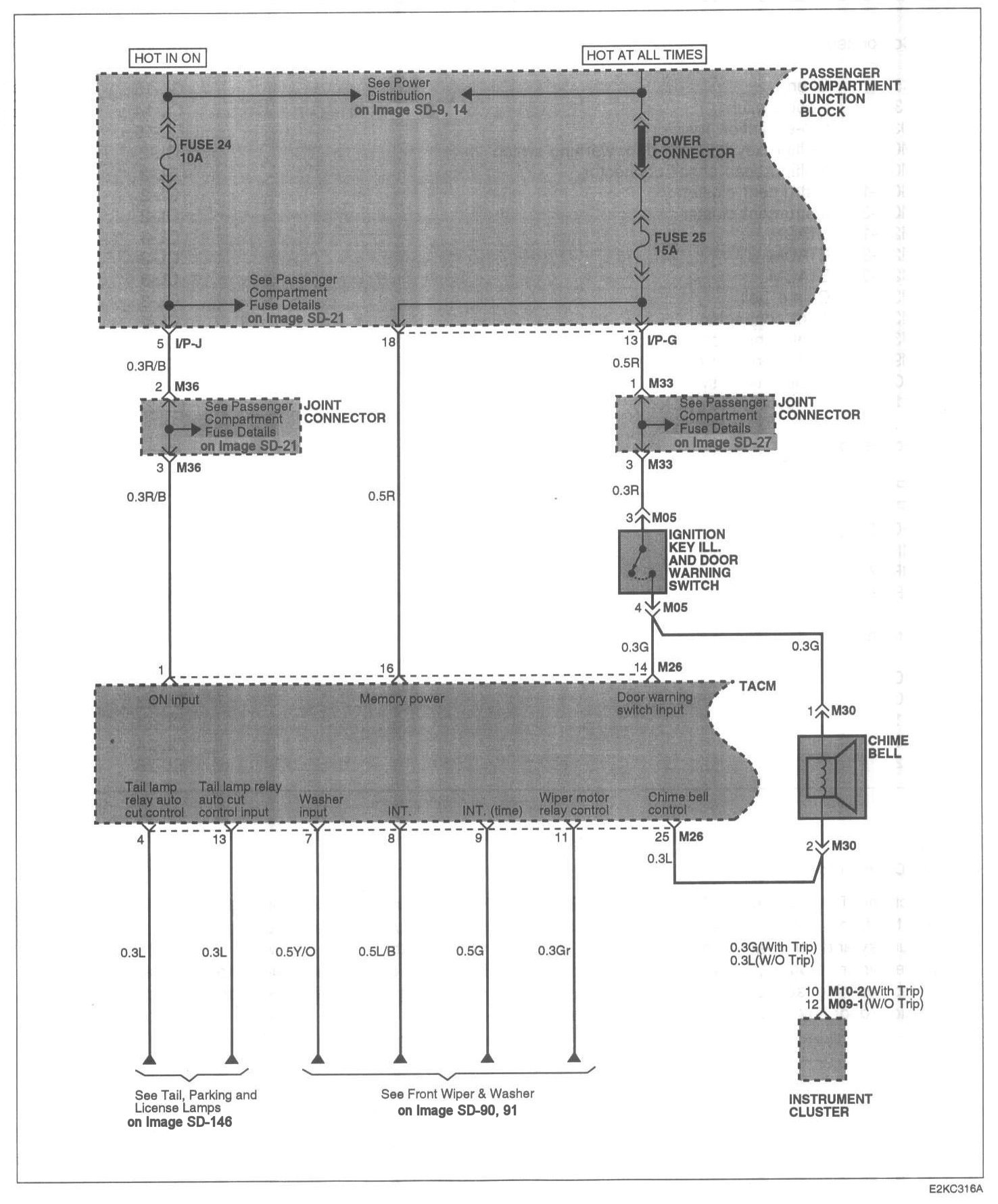

Image SD-86 TACS (Time & Alarm Control System) (1):

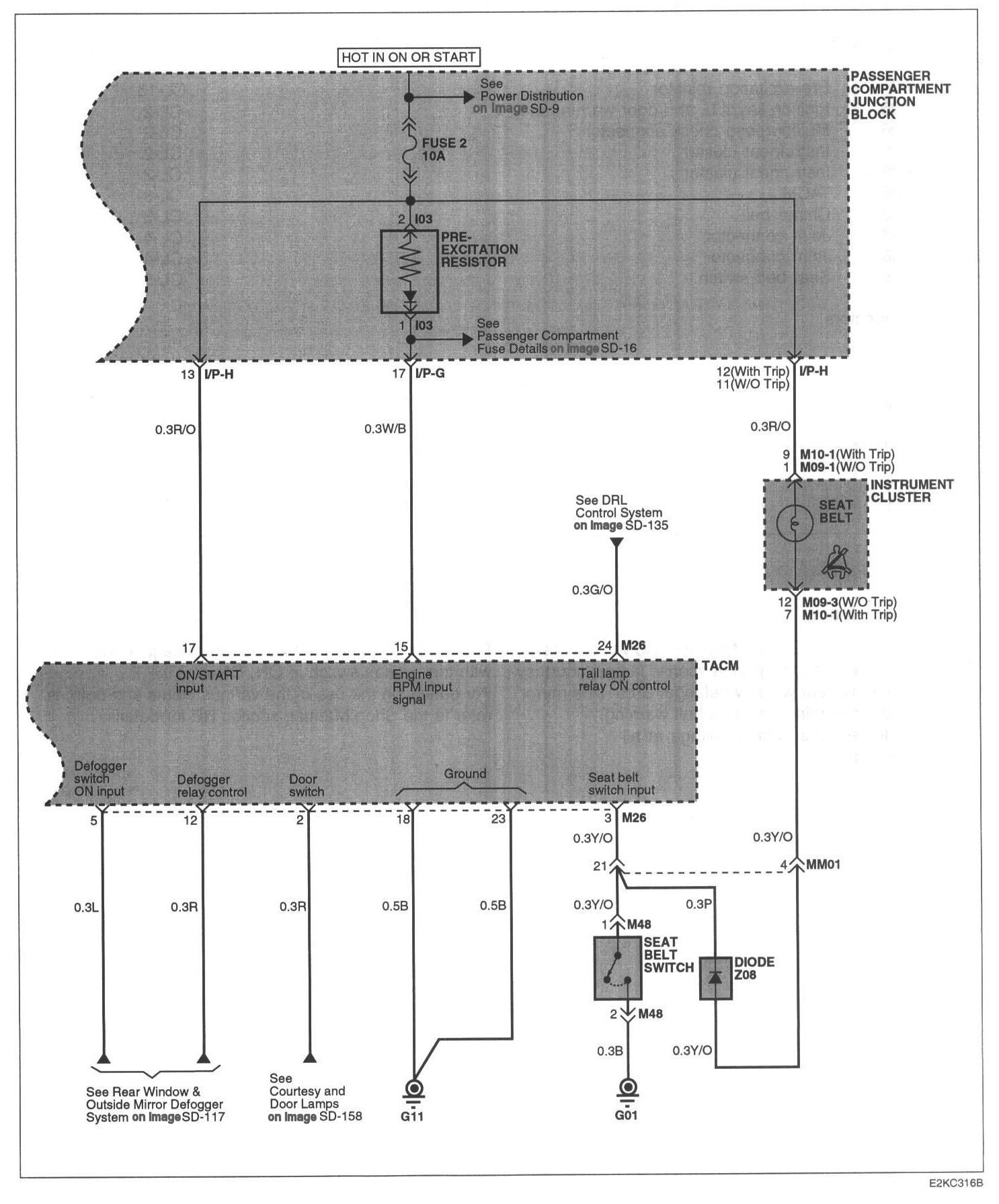

Image SD-87 TACS (Time & Alarm Control System) (2):
